Wipers Not Working/High Speed

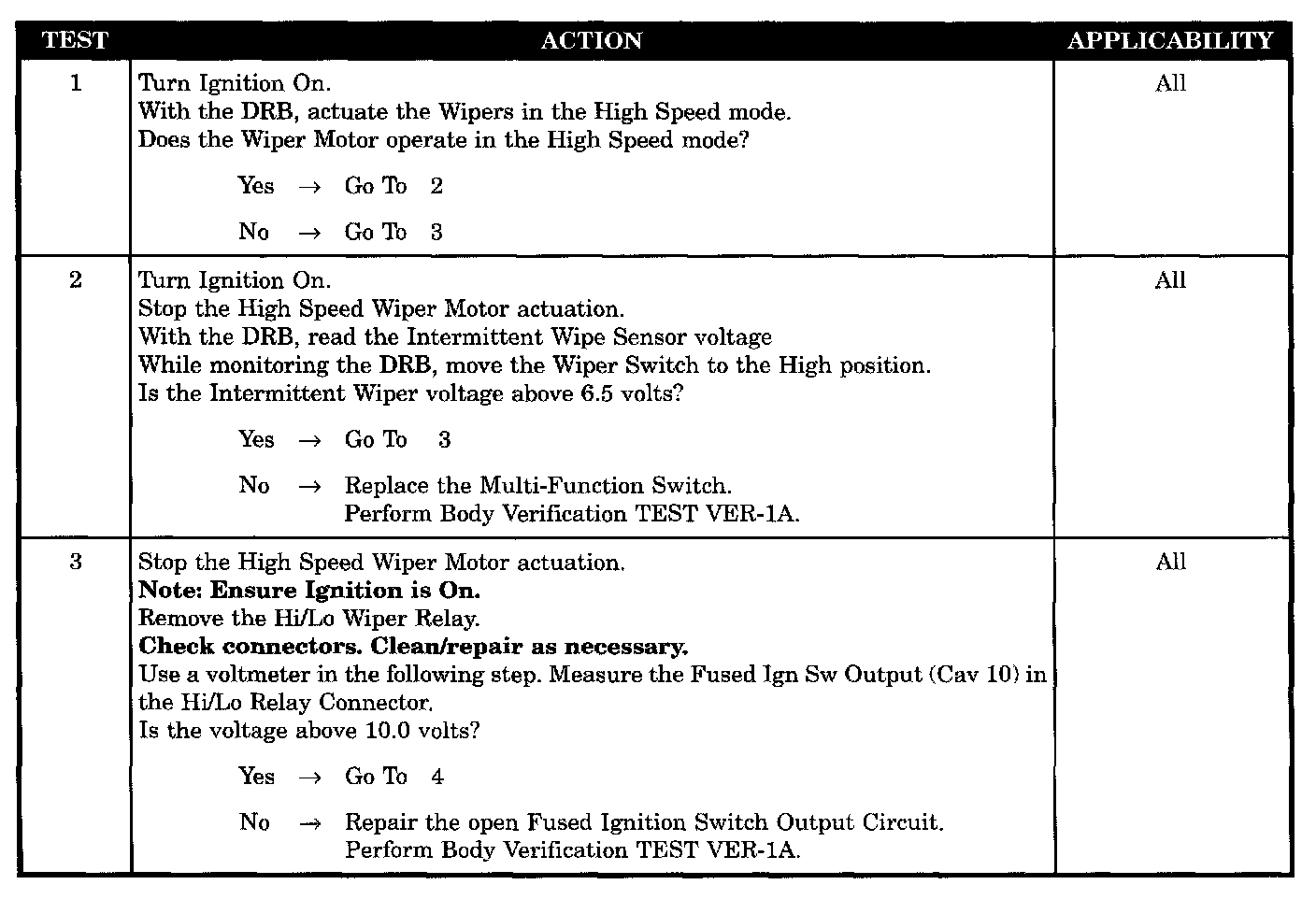

Test 1 - 3:

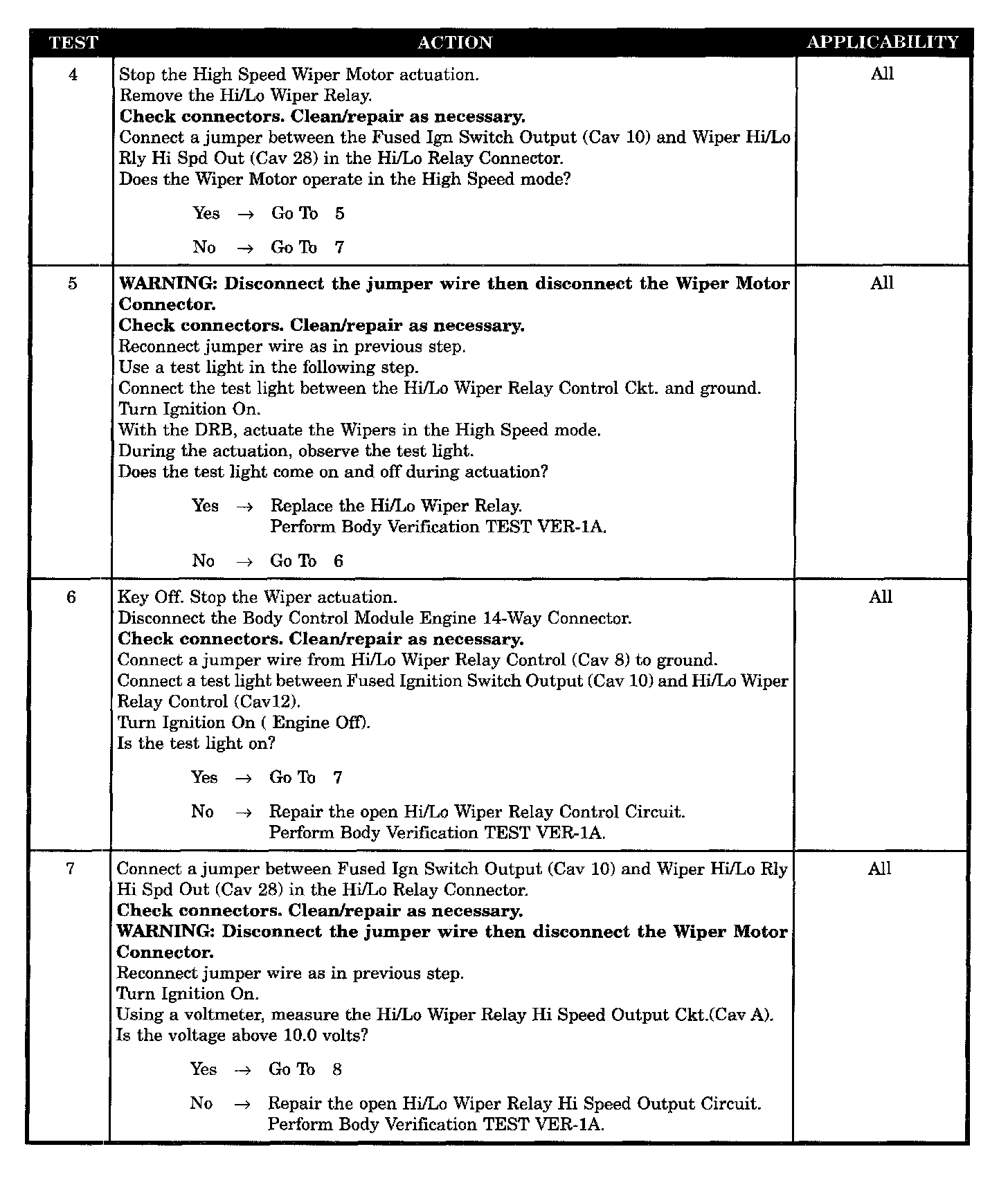

Test 4 - 7:

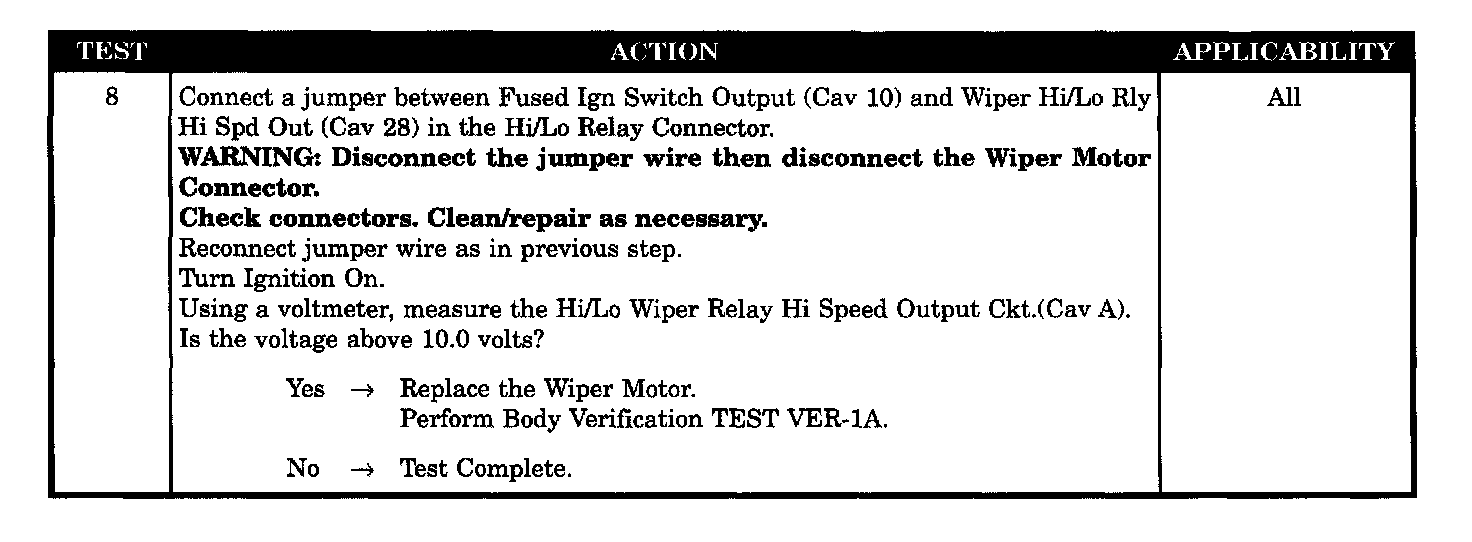

Test 8:

SYMPTOM
WIPERS NOT WORKING/HI SPEED

POSSIBLE CAUSES
- Open HI/LO wiper relay control circuit
- Open HI/LO wiper relay HI speed output circuit
- Open fused ignition output circuit- HI/LO wiper relay
- HI/LO wiper RLY-actuation
- Multi-funct SW/Interm voltage
- Wiper motor/H-L wiper RLY HI speed
- BCM-HI/LO wiper default
- DEF BCM/Multi-function switch
