Wiper Wash Function Not Working

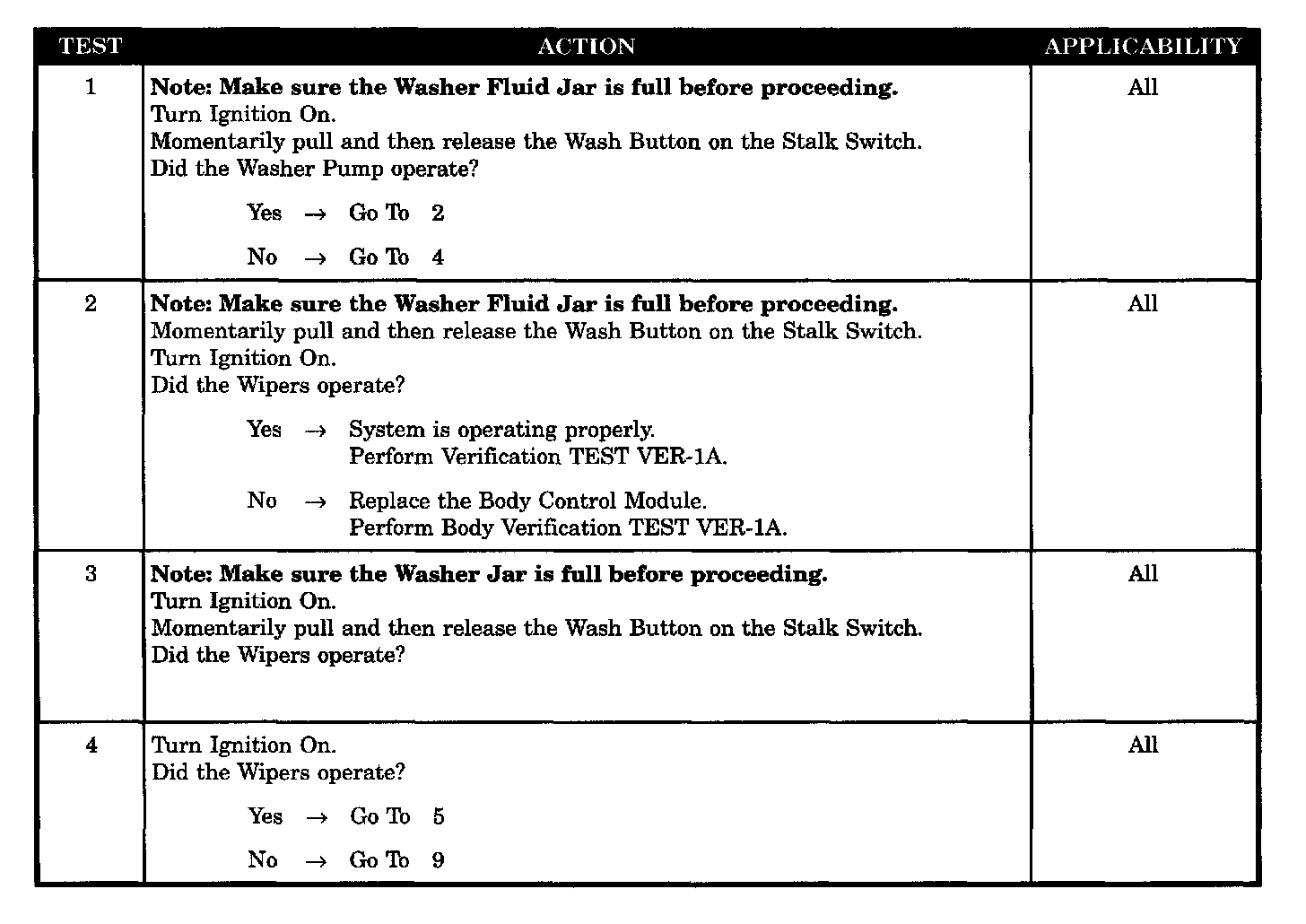

Test 1 - 4:

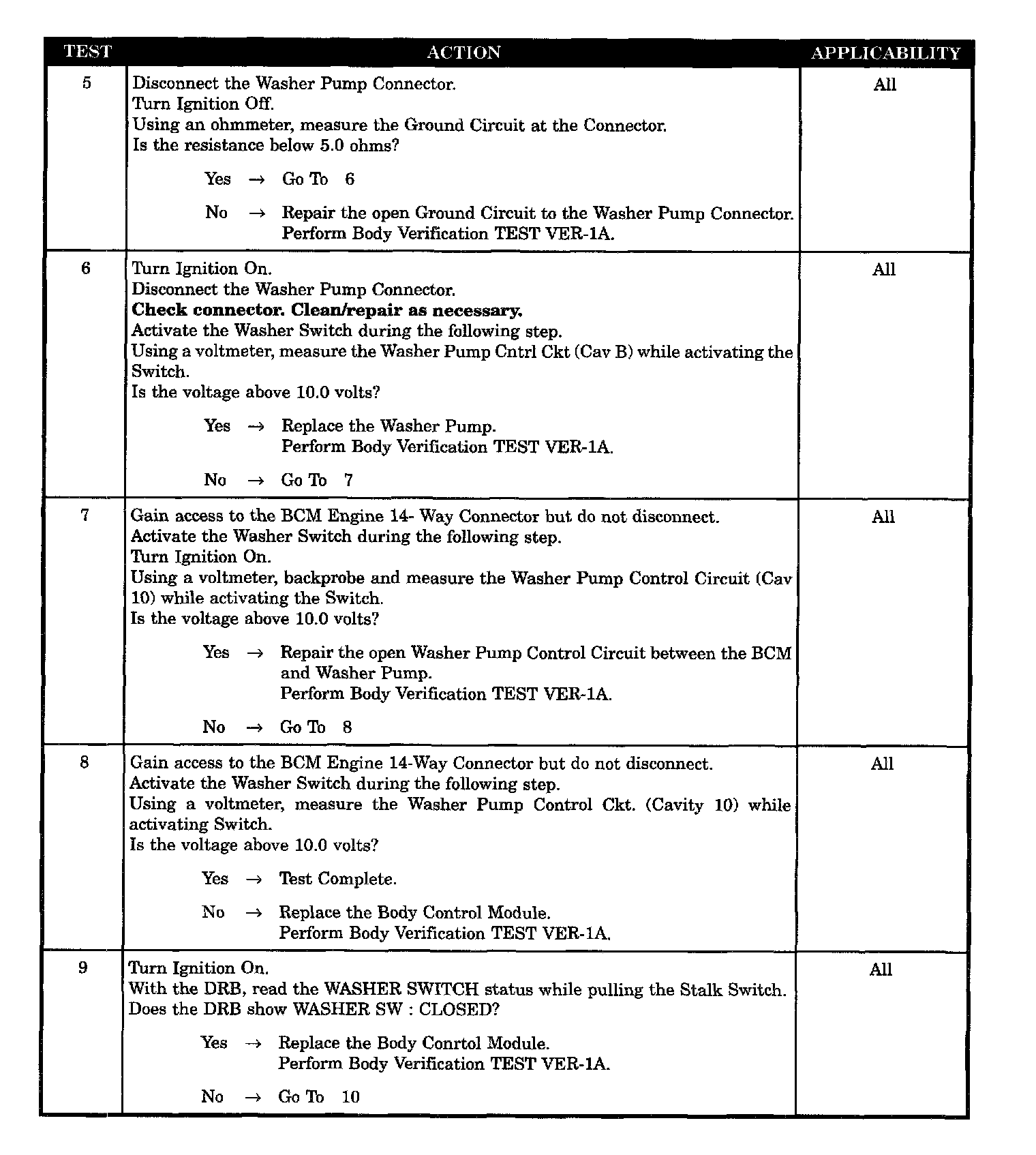

Test 5 - 9:

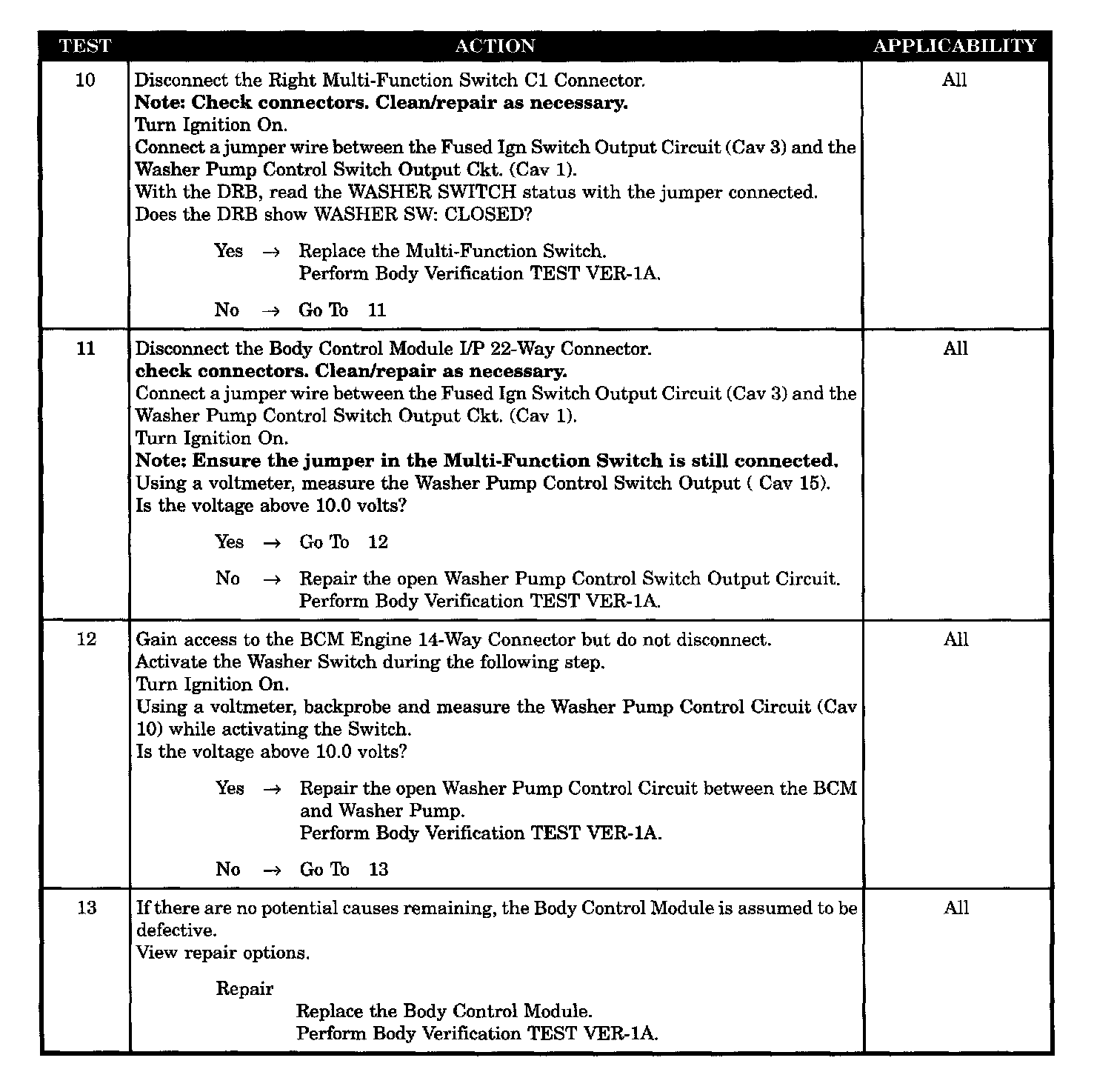

Test 10 - 13:

SYMPTOM
WIPER WASH FUNCTION NOT WORKING

POSSIBLE CAUSES
- Do wipers operate
- Open washer pump control circuit
- Open washer pump control switch output CKT
- Open ground circuit/washer pump connector
- Defective washer pump
- Multi-function SW/washer SW
- BCM/washer switch
- BCM/wiper operates
- Default BCM/10 volts
- BCM/Washer pump control CKT
