Passenger Door Disarm Switch Input

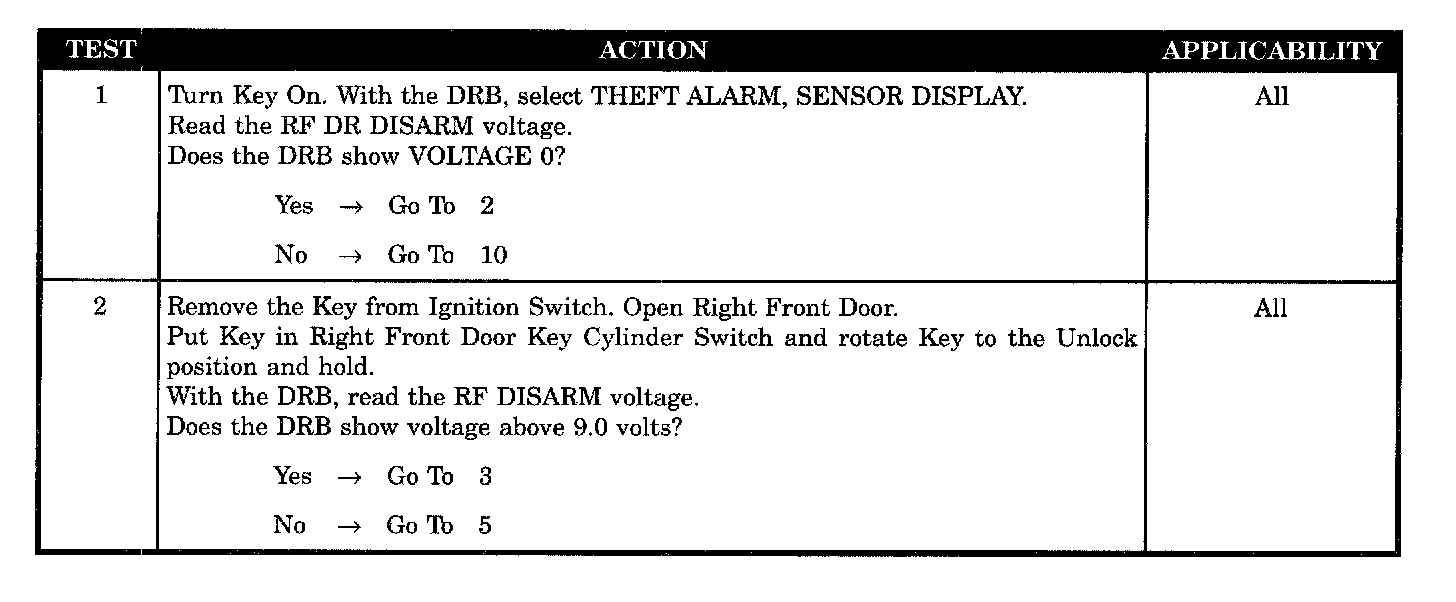

Test 1 - 2:

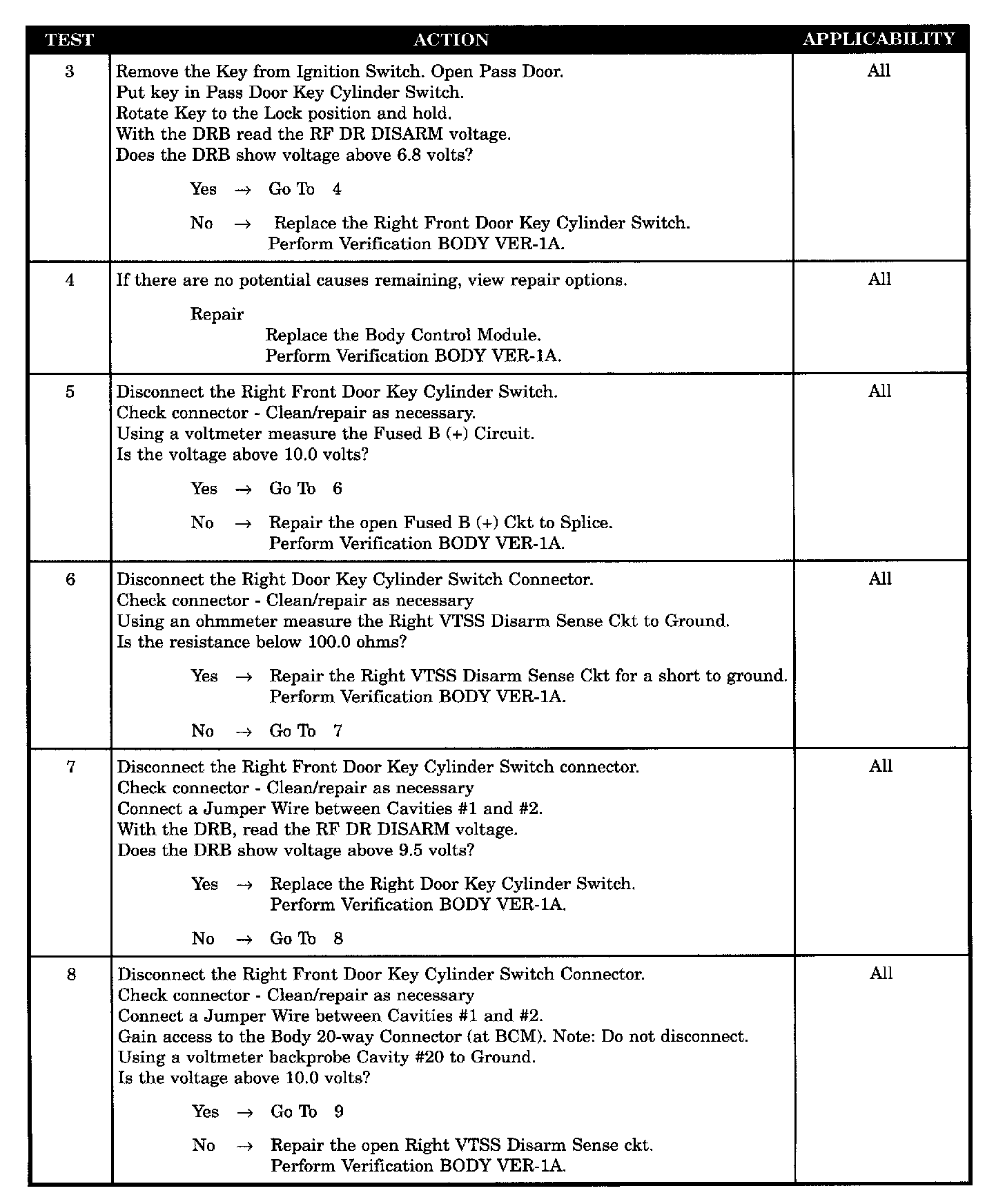

Test 3 - 8:

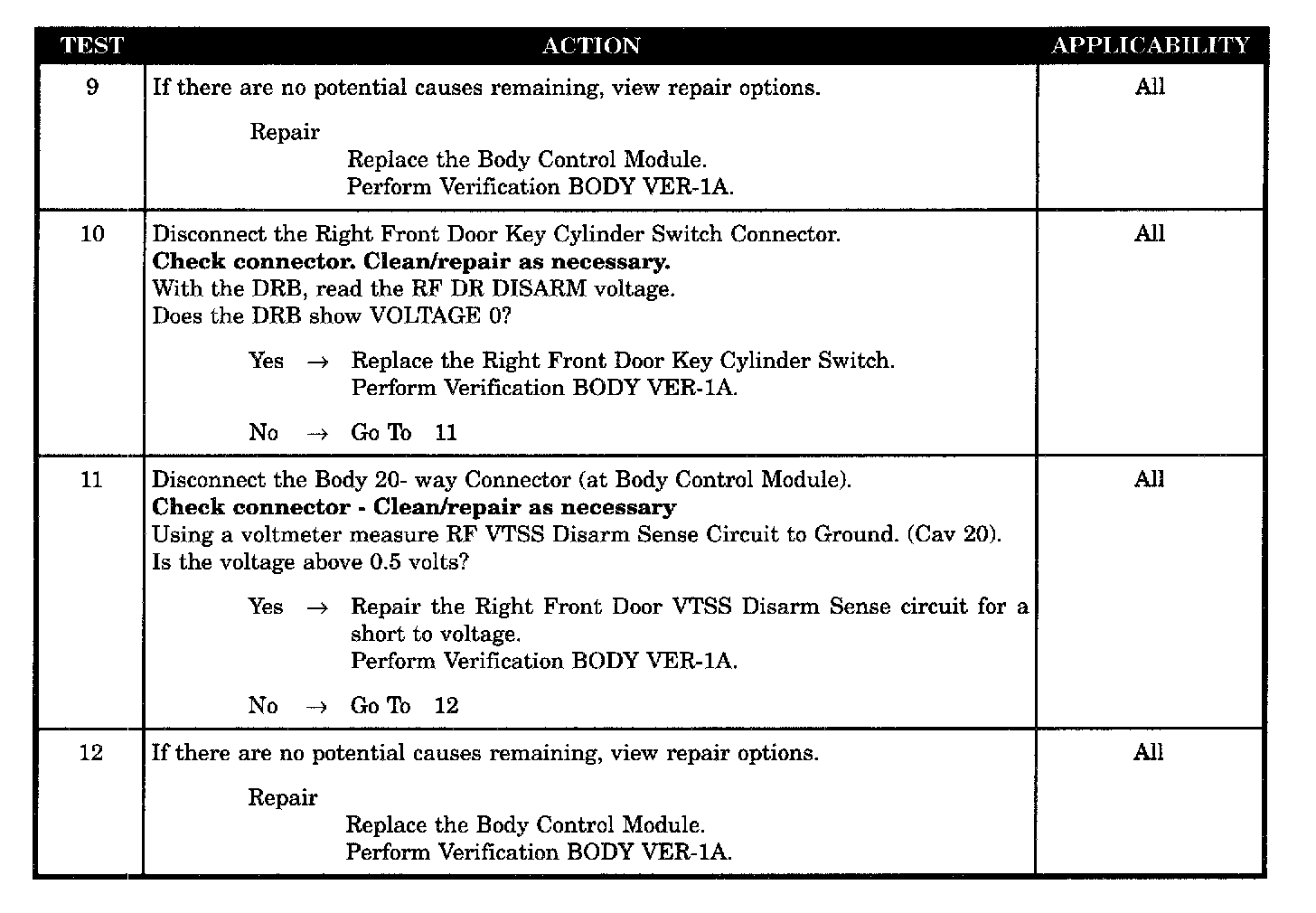

Test 9 - 12:

SYMPTOM
PASSENGER DOOR DISARM SWITCH INPUT

WHEN MONITORED
Continuously.

SET CONDITION
The passenger door disarm switch input is activated in the lock/unlock position, or voltage is present on the right front VTS disarm sense circuit for 25 consecutive seconds.

POSSIBLE CAUSES
- BCM/RF disarm voltage above 6.8 volts
- BCM/RY DR VTSS disarm circuit defective
- BCM/RF DR VTSS disarm sense above 10.0 volts
- RF door key cylinder switch lock below 6.8 volts
- RF door VTSS fused B (+) circuit open
- RF DR VTSS disarm sense circuit shorted to ground
- Right front door key cylinder switch open
- Right front door key cylinder switch shorted
- Right VTSS disarm sense CKT open
- VTSS disarm sense CKT RF DR shorted to voltage
