PCM Status Failure

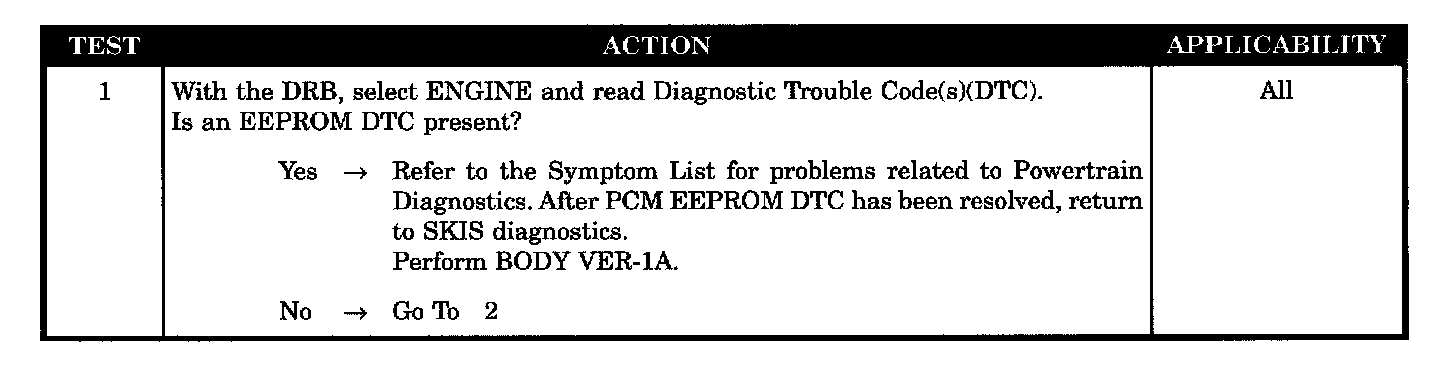

Test 1:

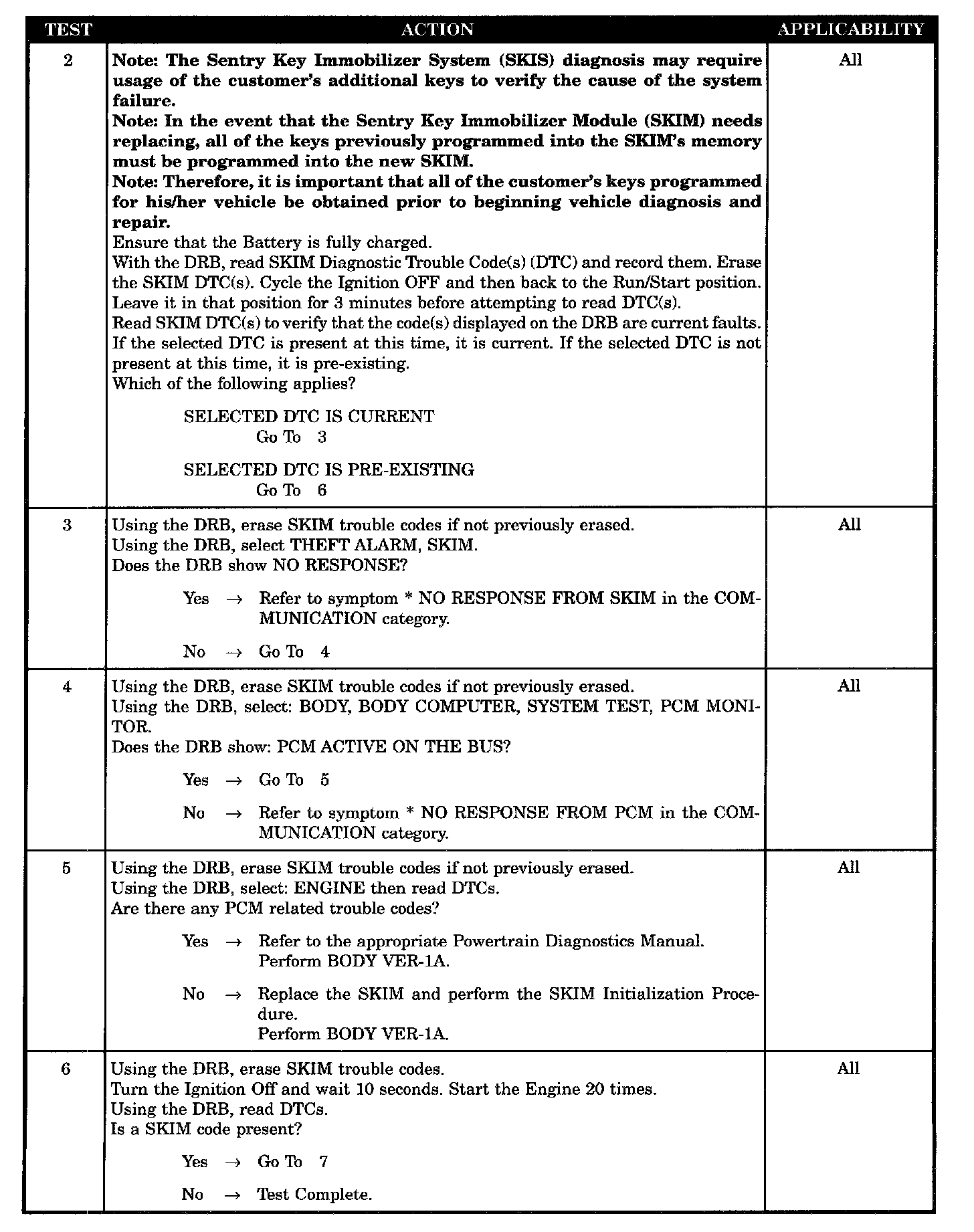

Test 2 - 6:

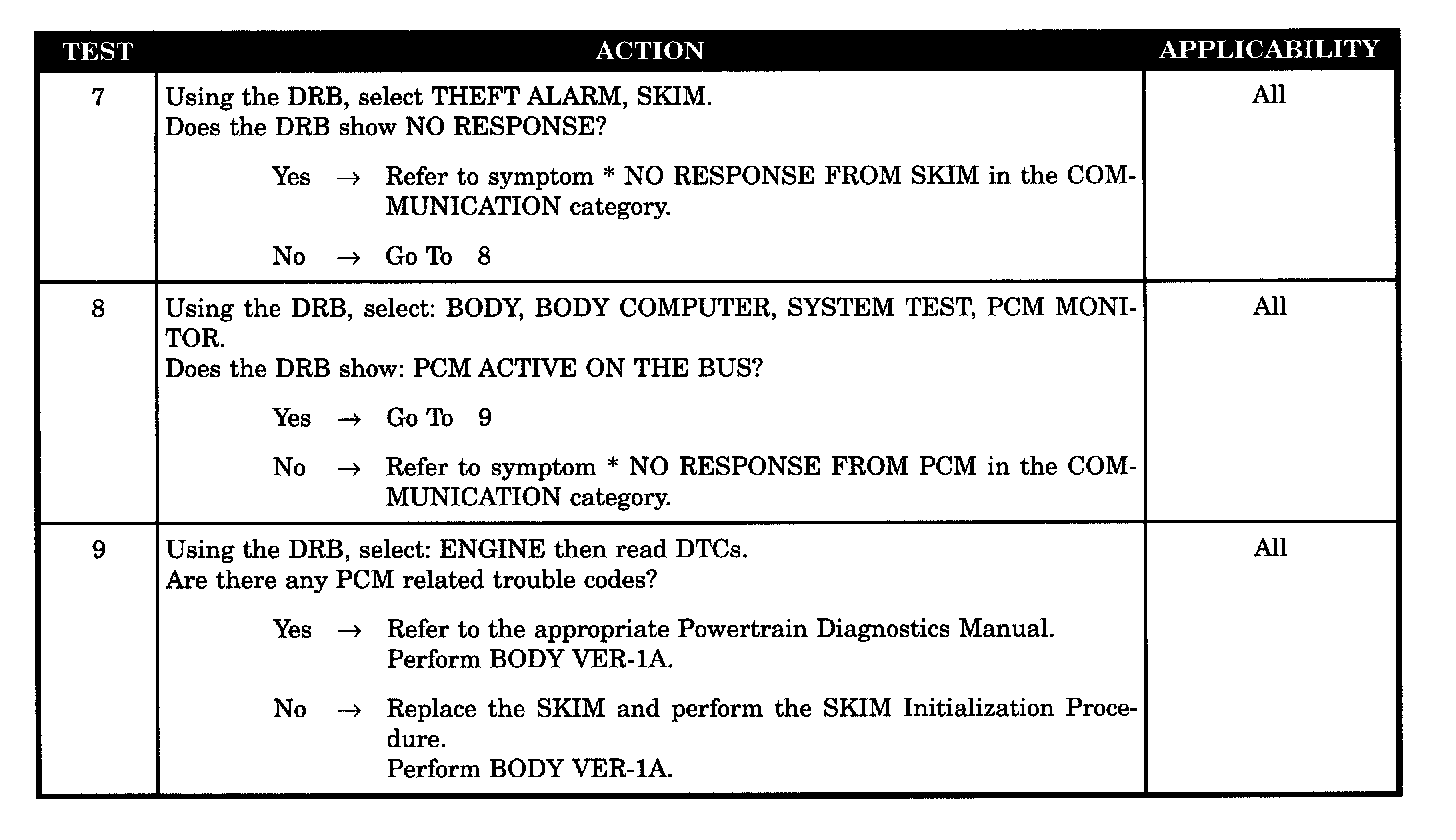

Test 7 - 9:

SYMPTOM
PCM STATUS FAILURE

WHEN MONITORED
This condition is monitored at ignition ON and continuously during an ignition on cycle.

SET CONDITION
This condition exists when a PCM STATUS bus message was not received from the PCM. NOTE: Failure maturity time is 20 seconds.

POSSIBLE CAUSES
- PCM EEPROM DTC present
- Skim communication link failure
- Skim PCM failure
- Skim PCM problem
- Skim unidentified problem
