Home
>>
Chrysler
>>
2000
>>
Sebring Convertible V6-2.5L VIN H
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Vehicle Theft Security System
>>
Garage Door Opener and Decklid Release Lockout
Garage Door Opener and Decklid Release Lockout

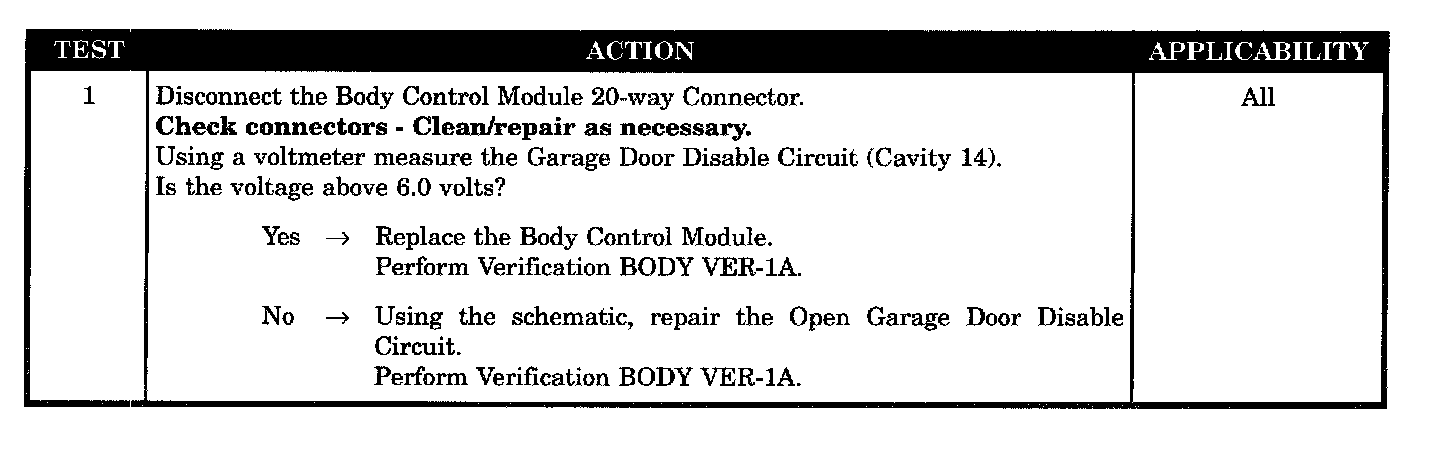

Test 1:
SYMPTOM
GARAGE DOOR OPENER AND DECKLID RELEASE LOCKOUT
POSSIBLE CAUSES
-
Garage door disable circuit open
-
BCM/Garage door opener
