EEPROM Failure

Test 1 - 2:

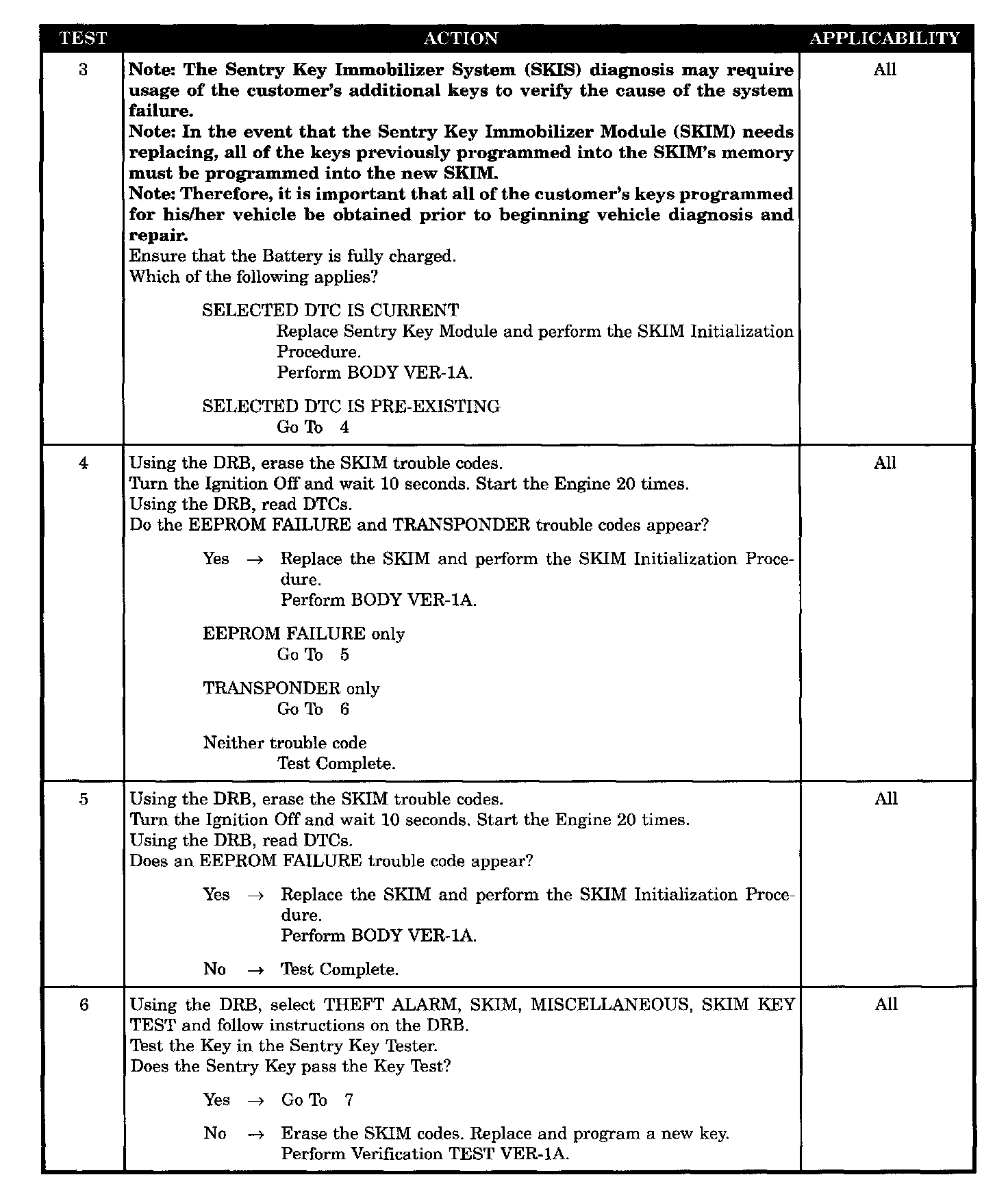

Test 3 - 6:

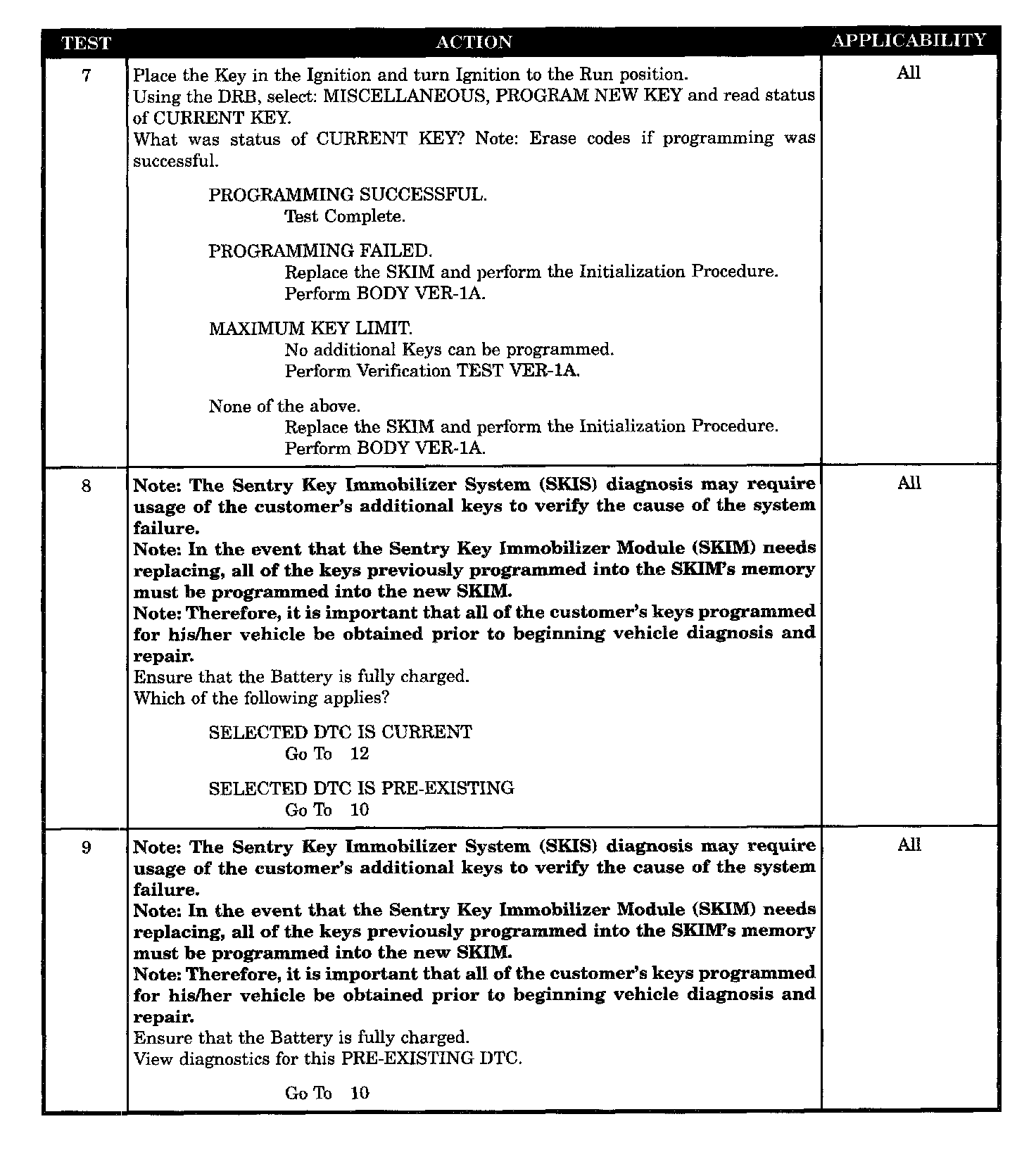

Test 7 - 9:

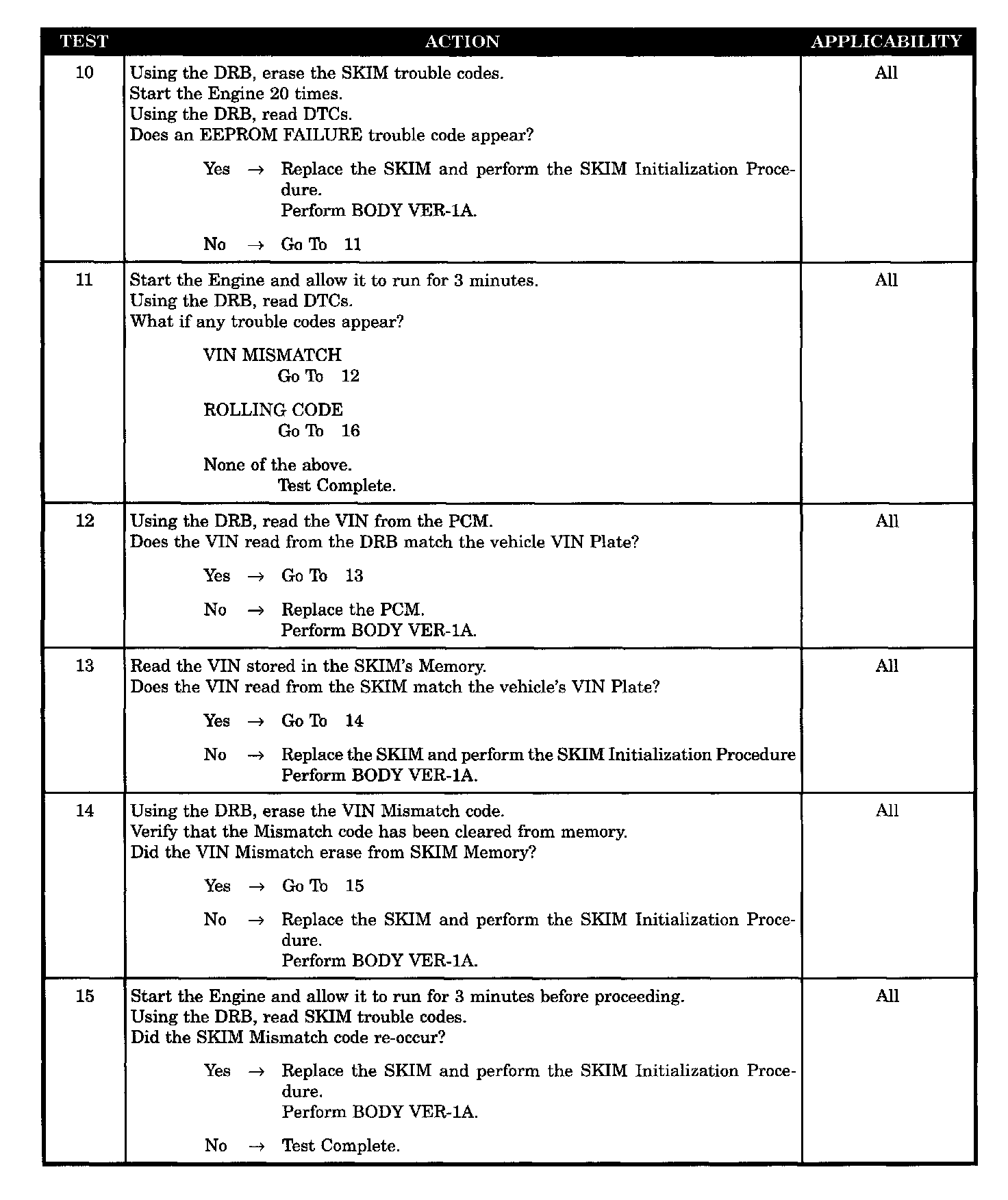

Test 10 - 15:

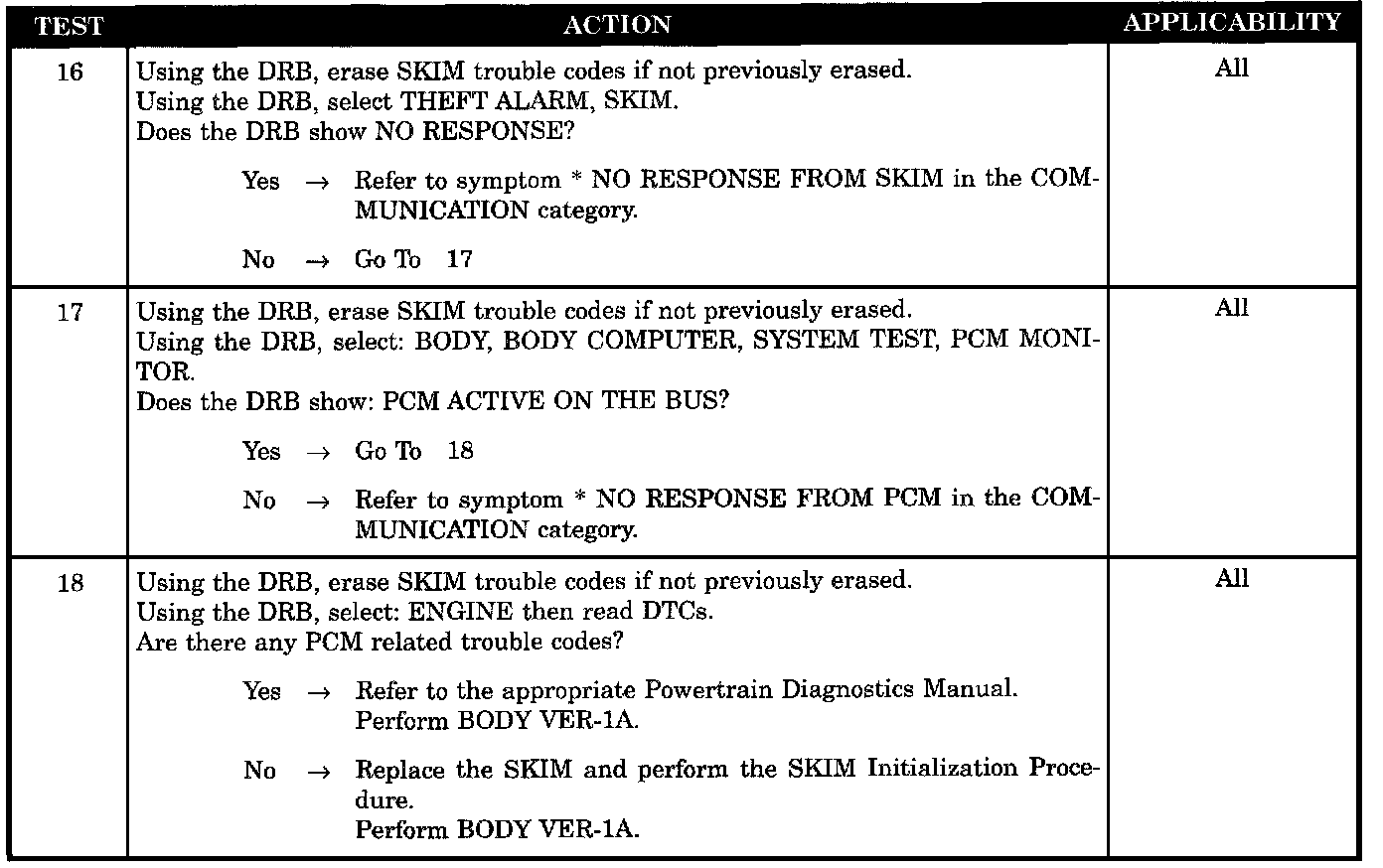

Test 16 - 18:

SYMPTOM
EEPROM FAILURE

WHEN MONITORED
At ignition ON and during the SKIM programming process, which programs SKIM's PIN the VIN, Country Code or additional keys.

SET CONDITION
This condition is set when an error occurs during programming the SKIM's EEPROM. The other condition that causes this code to mature is an EEPROM 1 SQ C link failure.

POSSIBLE CAUSES
- Hard skim VIN mismatch
- Maximum key limit
- Sentry key is defective
- Skim key programing failed
- Skim communication link failure
- Skim defective - EEPROM DTC
- Skim defective - ID mismatch & EEPROM DTC
- Skim EEPROM failure
- Skim hard EEPROM failure
- Skim is defective
- Skim multiple failure
- Skim PCM failure
- Skim VIN mismatch
- VIN does not match
- VIN mismatch not cleared
