Driver Door Disarm Switch Input

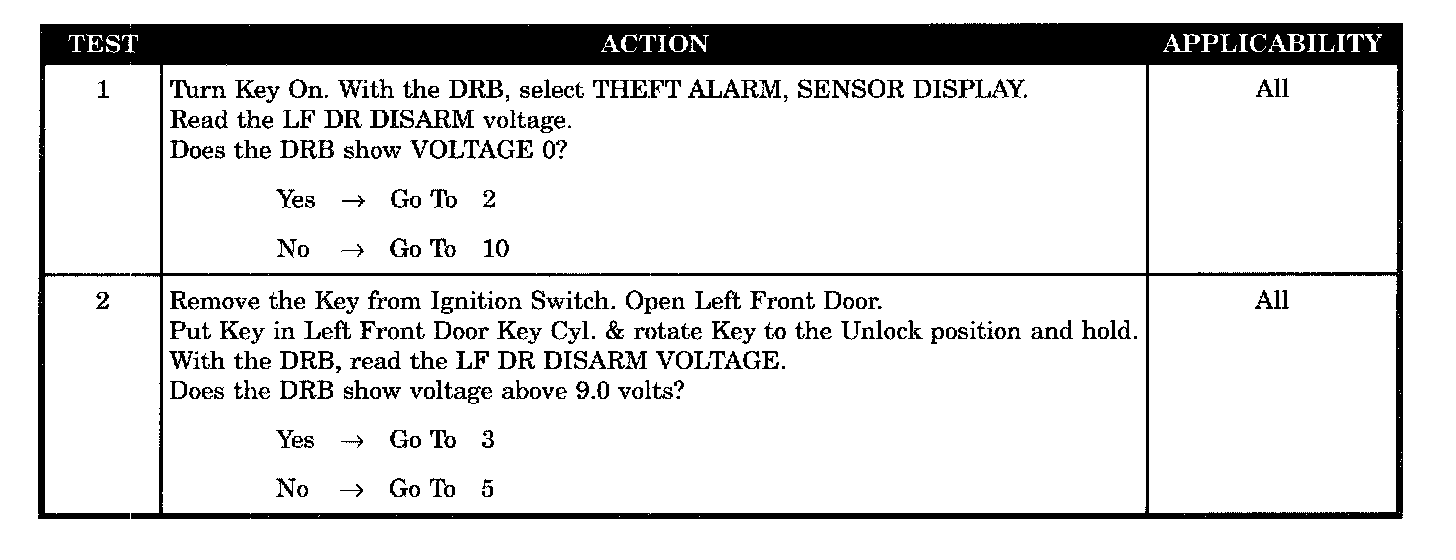

Test 1-2:

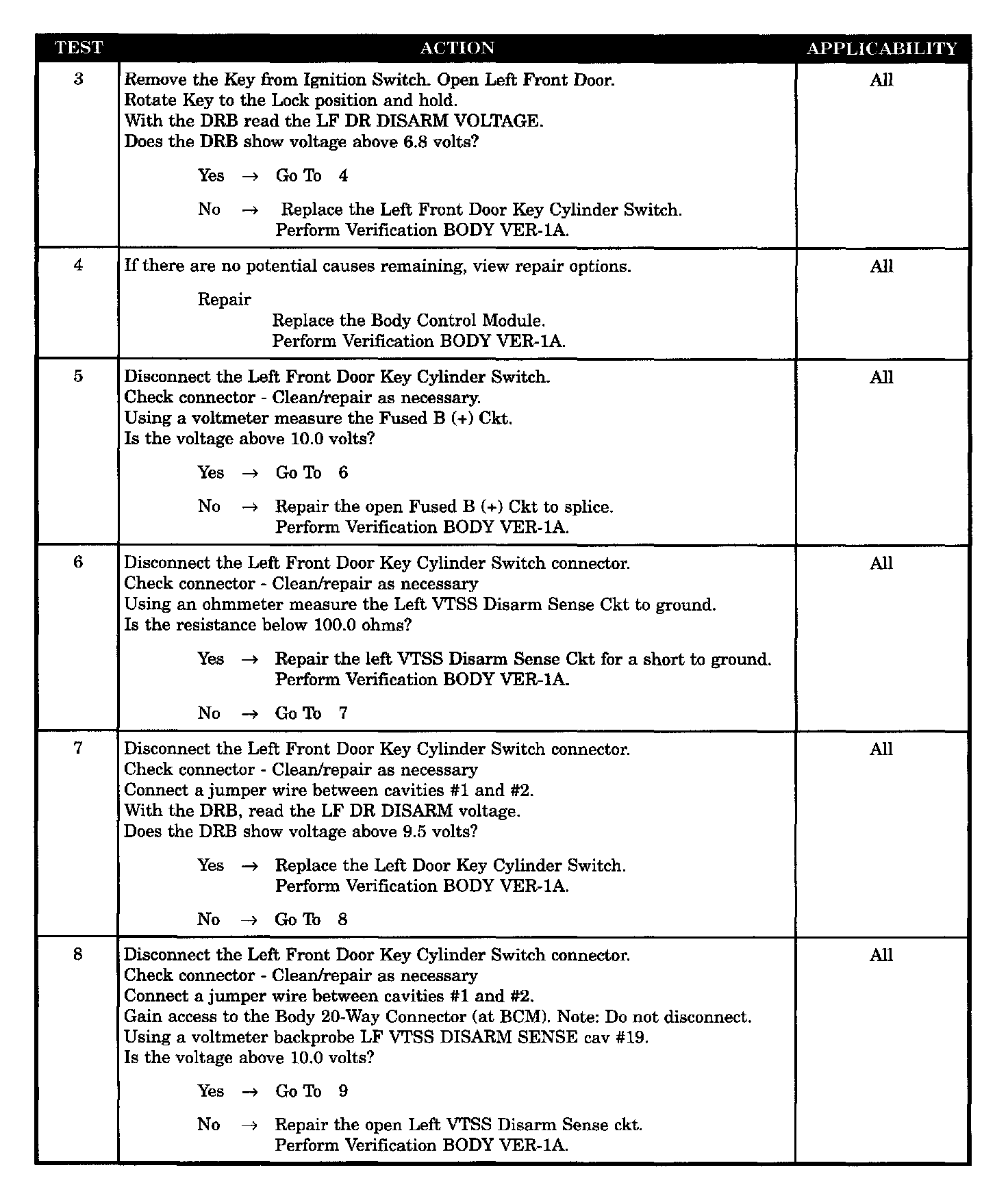

Test 3 - 8:

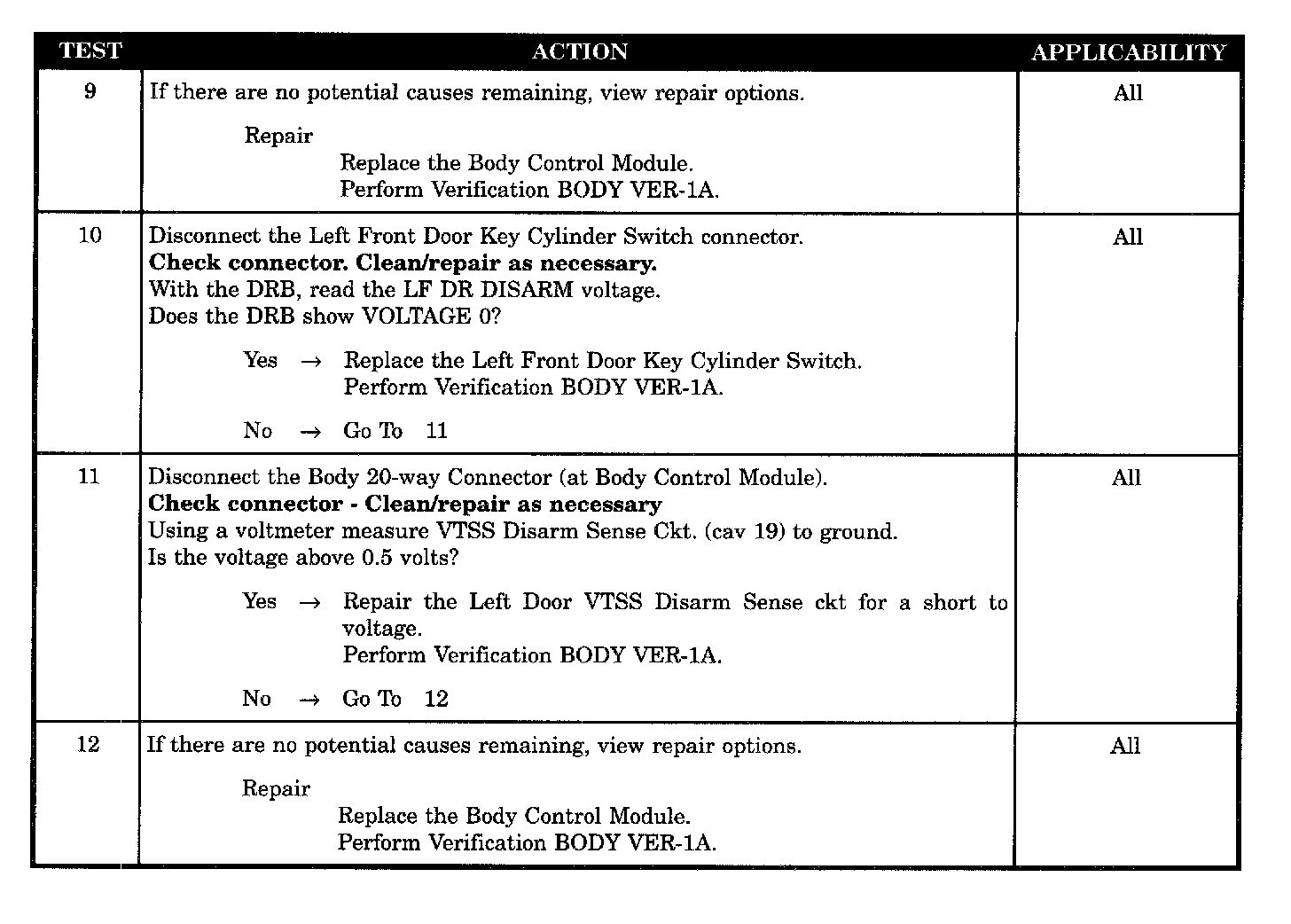

Test 9 - 12:

SYMPTOM
DRIVER DOOR DISARM SWITCH INPUT

WHEN MONITORED
Continuously.

SET CONDITION
If the driver door disarm switch input is activated in the lock/unlock position, or voltage is present on the left front VTS disarm sense circuit for 25 consecutive seconds.

POSSIBLE CAUSES
- BCM/VTSS disarm sense above 10.0 volts
- BCM/VTSS disarm sense circuit defective
- BCM/LF disarm voltage above 6.8 volts
- Left front door key cylinder switch open
- Left front door key cylinder switch shorted
- Left VTSS disarm sense CKT open
- LF door key cylinder switch lock below 6.8 volts
- VTSS disarm sense circuit shorted to ground
- VTSS disarm sense circuit shorted to voltage
- VTSS fused B (+) circuit open
