Passenger Squib Terminal Shorted to Ground (Active)

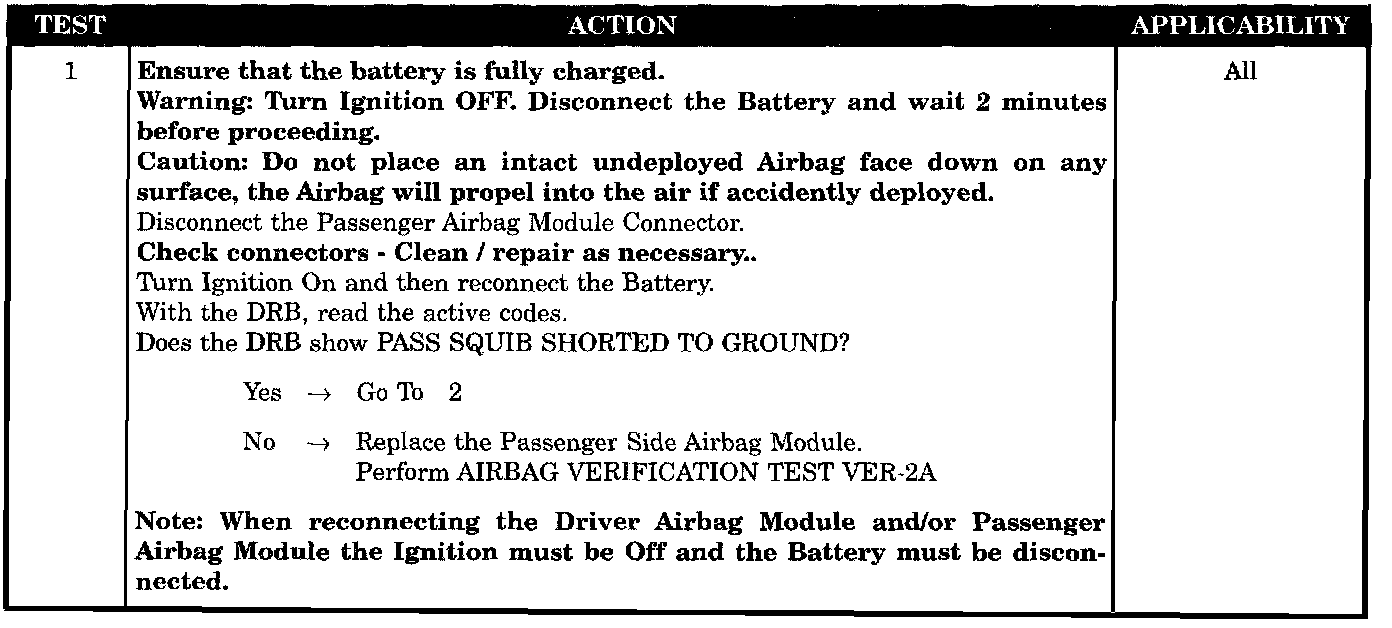

Test 1:

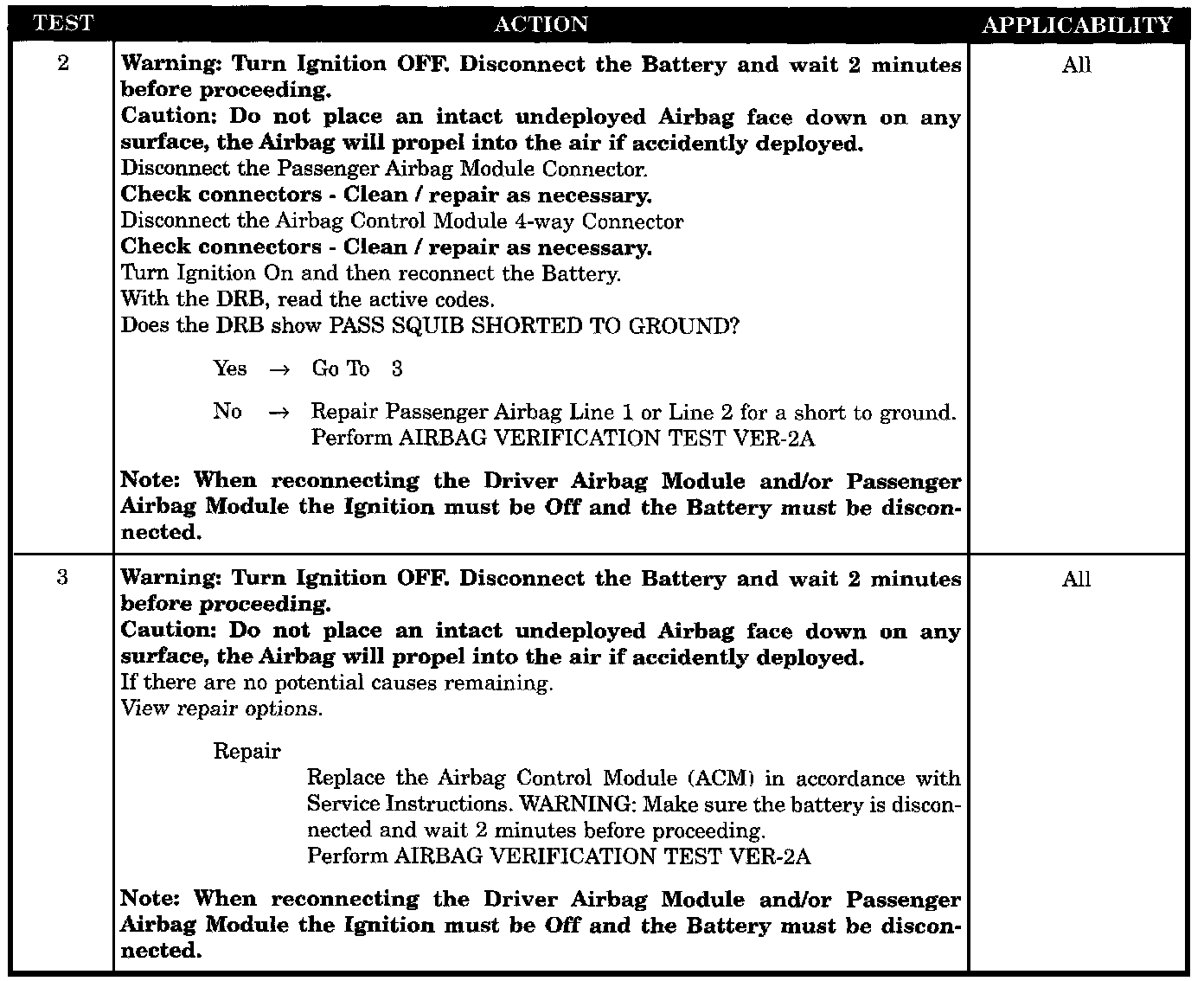

Test 2 - 3:

SYMPTOM
PASSENGER SQUIB TERMINAL SHORT TO GROUND (ACTIVE)

WHEN MONITORED
Continuously with the ignition ON.

SET CONDITION
With voltage ON, the passenger airbag line 1 or line 2 circuit(s) is other than expected.

POSSIBLE CAUSES
- Passenger airbag line 1 or line 2 short to ground
- Passenger airbag module short to ground
- ACM defective, PAB circuit shorted to ground
