Passenger Squib Terminal Shorted to Battery (Active)

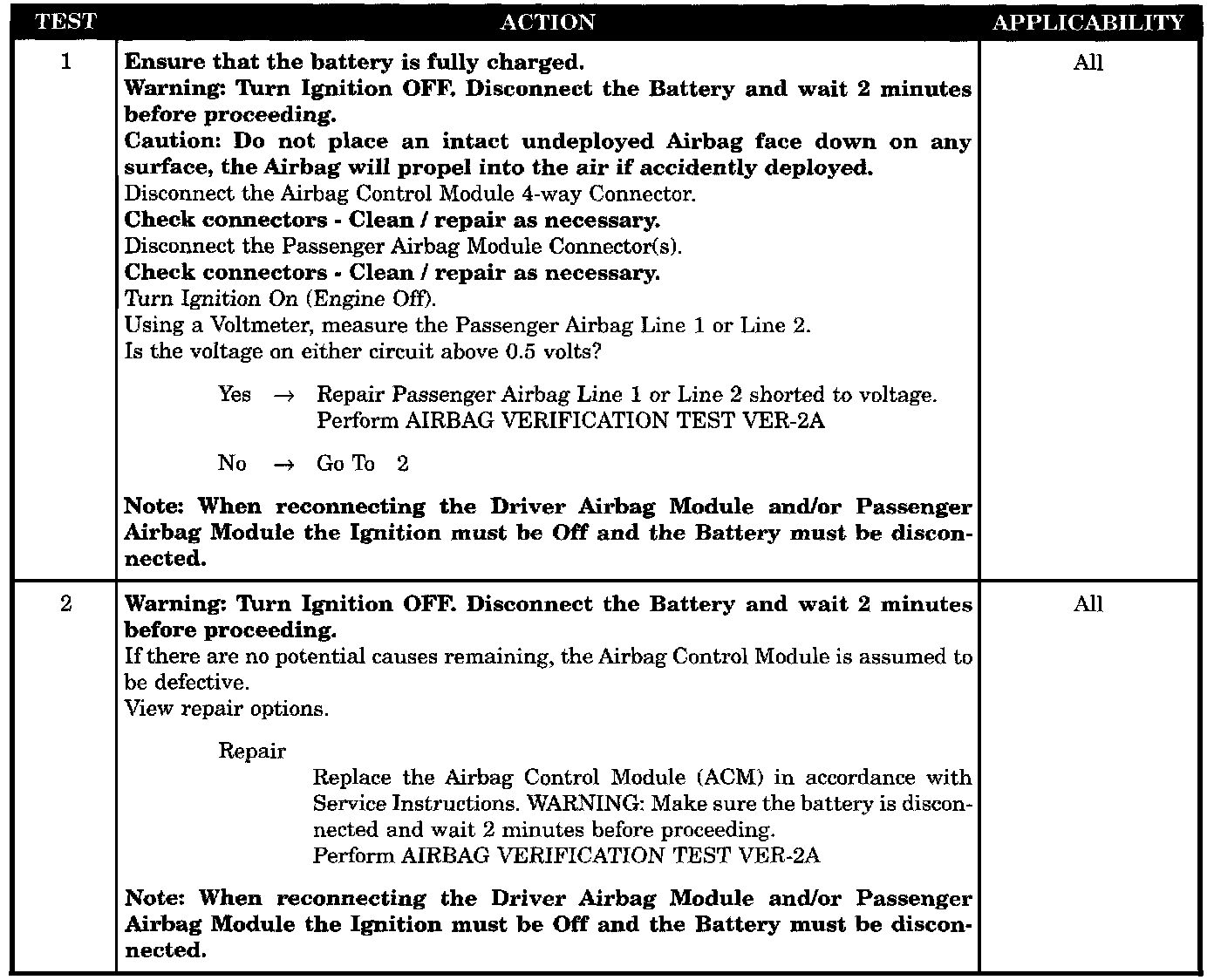

Test 1 - 2:

SYMPTOM
PASSENGER SQUIB TERMINAL SHORT TO BATTERY (ACTIVE)

WHEN MONITORED
Continuously with the ignition ON.

SET CONDITION
With voltage ON, the passenger airbag line 1 or line 2 circuit(s) is other than expected.

POSSIBLE CAUSES
- Passenger airbag line 1 or line 2 short to voltage
- ACM defective, passenger airbag short to voltage
