No Cluster CCD Bus Messages (Active)

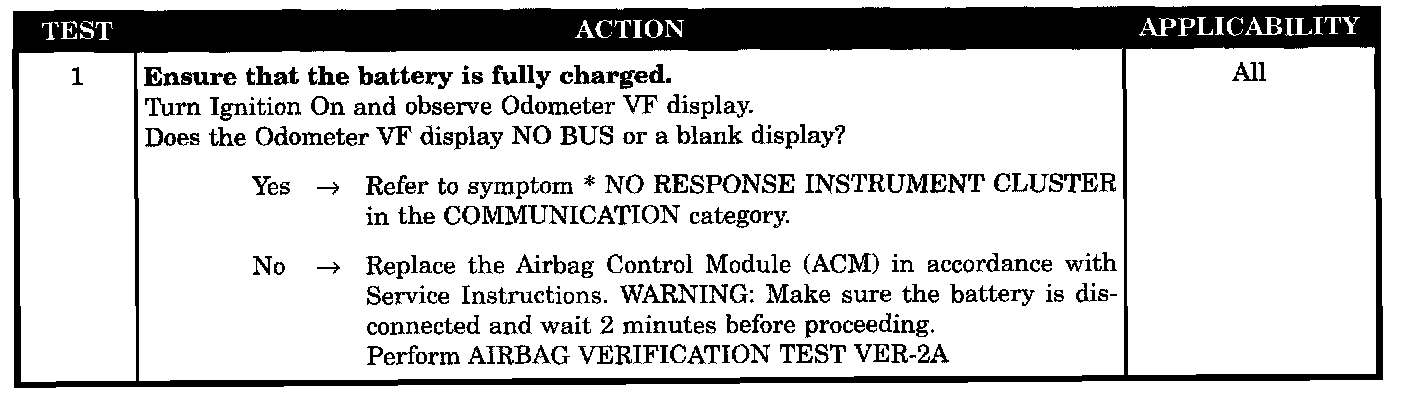

Test 1:

SYMPTOM
NO CLUSTER CCD BUS MESSAGE (ACTIVE)

WHEN MONITORED
Continuously when the ignition is ON.

SET CONDITION
If the ACM fails to see the status message for 5 continuous seconds the code will be set.

POSSIBLE CAUSES
- ACM bus circuit defective
