Driver Squib Terminal Shorted to Battery (Active)

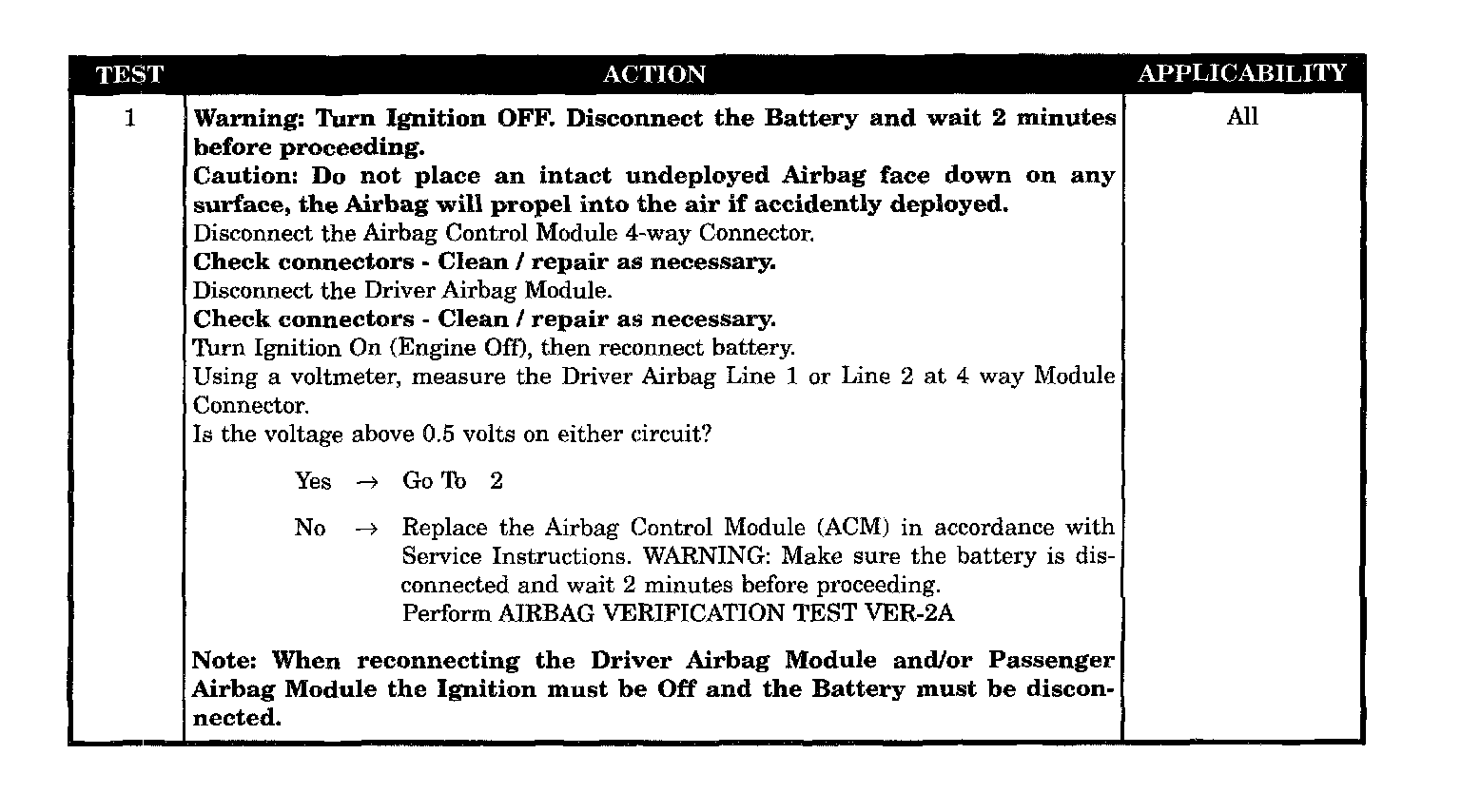

Test 1:

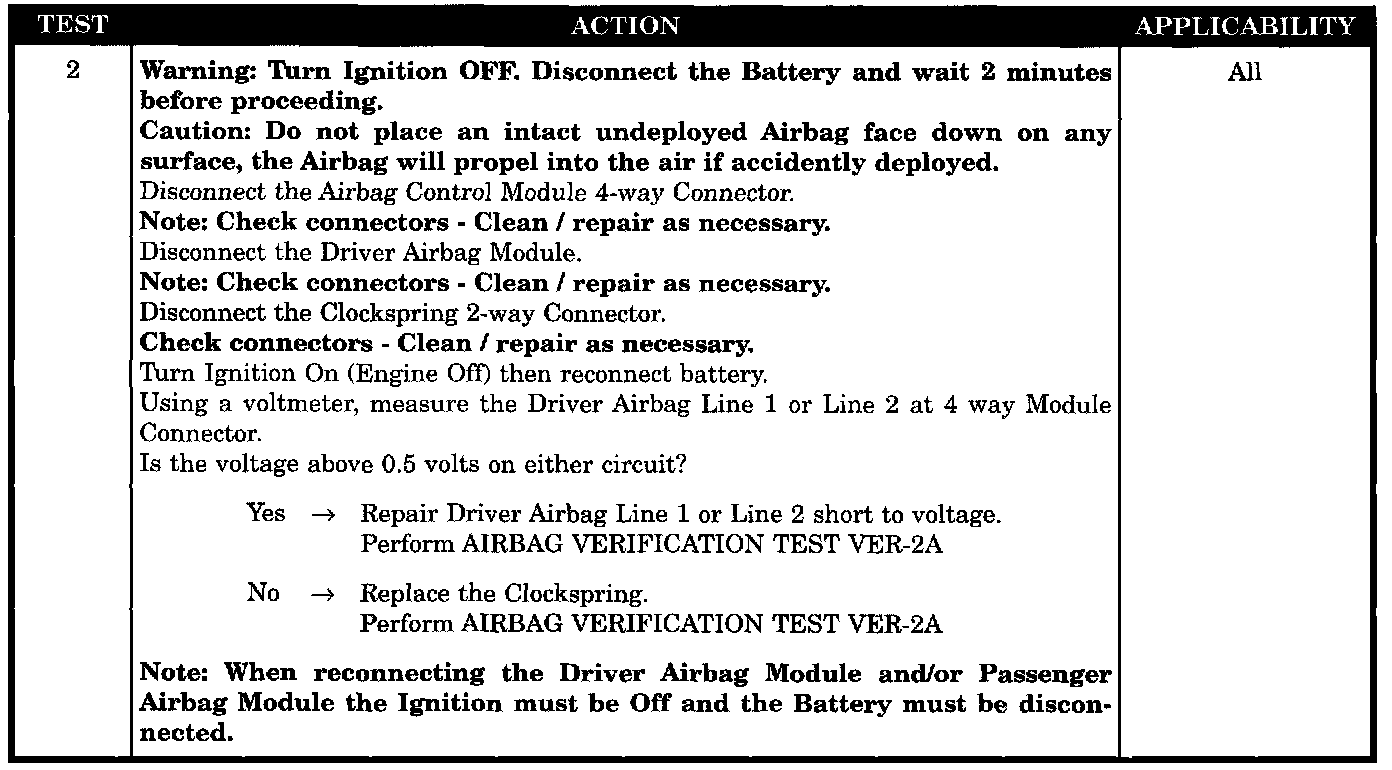

Test 2:

SYMPTOM
DRIVER SQUIB TERMINAL SHORTED TO BATTERY (ACTIVE)

WHEN MONITORED
Continuously with the ignition ON.

SET CONDITION
With voltage ON, the driver airbag line 1 or line 2 circuit(s) is other than expected.

POSSIBLE CAUSES
- Driver airbag line 1 or line 2 short to voltage
- Clockspring short to voltage
- ACM, DAB line 1 or line 2 shorted to voltage
