Driver Squib Circuit Shorted (Active)

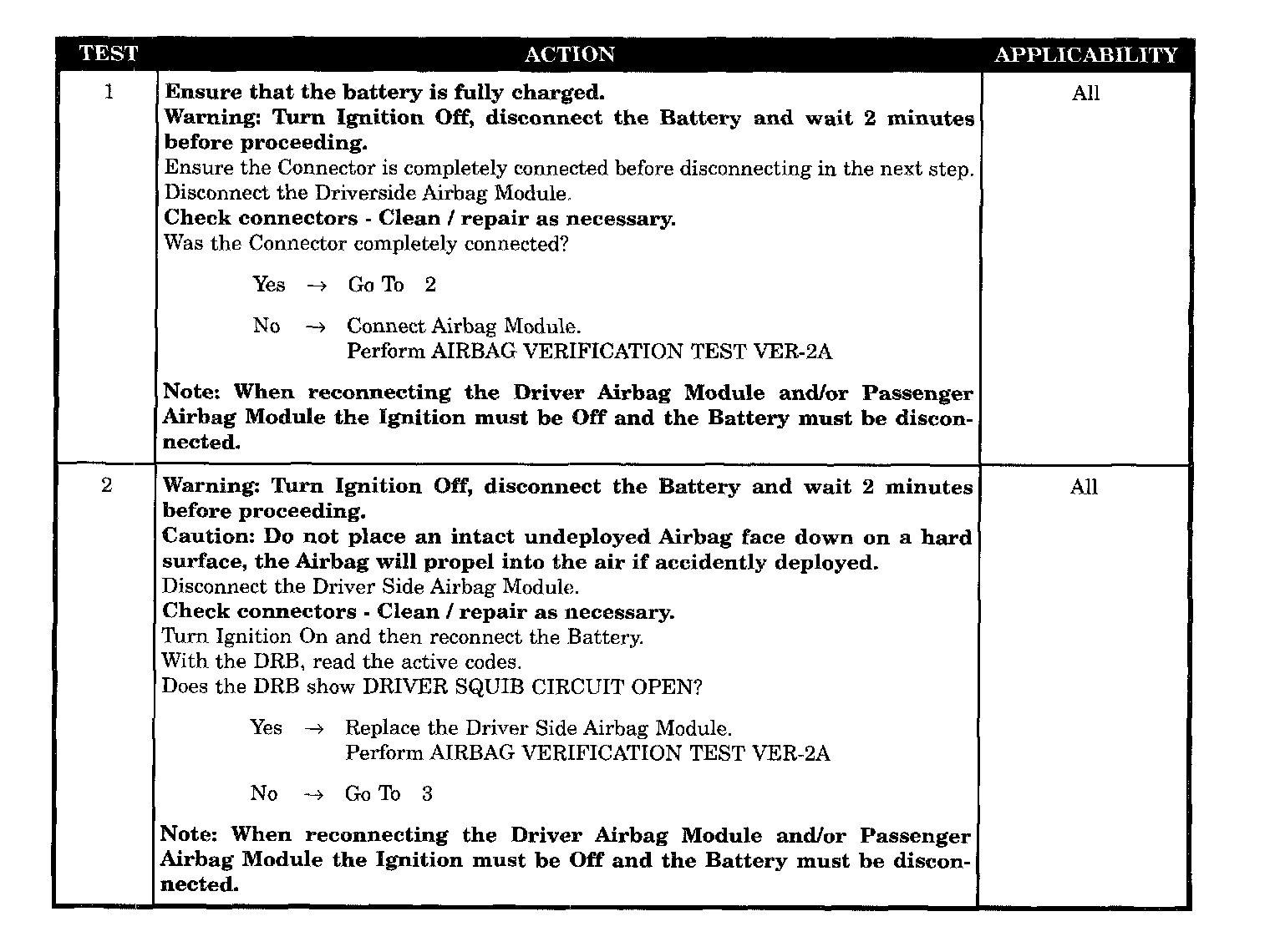

Test 1 - 2:

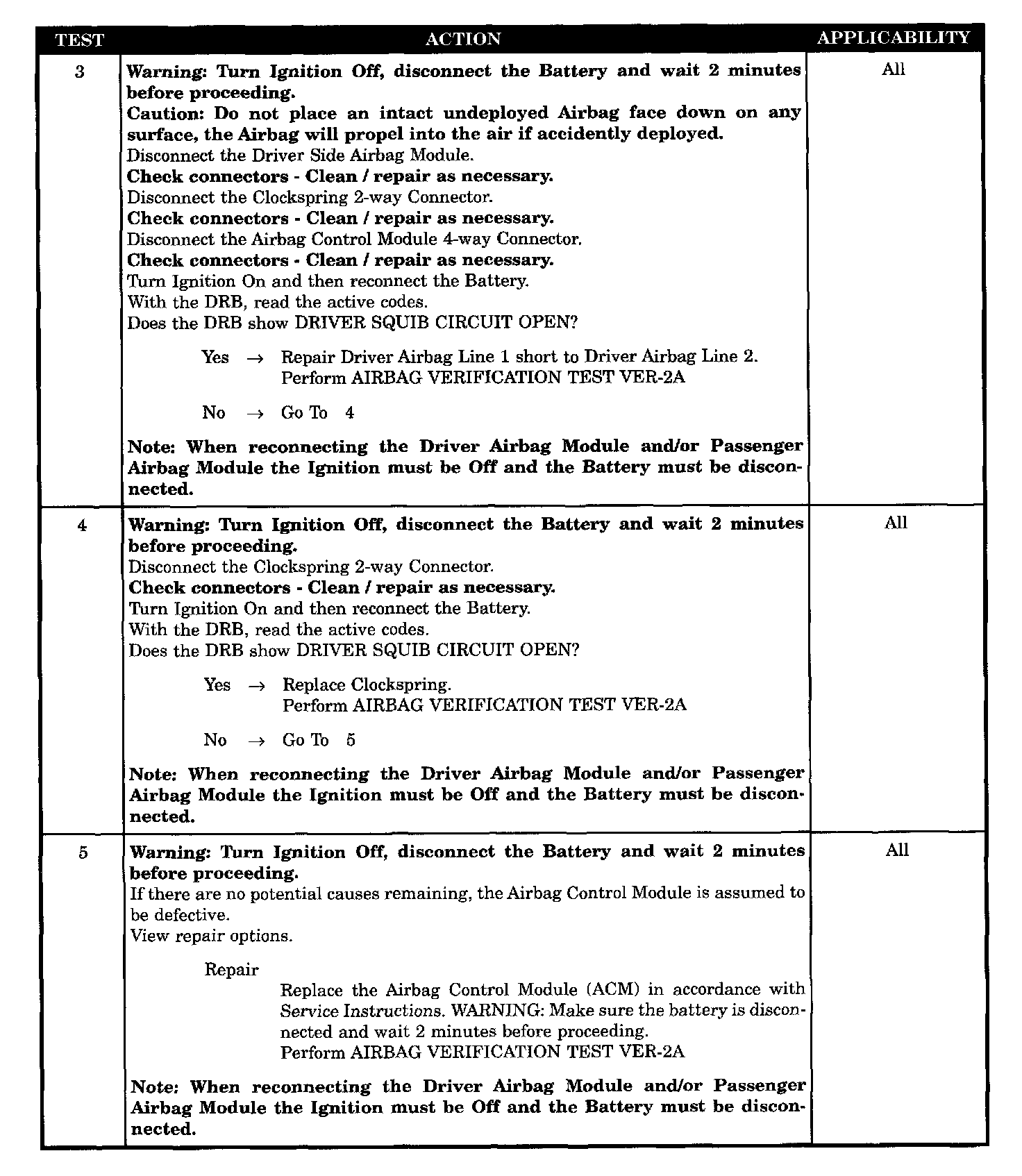

Test 3 - 5:

SYMPTOM
DRIVER SQUIB CIRCUIT SHORTED (ACTIVE)

WHEN MONITORED
Continuously with ignition ON.

SET CONDITION
The ACM has detected low resistance in the Driver Squib Circuits.

POSSIBLE CAUSES
- Driver airbag connector
- Driver airbag line 1 shorted to driver airbag line 2
- Clockspring shorted
- Driver airbag module shorted
- ACM defective, driver airbag circuit shorted
