Remote Keyless Entry Problem

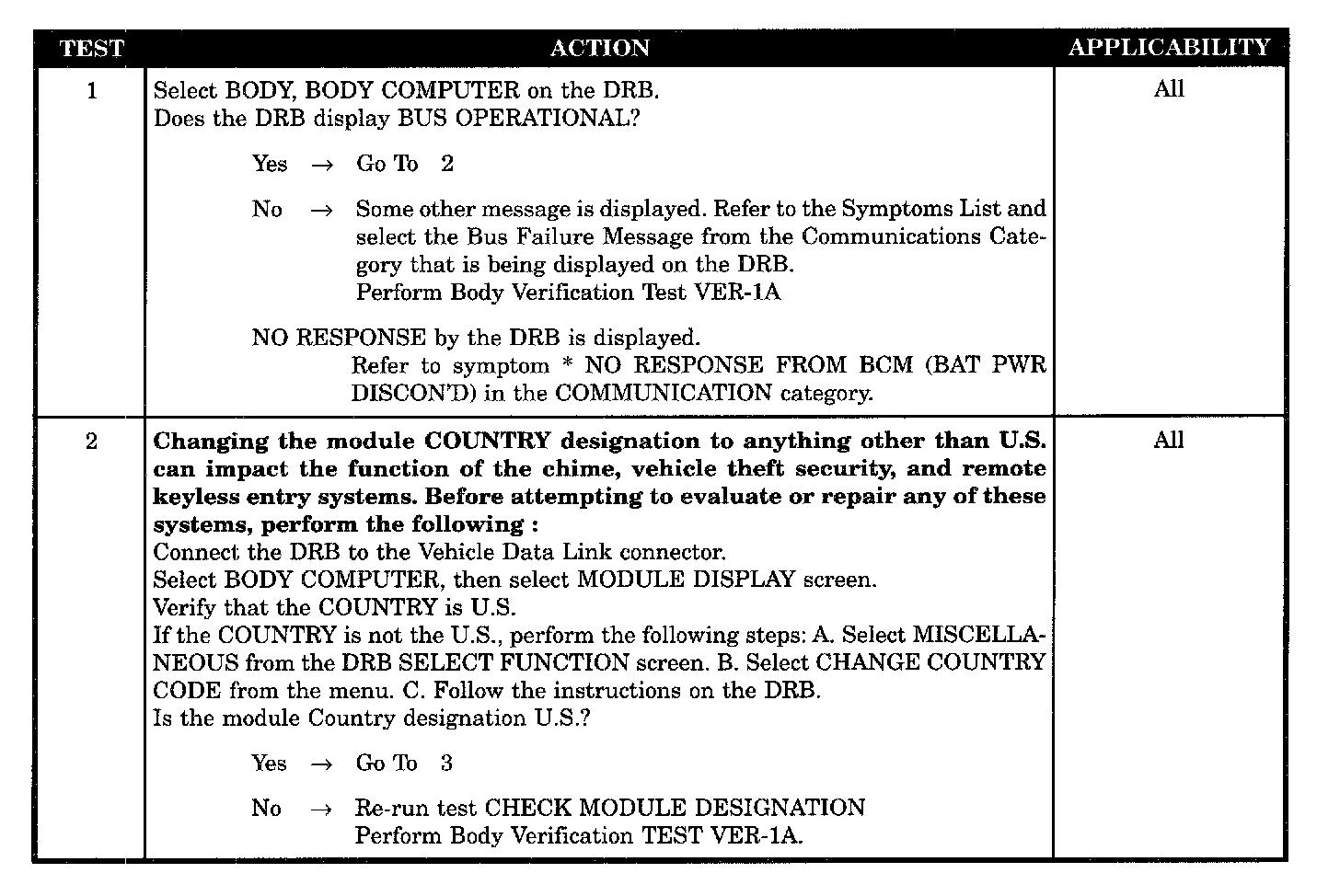

Test 1 - 2:

Test 3 - 7:

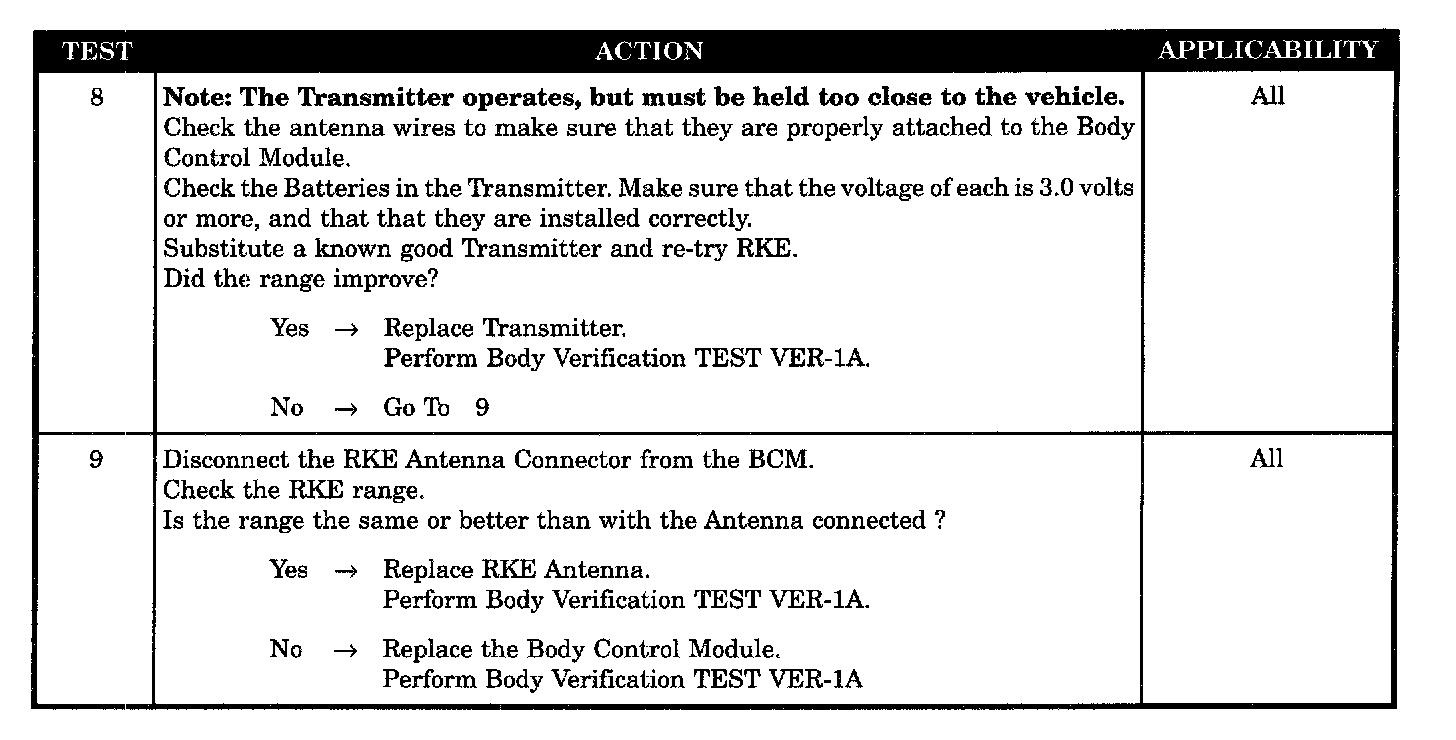

Test 8 - 9:

SYMPTOM
REMOTE KEYLESS ENTRY PROBLEM

POSSIBLE CAUSES
- Link to body communication bus inoperative
- Dead battery in transmitter
- RKE antenna defective
- RKE antenna inoperative
- RKE does not operate properly
- BCM defective RKE circuit
- BCM def - RKE inoperative
- country designation is wrong
- RKE transmitter defective
