Power Door Locks/RKE
>>
Door Lock Inhibit Circuit Inoperative
Door Lock Inhibit Circuit Inoperative

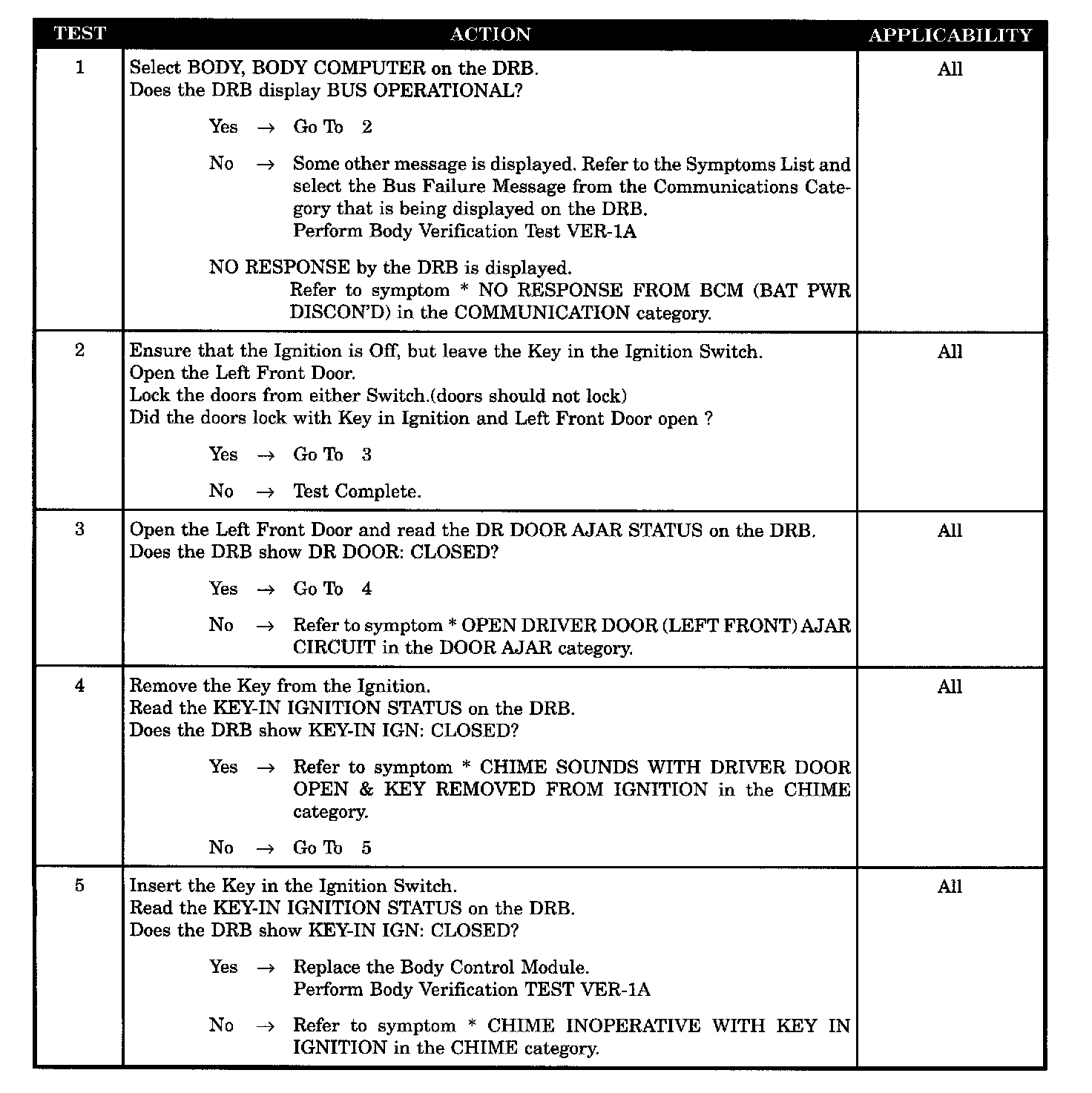

Test 1 - 5:
SYMPTOM
DOOR LOCK INHIBIT CIRCUIT INOPERATIVE
POSSIBLE CAUSES
-
Link to body communication bus inoperative
-
Key-in ignition switch open
