Automatic (Rolling) Door Locks Do Not Operate

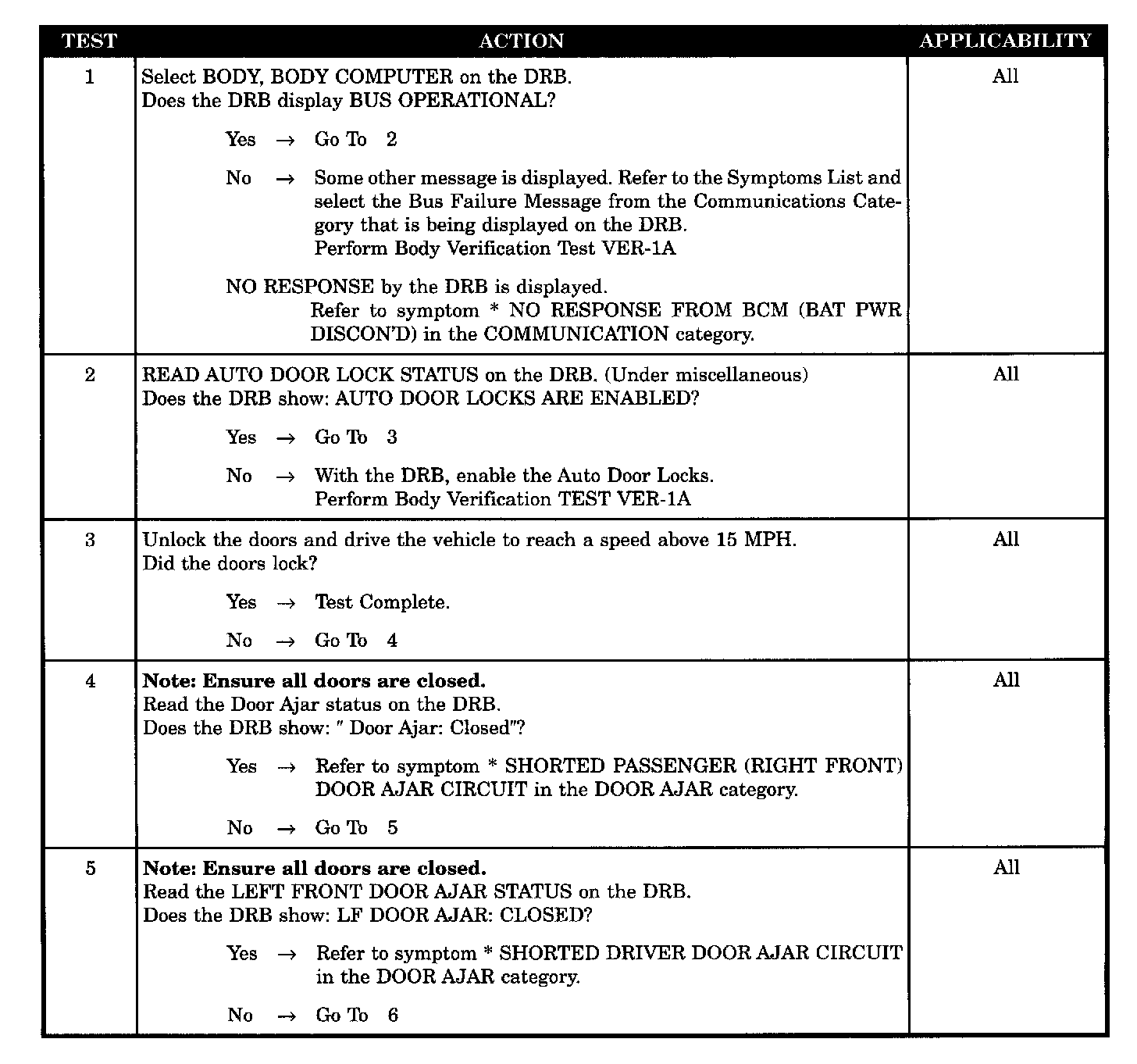

Test 1 - 5:

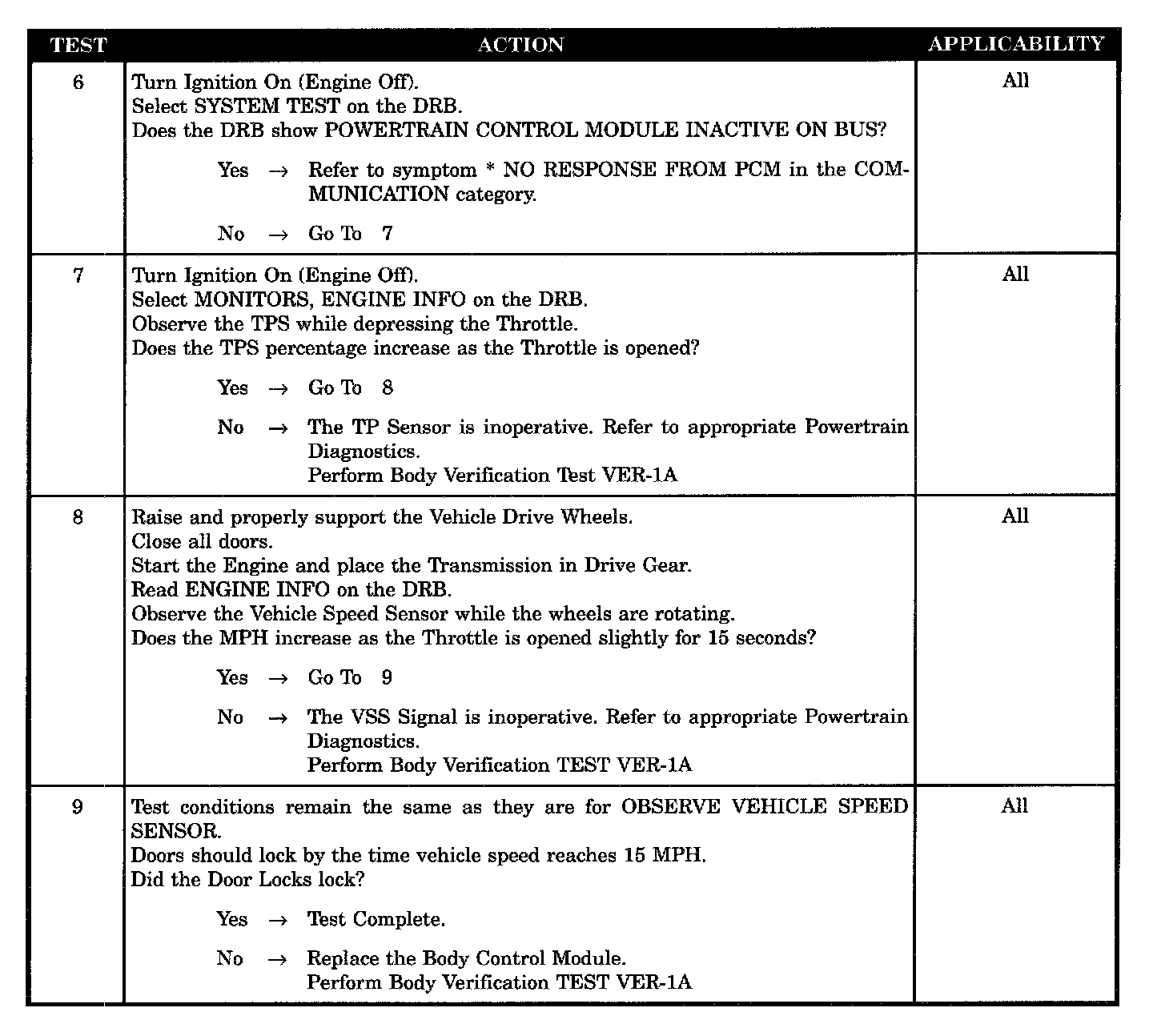

Test 6 - 9:

SYMPTOM
AUTOMATIC (ROLLING) DOOR LOCKS DO NOT OPERATE

POSSIBLE CAUSES
- Link to body communication bus inoperative
- TPS % does not increase as throttle opens
- Auto door lock status incorrect
- Automatic door locks inoperative
- VSS signal to BCM inoperative
