Illuminated Entry Inoperative
Illuminated Entry Inoperative

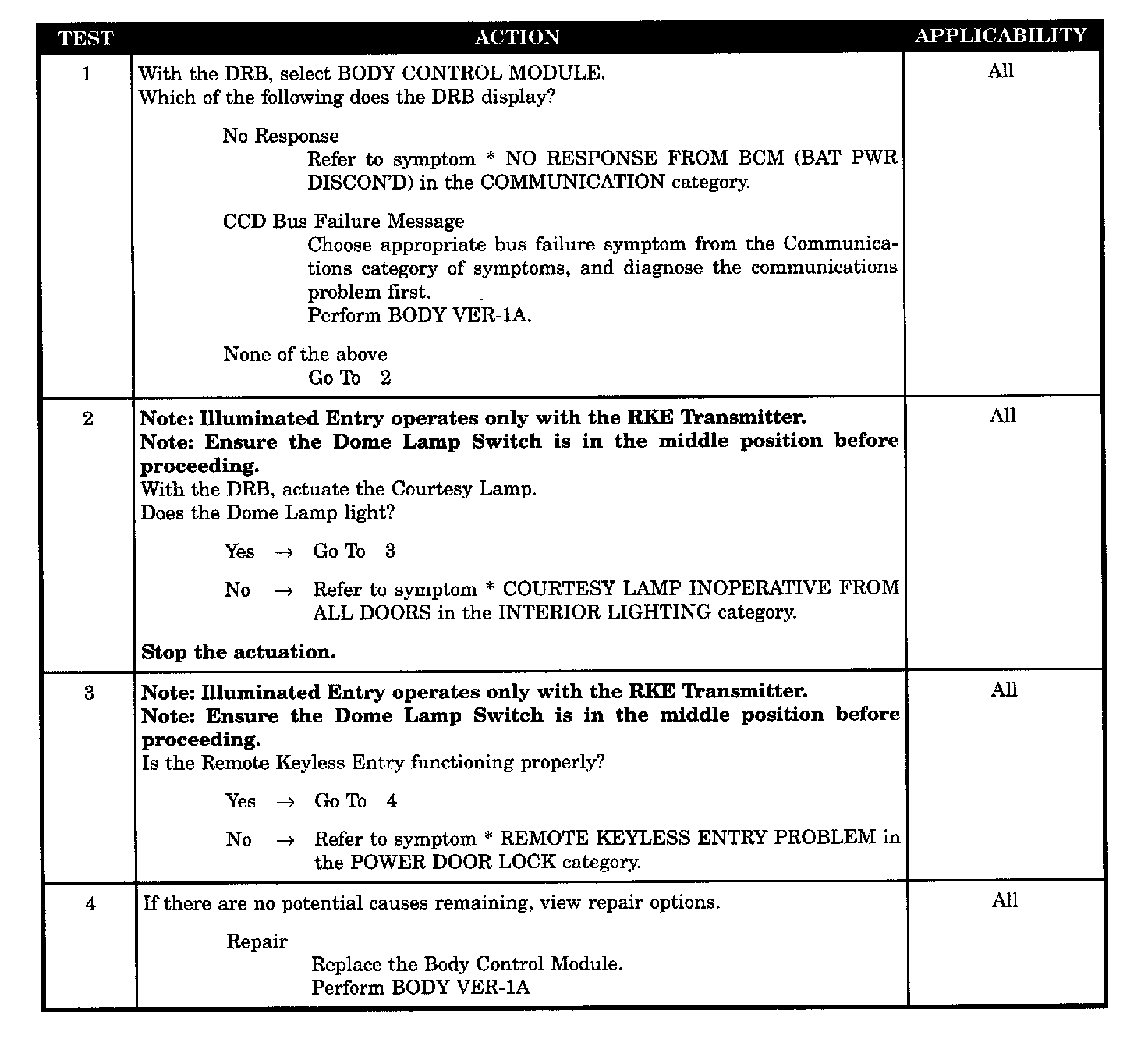

Test 1 - 4:
SYMPTOM
ILLUMINATED ENTRY INOPERATIVE
POSSIBLE CAUSES
-
No response(BCM)/CCD BUS failure
-
BCM defective (RKE function) by default
