Courtesy Lamp On At All Times

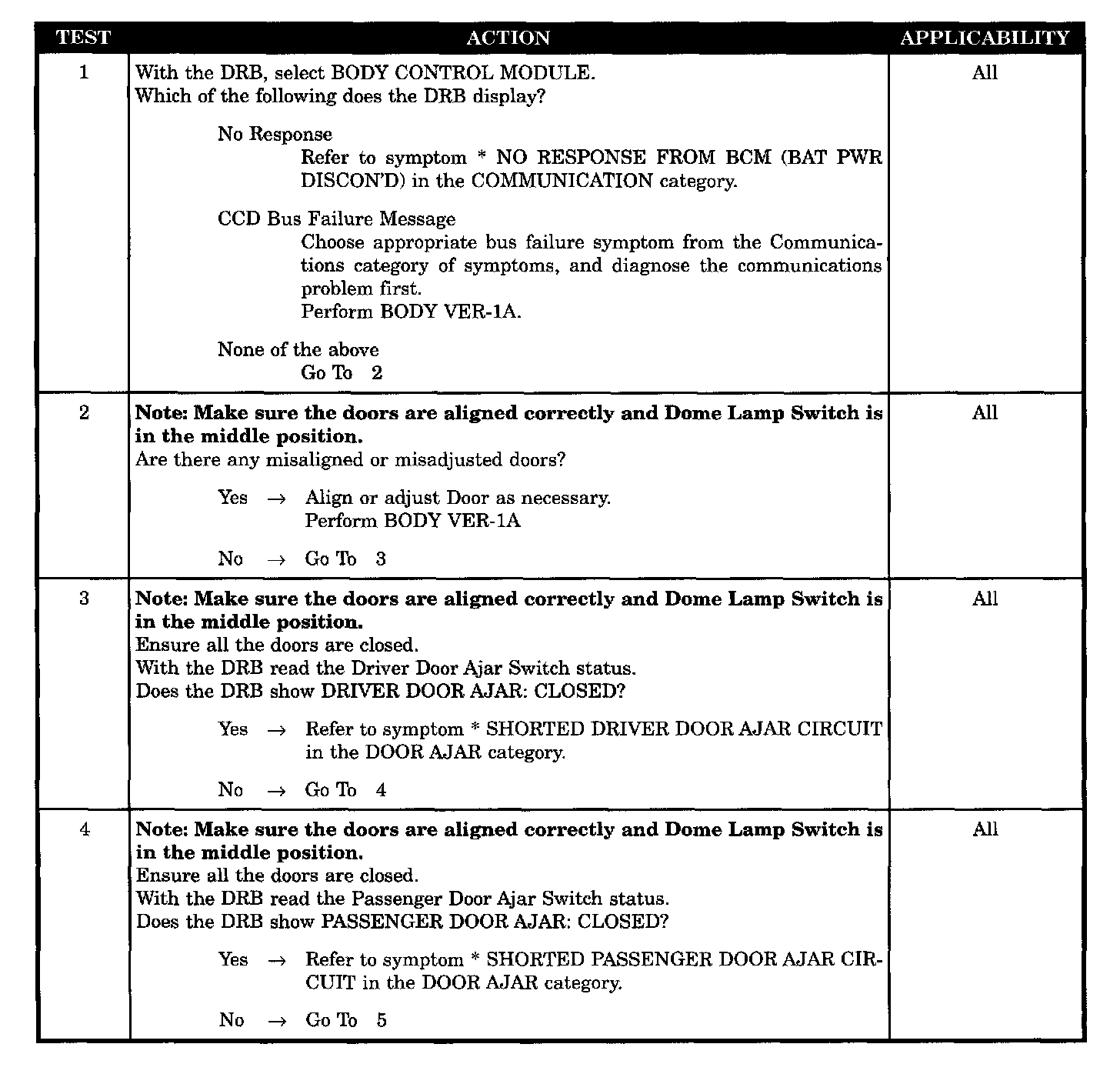

Test 1 - 4:

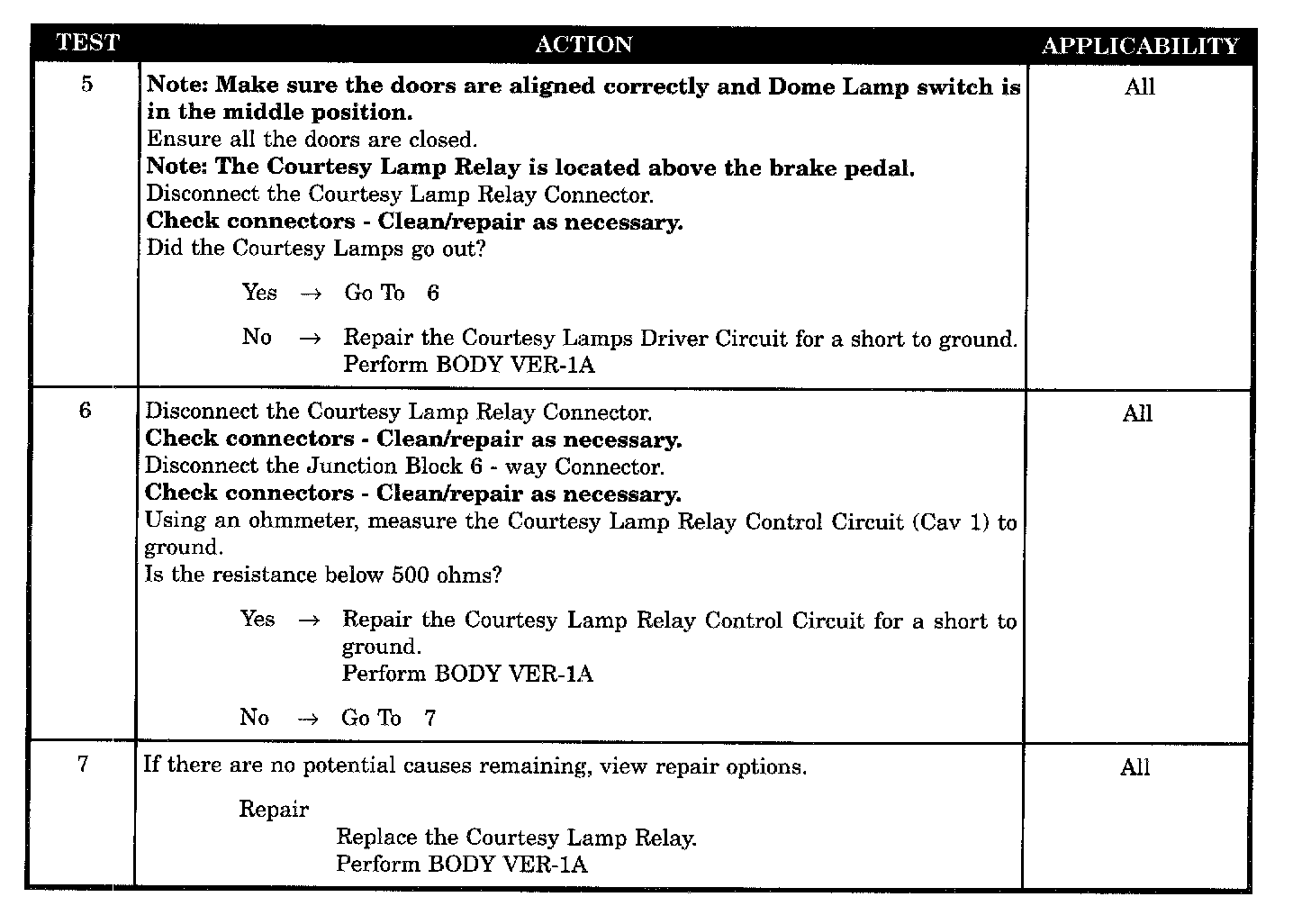

Test 5 - 7:

SYMPTOM
COURTESY LAMP ON AT ALL TIMES

POSSIBLE CAUSES
- No response(BCM)/CCD bus failure
- Entry door misaligned or misadjusted
- Courtesy lamp driver circuit short to ground
- Courtesy lamp relay control CKT short to GND
- Courtesy light RLY defective(short)by default
