Gauges Not Returning to Zero With Key Off

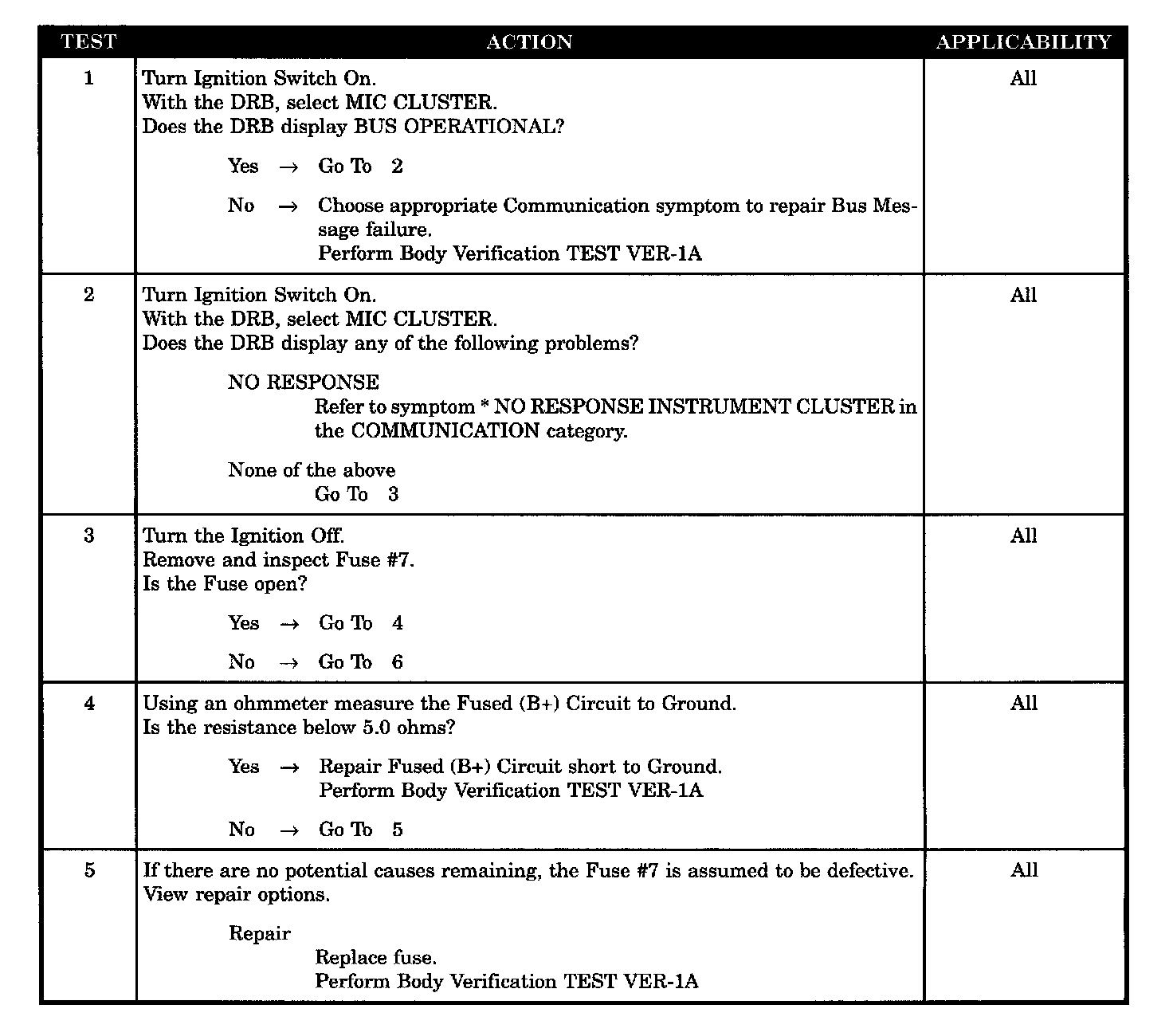

Test 1 - 5:

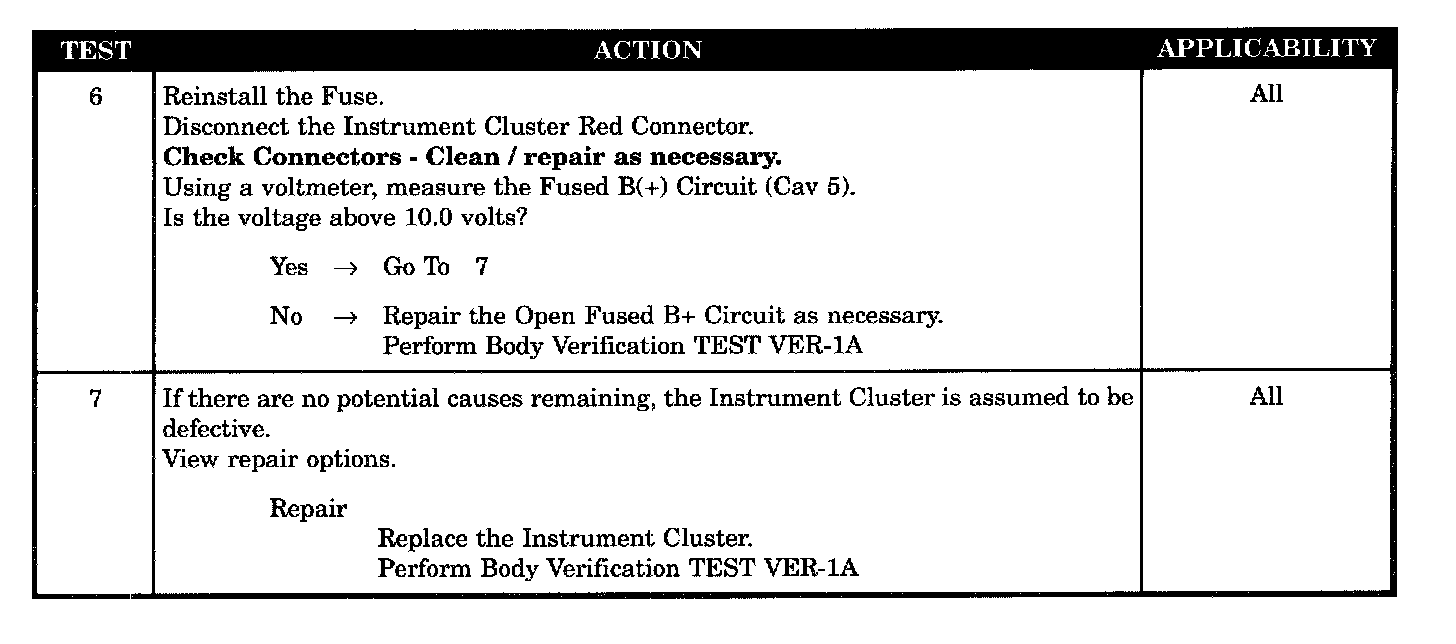

Test 6 - 7:

SYMPTOM
GAUGES NOT RETURNING TO ZERO WITH KEY OFF

POSSIBLE CAUSES
- DRB shows bus operational failure
- Fuse #7 defective default
- Fused B+ circuit short to ground
- Open fused B+ circuit
- Instrument cluster defective
