Any or All Cluster Warning Lamp Problems

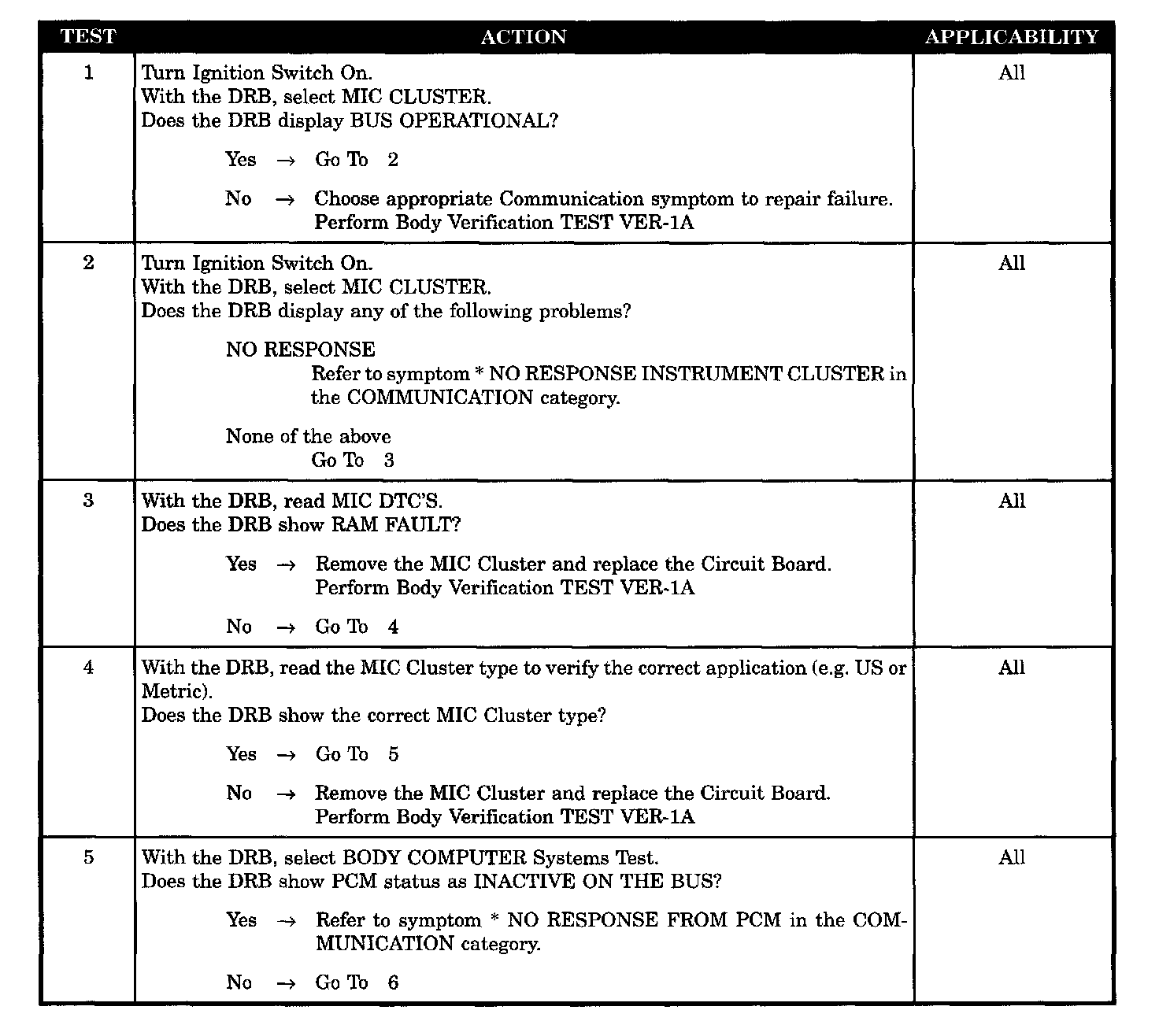

Test 1 - 5:

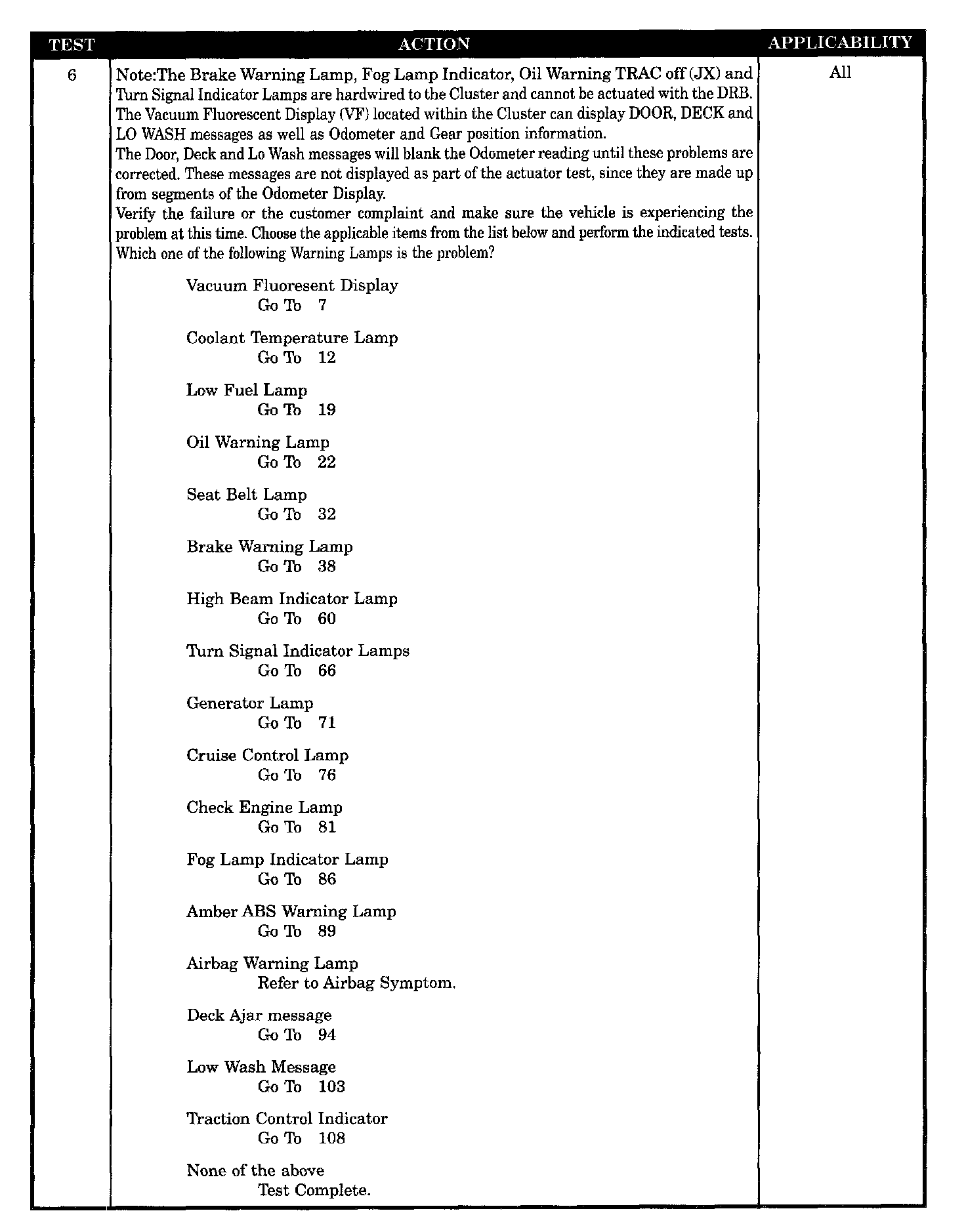

Test 6:

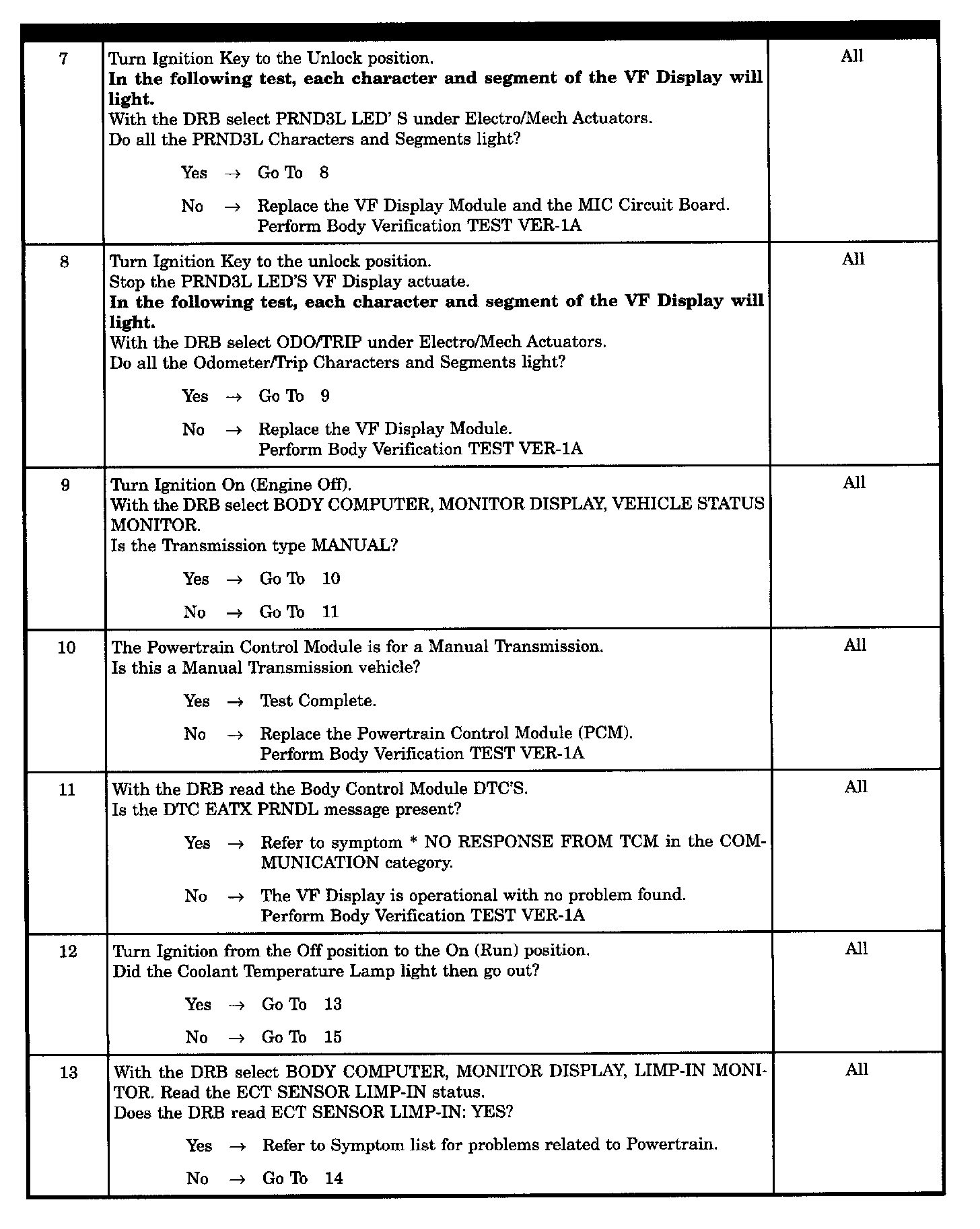

Test 7 - 13:

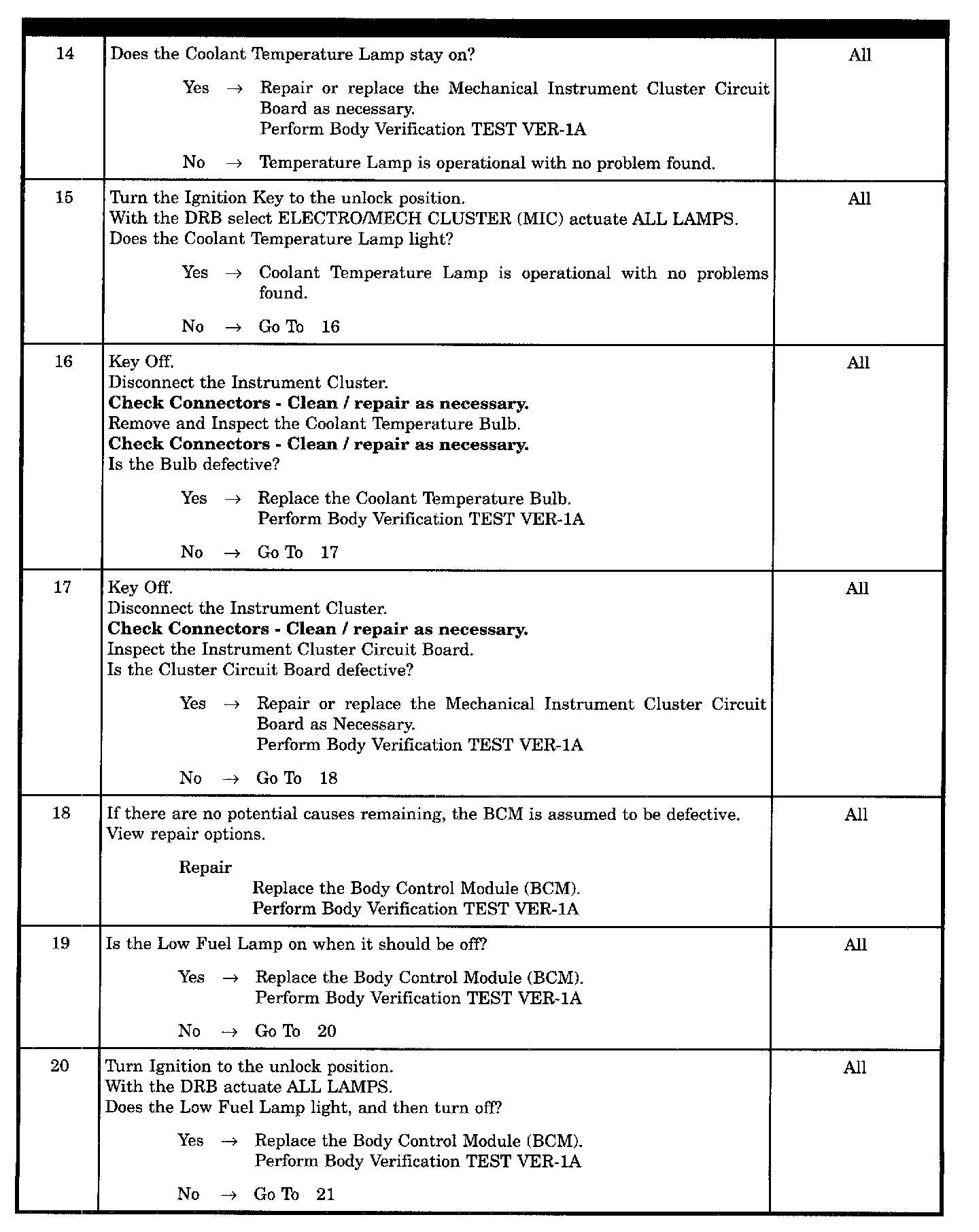

Test 14 - 20:

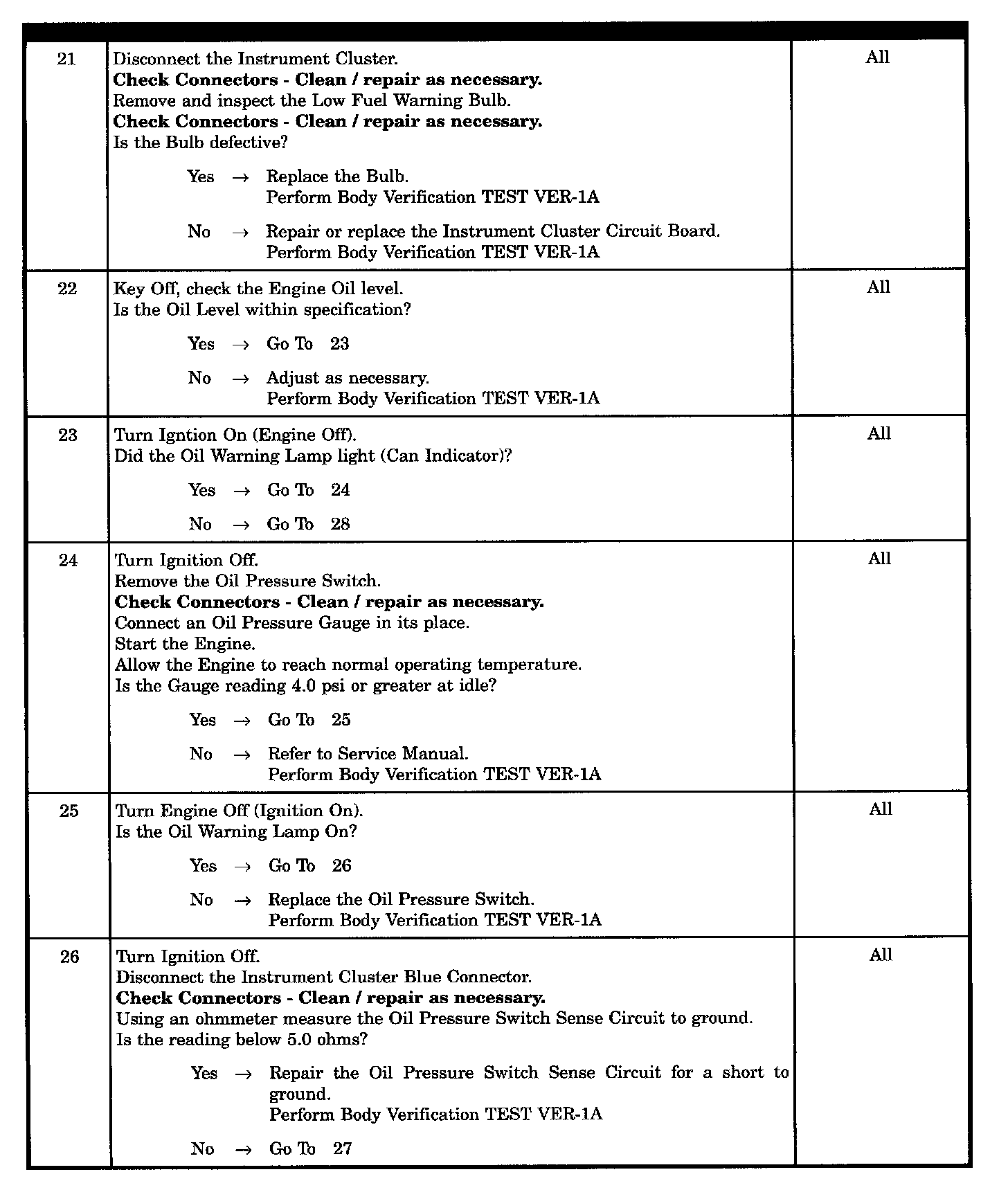

Test 21 - 26:

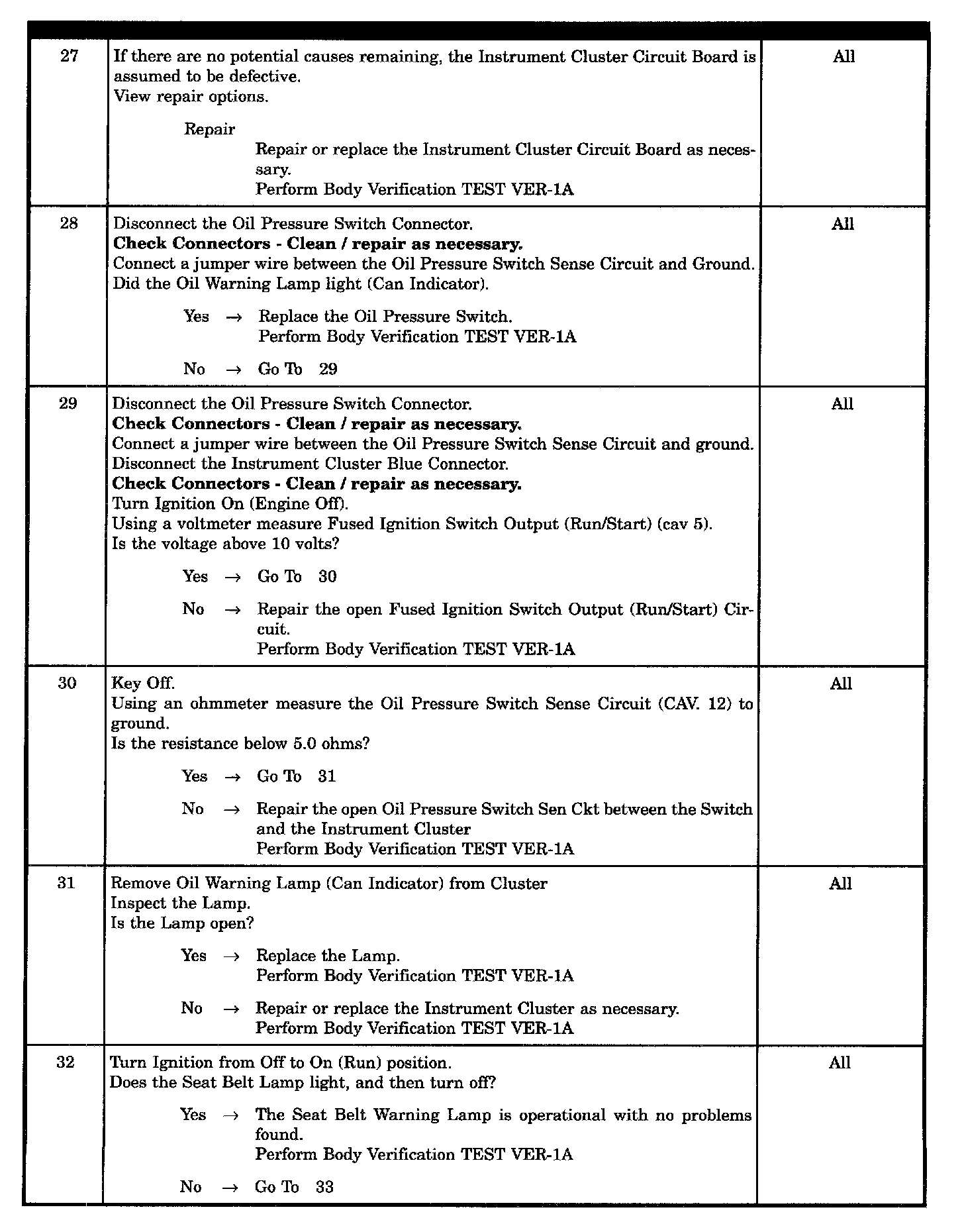

Test 27 - 32:

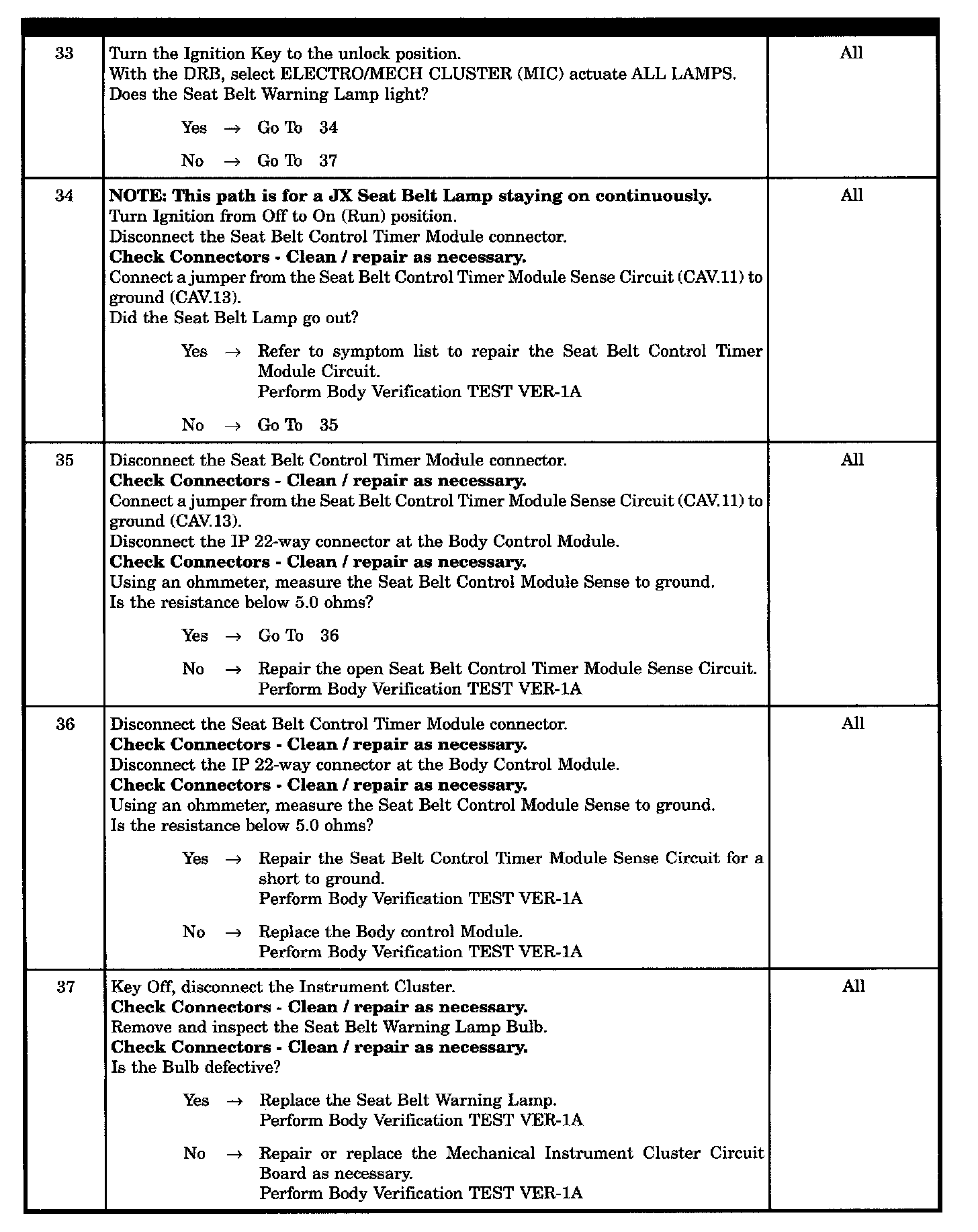

Test 33 - 37:

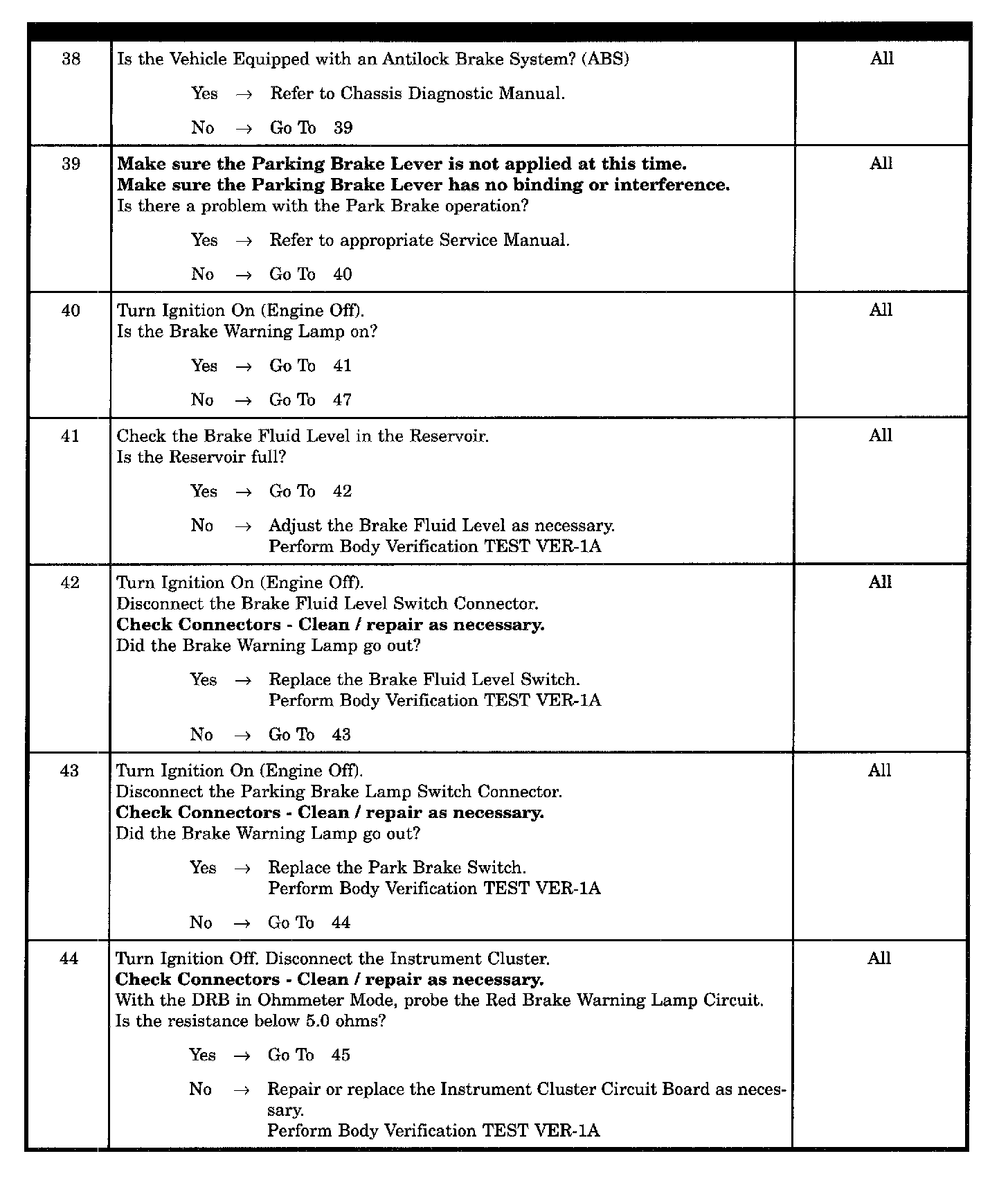

Test 38 - 44:

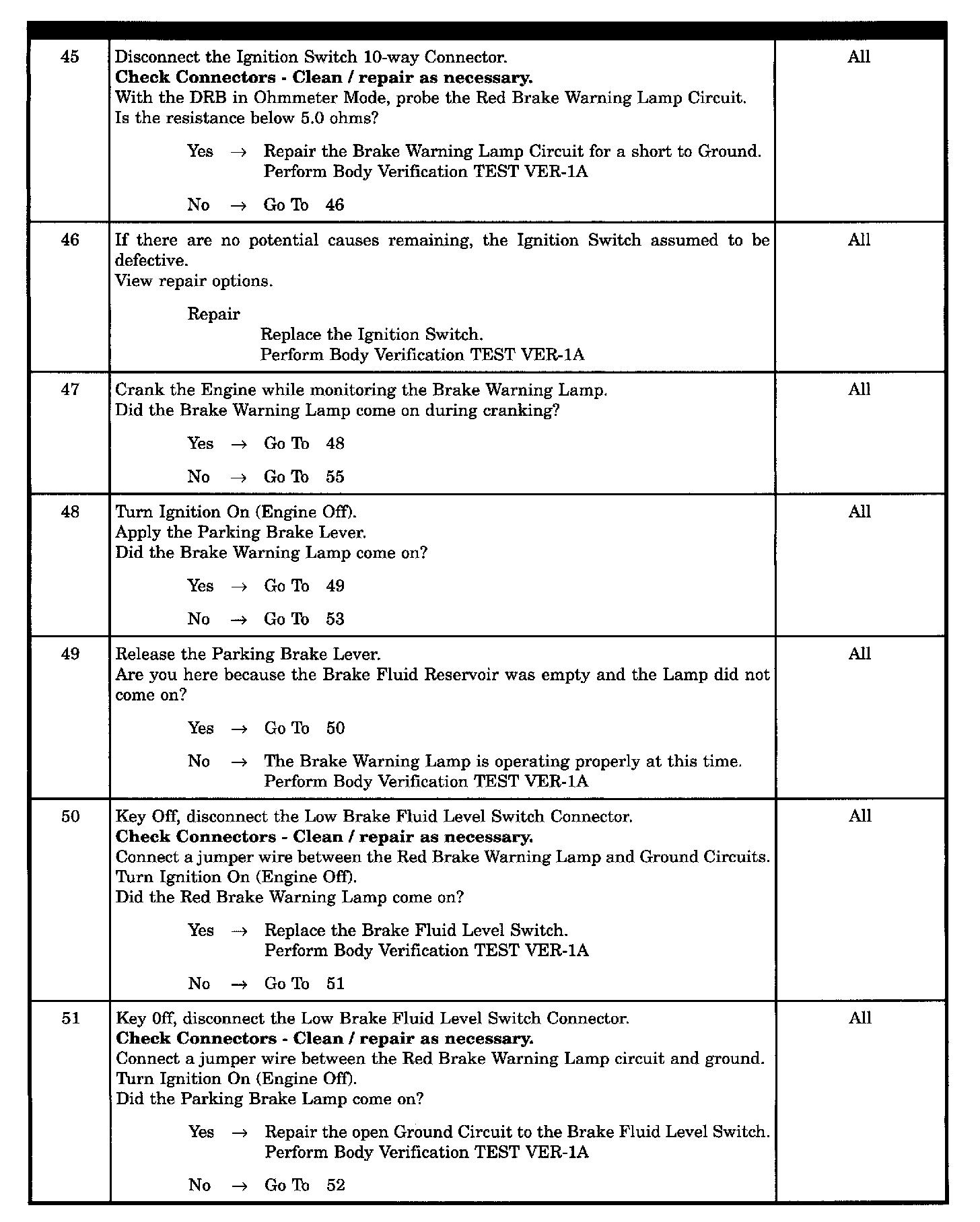

Test 45 - 51:

Test 52 - 57:

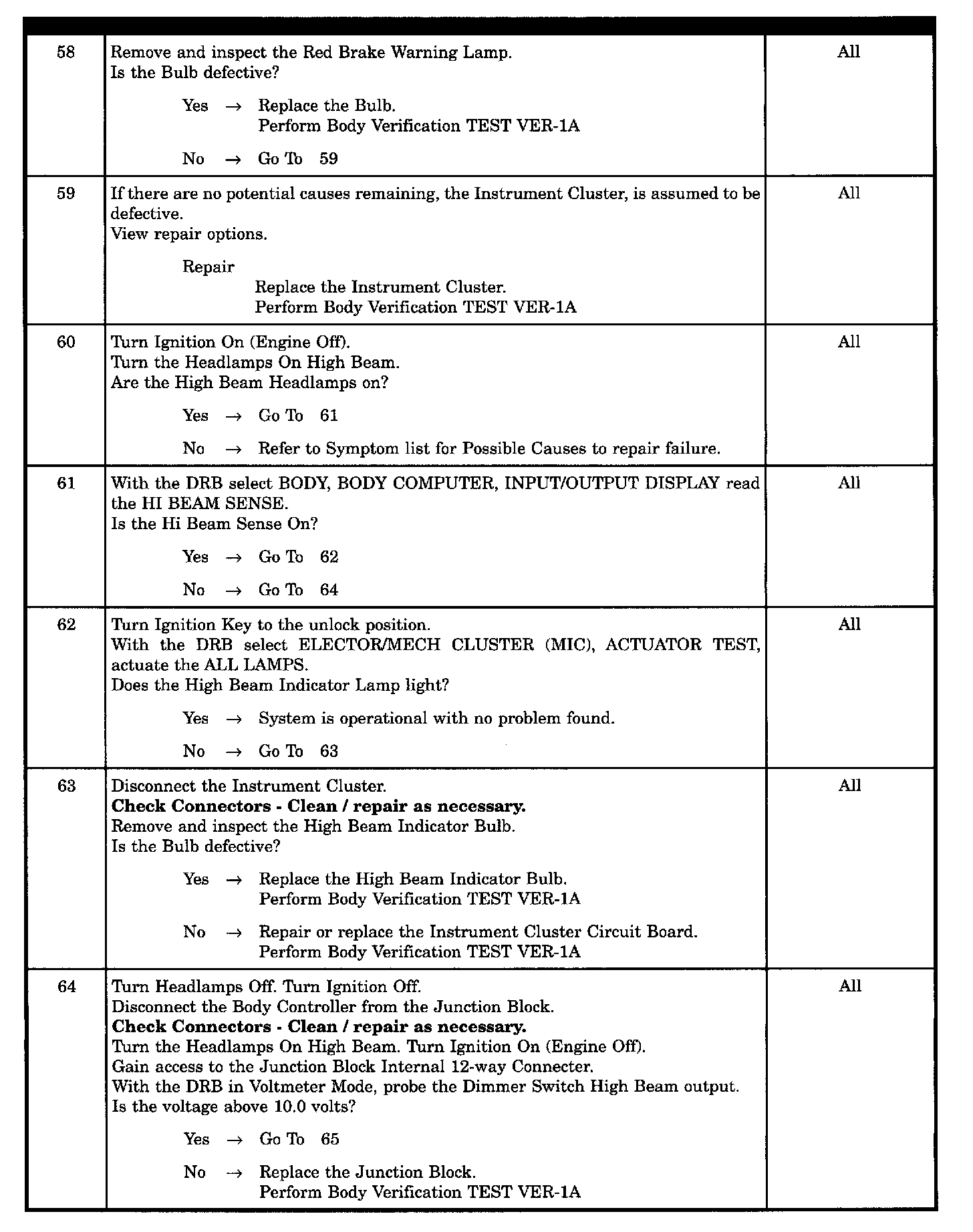

Test 58 - 64:

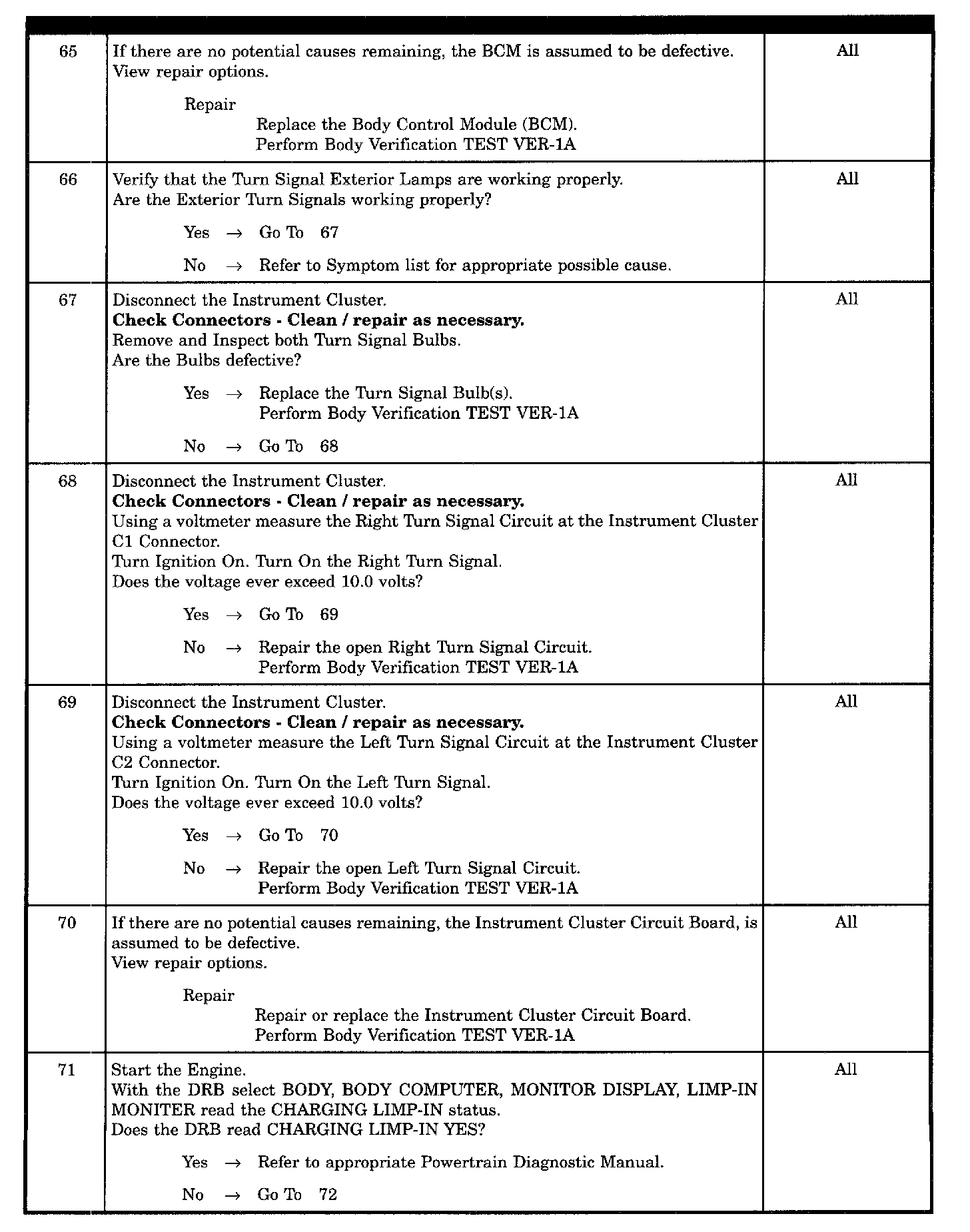

Test 65 - 71:

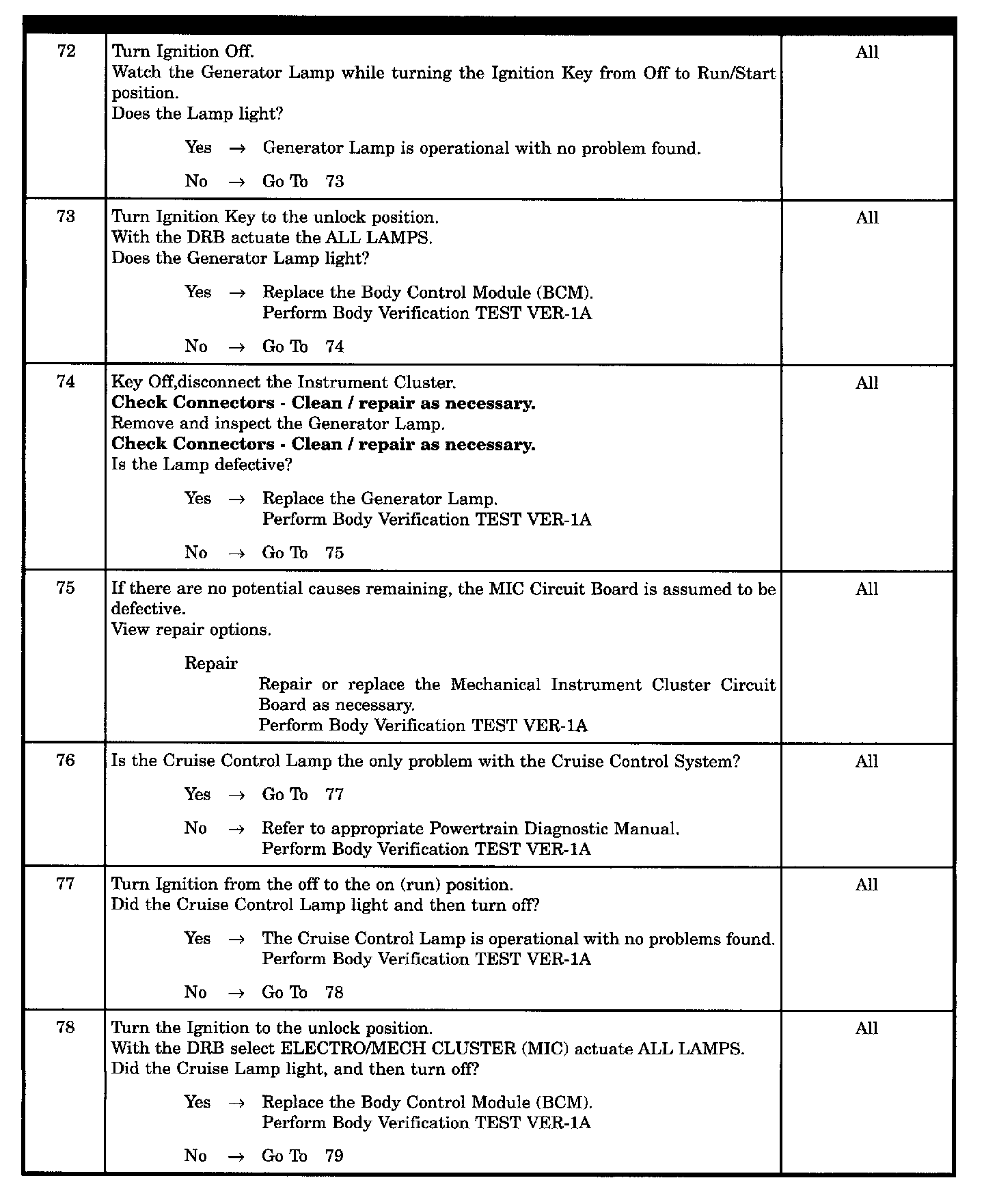

Test 72 - 78:

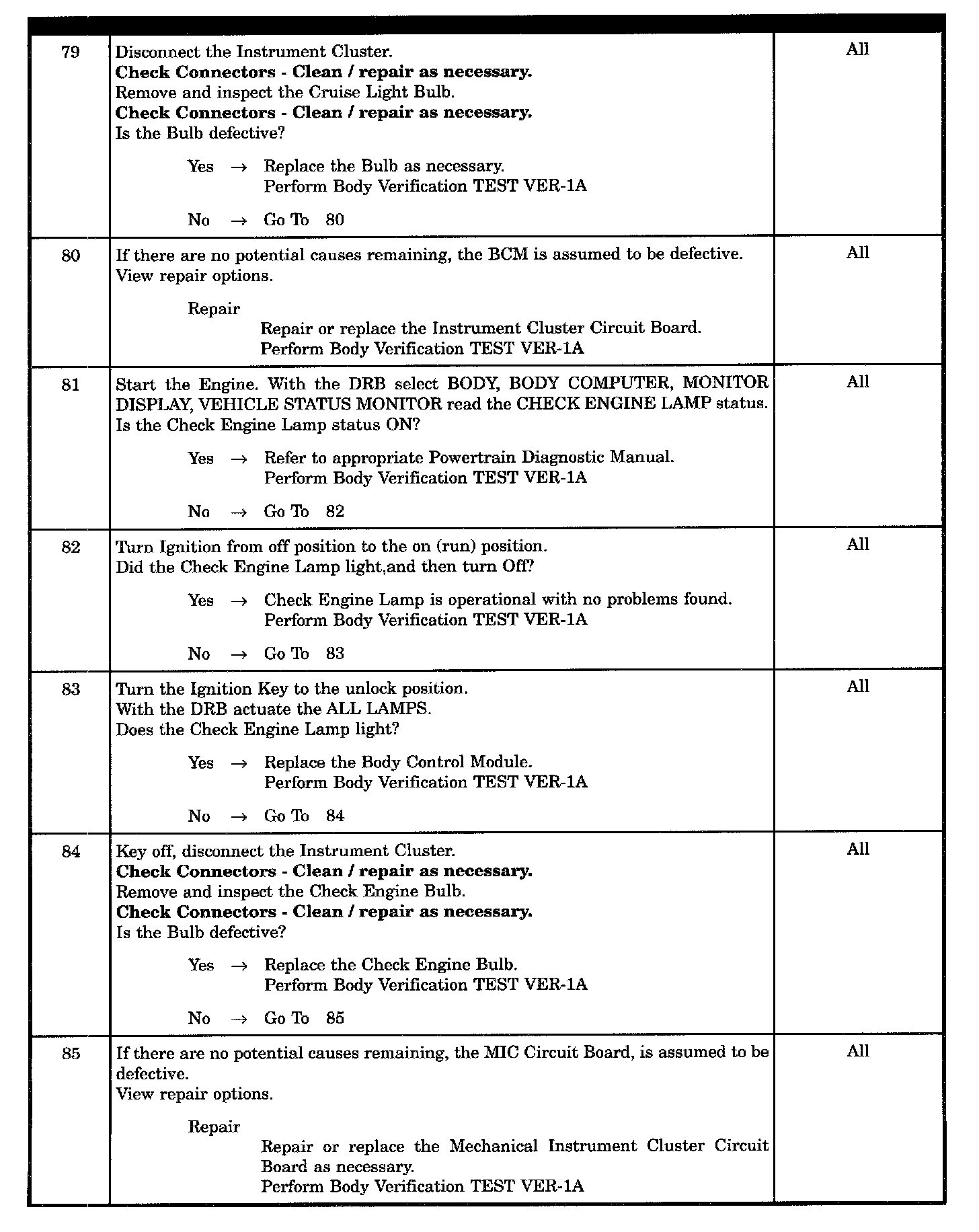

Test 79 - 85:

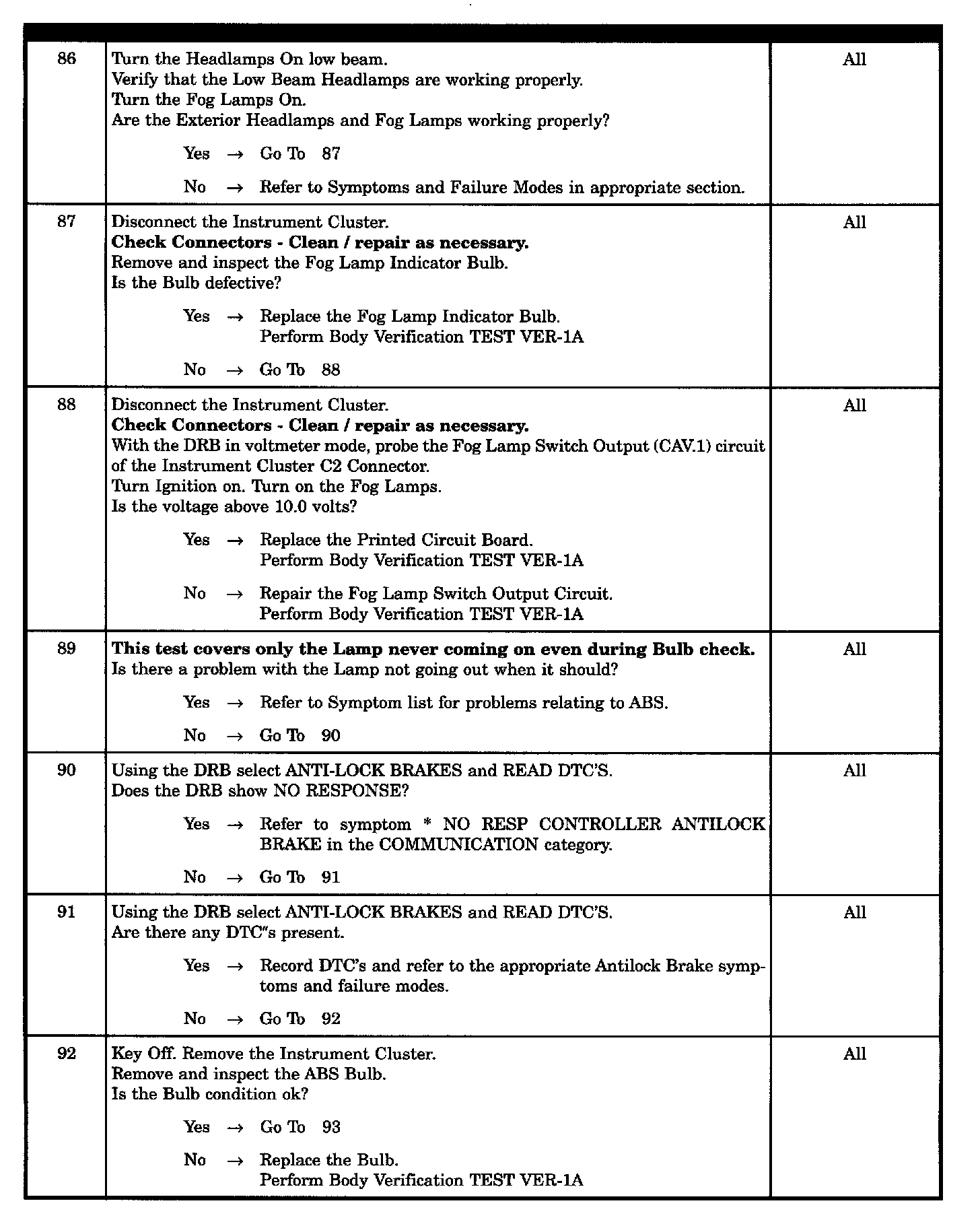

Test 86 - 92:

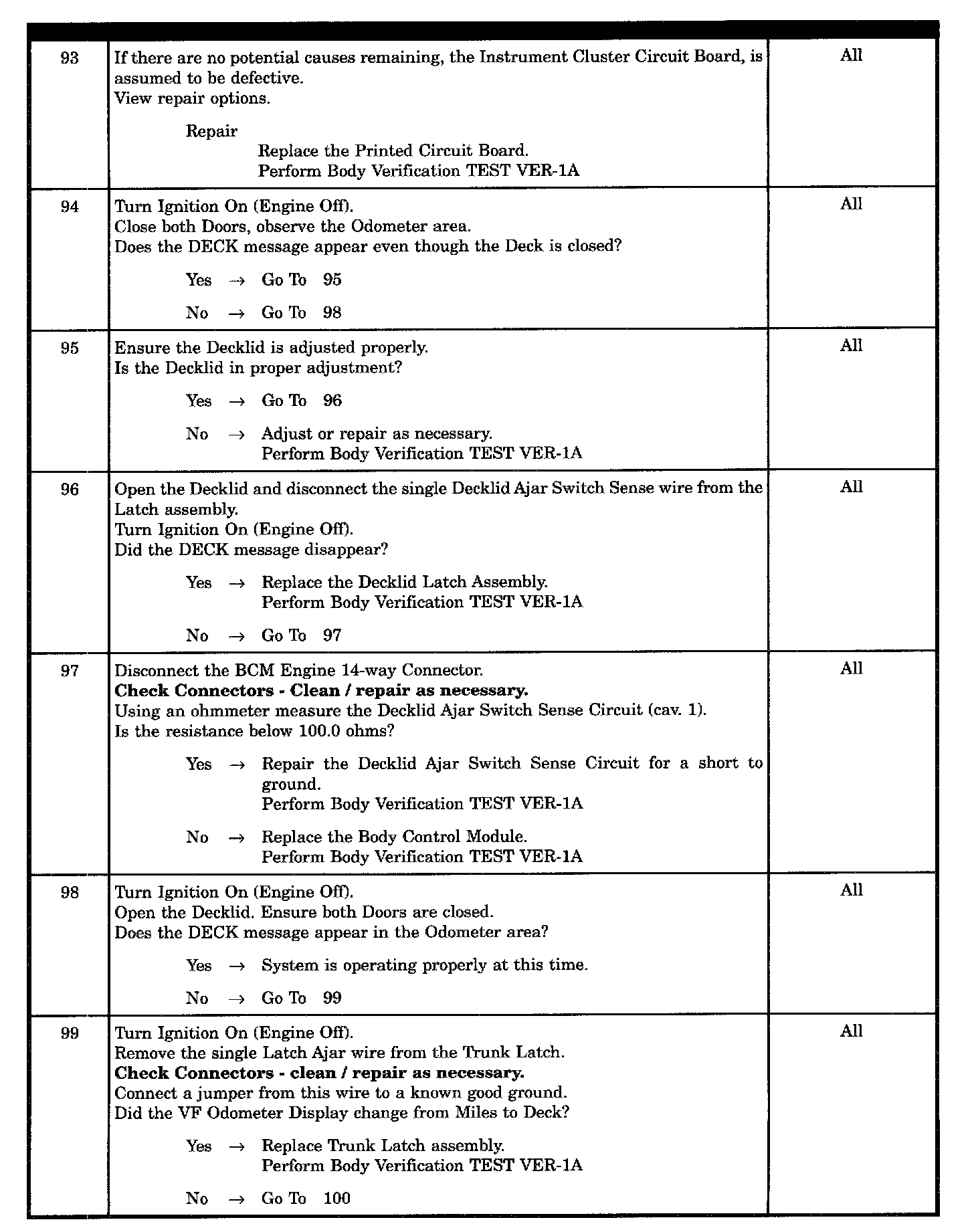

Test 93-99:

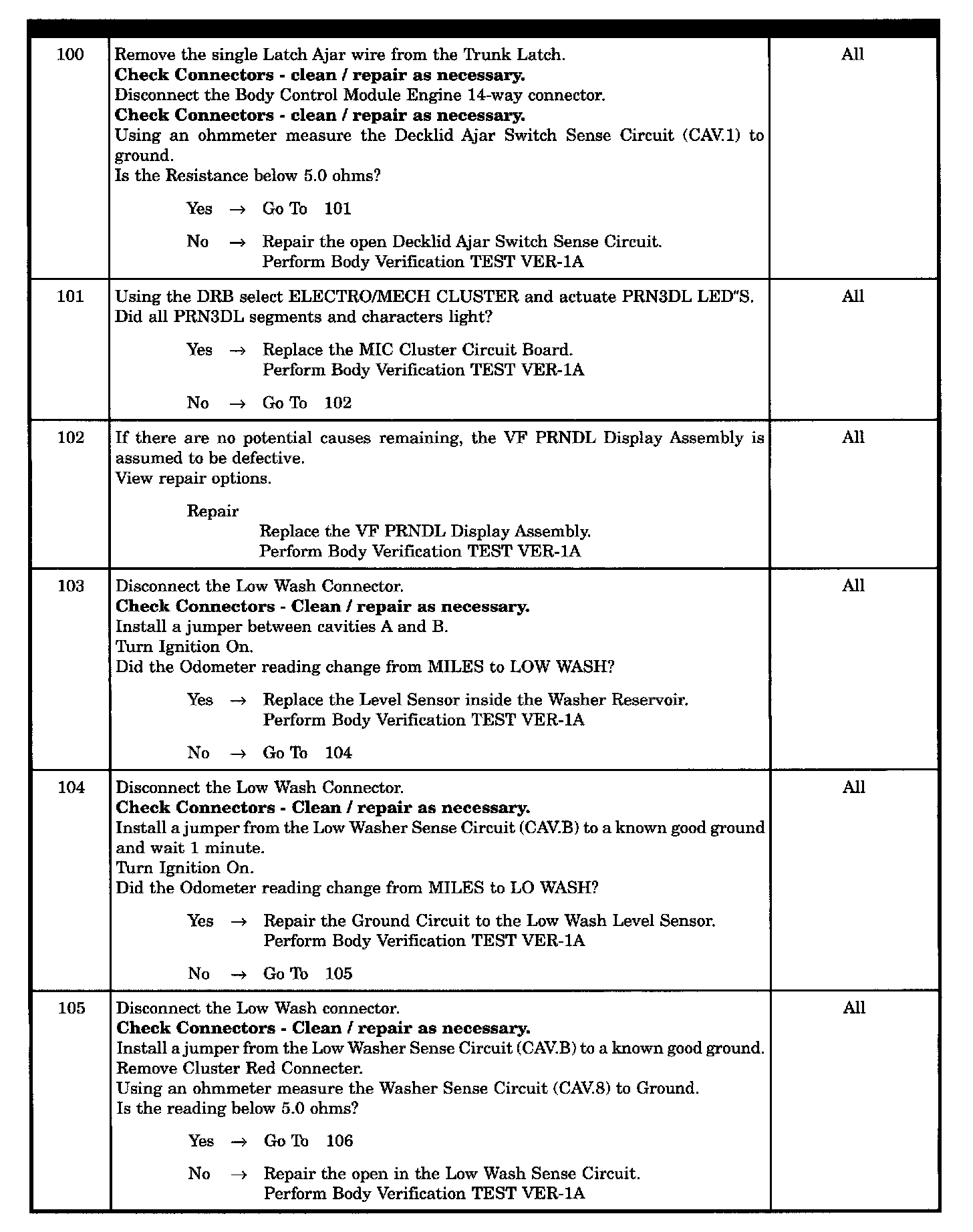

Test 100 - 105:

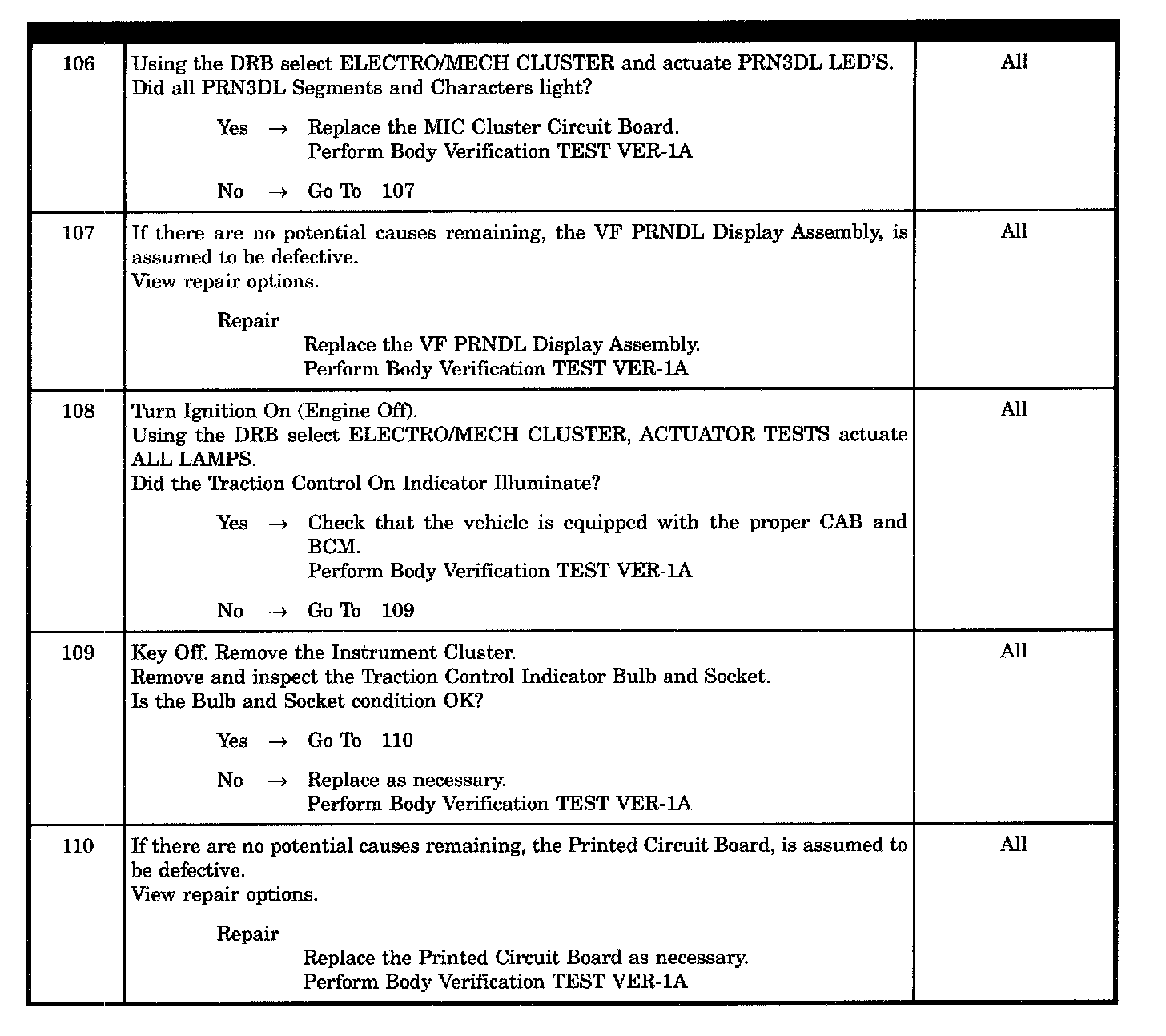

Test 106 - 110:

SYMPTOM
ANY OR ALL CLUSTER WARNING LAMP PROBLEMS

POSSIBLE CAUSES
- Turn signal lamps not working
- Deck message not appearing in odo area
- Exterior head/fog lamps defective
- High beam headlamps not lighting
- High beam indicator lamp not lighting
- JX seat belt warning lamp stays ON
- Seat belt lamp stays ON
- Not ABS equipped vehicle
- Park brake operation defective
- Traction control on indicator defective
- BCM high beam indicator lamp ckt defective
- Fused ignition switch output circuit open
- High beam indicator bulb defective
- Low fuel/lamp bulb defective
- Low oil pressure
- Oil level low
- Oil warning lamp/bulb defective
- Check engine lamp status ON
- Check engine lamp stays ON
- Cruise control lamp stays ON
- Cruise control lamp sys failure
- DRB reads charging limp in yes
- Generator lamp not lighting
- Junction block defective
- ABS warning lamp/bulb defective
- Brake fluid level switch GND circuit open
- Brake warning lamp driver circuit
- Brake warning lamp ground circuit open
- Check engine lamp/bulb defective
- Coolant temperature bulb defective
- Cruise control lamp/bulb defective
- Decklid latch assembly defective
- Defective seat belt warning lamp/bulb
- Fog lamp indicator bulb defective
- Fog lamp switch output circuit defective
- Generator lamp/bulb defective
- Left turn signal circuit open
- Low wash level ground circuit defective
- Low wash sense circuit
- Oil press switch sense CKT short to GND
- Oil pressure switch sense circuit open
- Red brake warning lamp/bulb defective
- Right turn signal circuit open
- Seat belt timer module sense circuit open
- Seat belt timer module sense circuit short
- Traction control bulb/socket defective
- Turn signal bulbs defective
- Coolant temp lamp no function
- Coolant temp lamp stays ON
- DRB reads ECT sensor limp in yes
- ABS warning lamp stays ON
- Airbag warning lamp problem
- Decklid adjustment defective
- Defective oil pressure switch
- DRB shows DTC's are present
- EATX PRNDL message present
- Instrument cluster circuit board defective
- Instrument cluster defective
- Trunk latch assembly defective
- Washer level sensor defective
- Brake fluid level low
- Brake fluid reservoir low
- Deck AJAR switch sense circuit open
- Decklid ajar switch sense circuit short
- Red brake warning lamp circuit short to GND
- BCM check engine lamp output circuit DEF
- BCM coolant temperature lamp output defect
- BCM cruise control lamp output defective
- BCM generator lamp output circuit defective
- BCM low fuel lamp output defective
- Brake fluid level switch defective
- Defective BCM low fuel lamp output
- Defective brake fluid level switch
- Defective ignition switch
- Defective MIC circuit board
- Defective park brake switch
- Ignition switch defective
- Instrument cluster circuit board defective
- Instrument cluster circuit board defective
- Instrument cluster circuit board defective
- Instrument cluster circuit board faulty
- Instrument cluster CKT BD defect
- Instrument cluster defective
- MIC circuit board defective
- MIC circuit board defective
- MIC circuit board defective
- MIC circuit board defective
- Park brake switch defective
- Power control module defective
- VF PRNDL display assembly defective
- VF PRNDL display assembly defective
- Open red brake lamp circuit
- Red brake warning lamp circuit open
- Defective MIC circuit board
- Odometer trip characters not lighting
- PRND3L characters not lighting
- BCM decklid AJAR CKT output DEF
- Defective BCM seat belt circuit
- DRB displays ram fault
- DRB shows bus operational failure
- Instrument cluster circuit board defect
- Instrument cluster circuit board defective
- MIC circuit board defective
- MIC circuit board defective
- MIC cluster mismatch
- Oil pressure switch defective
