Driver Door Ajar Circuit Open

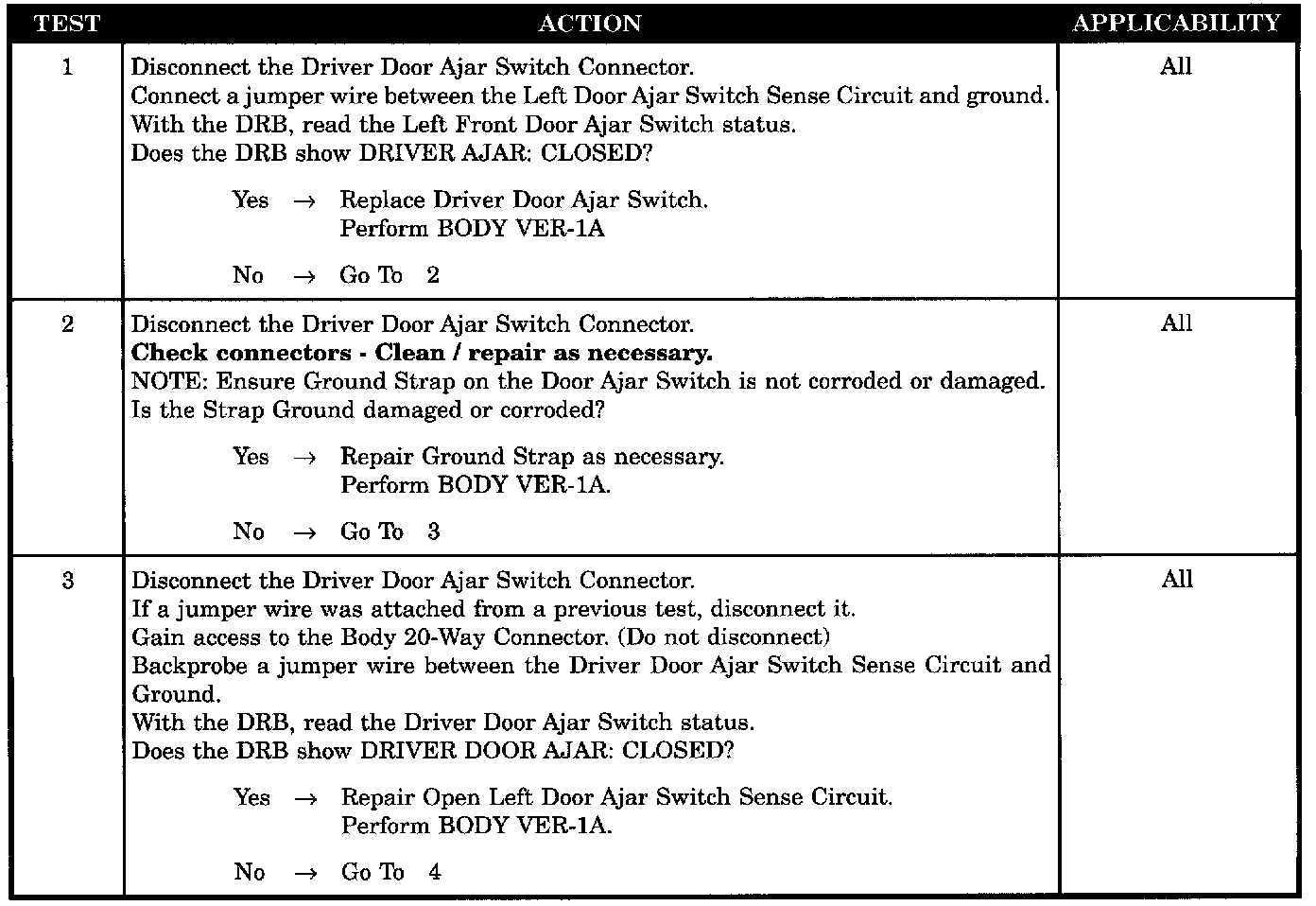

Test 1-3:

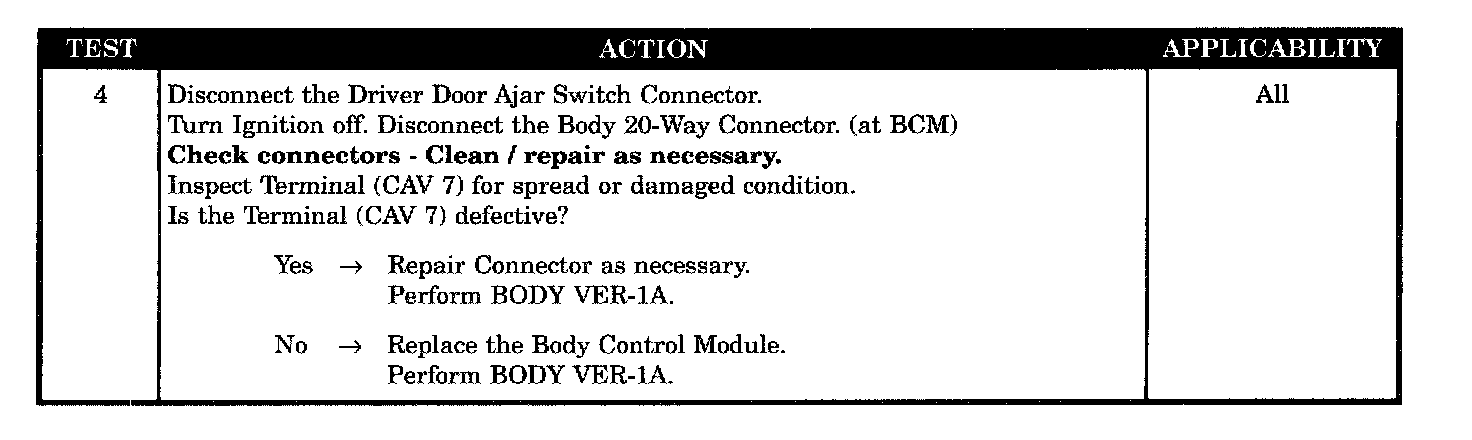

Test 4:

SYMPTOM
OPEN DRIVER DOOR AJAR CIRCUIT

TEST NOTE
This symptom is diagnosed using the test OPEN DRIVER DOOR AJAR CIRCUIT.

POSSIBLE CAUSES
- Driver door ajar switch defective open
- Driver door ajar (closed) switch sense circuit open
- Driver door switch ground strap corroded/damaged
- Body 20 way connector (cav 7) defective
- Body control module defective open input (cav 7)
