Convertible Top

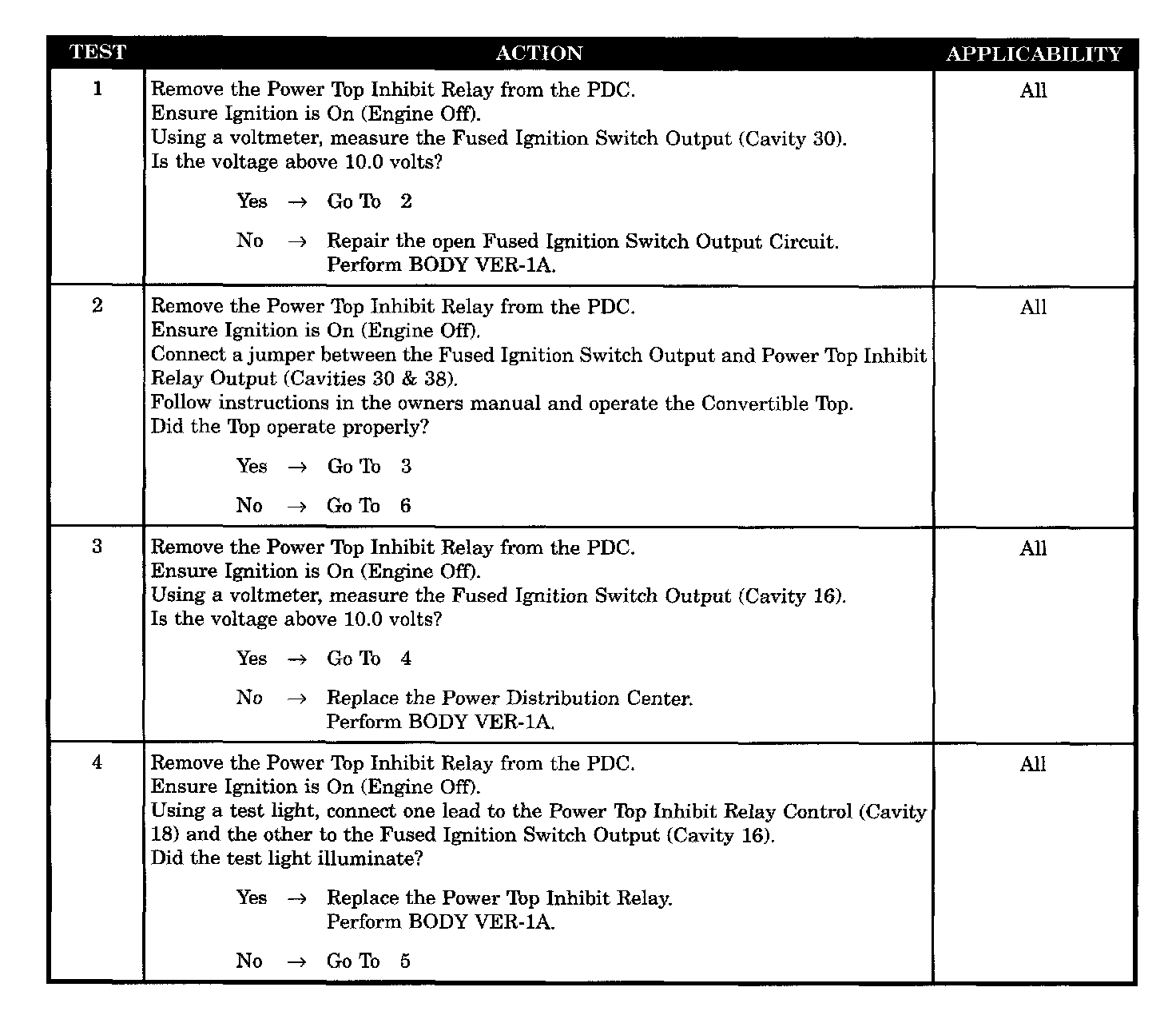

Test 1 - 4:

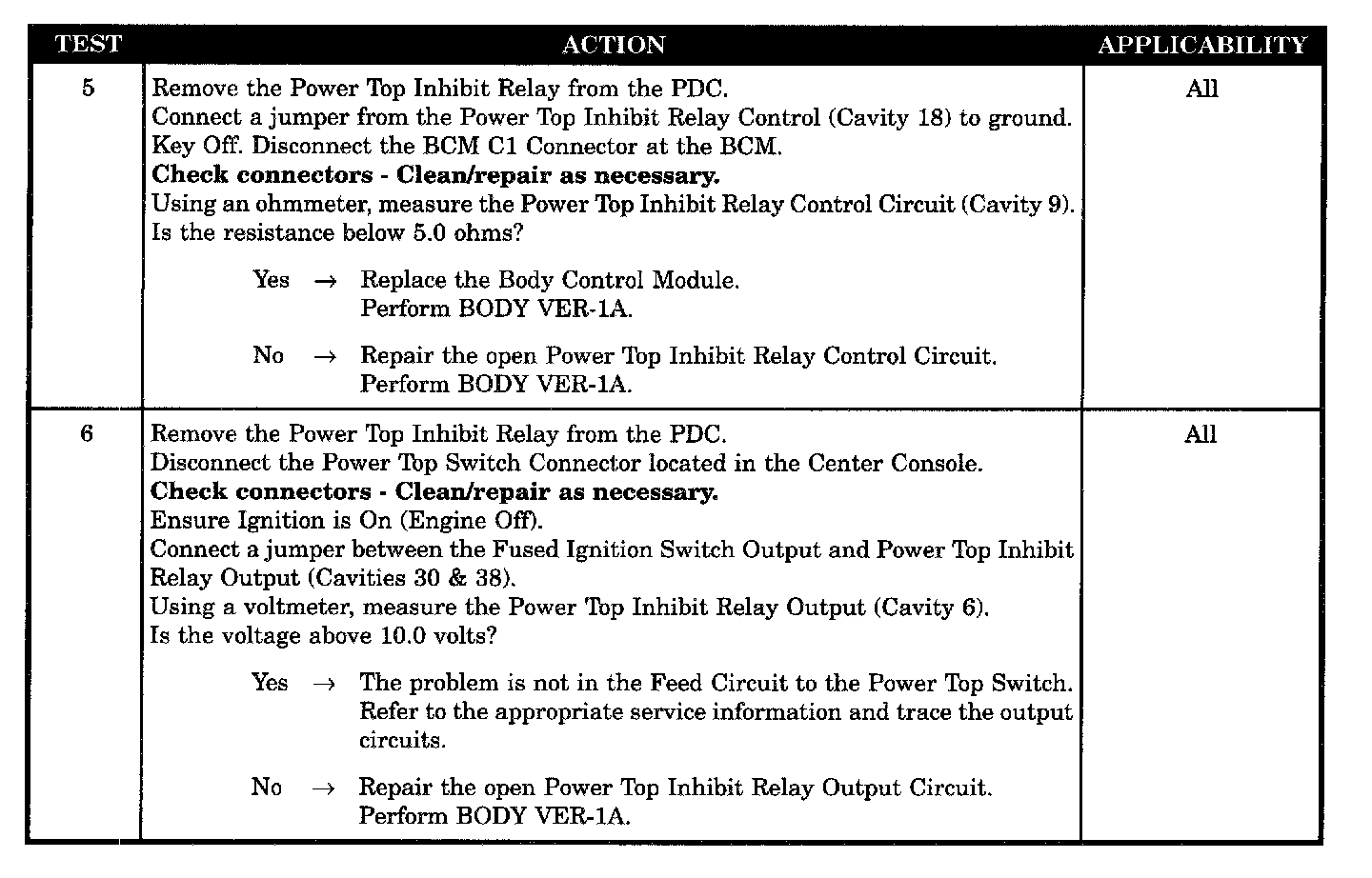

Test 5 - 6:

SYMPTOM
INOPERATIVE POWER TOP MOTOR

POSSIBLE CAUSES
- Fused ignition switch output circuit open
- PDC defective - fused ignition switch output
- Power top inhibit relay control circuit open
- Power top inhibit relay output circuit open
- Power top inhibit relay defective - coil open
- BCM defective relay control function
- Problem not with feed ckt to power top switch
