Not Receiving Bus Messages Correctly

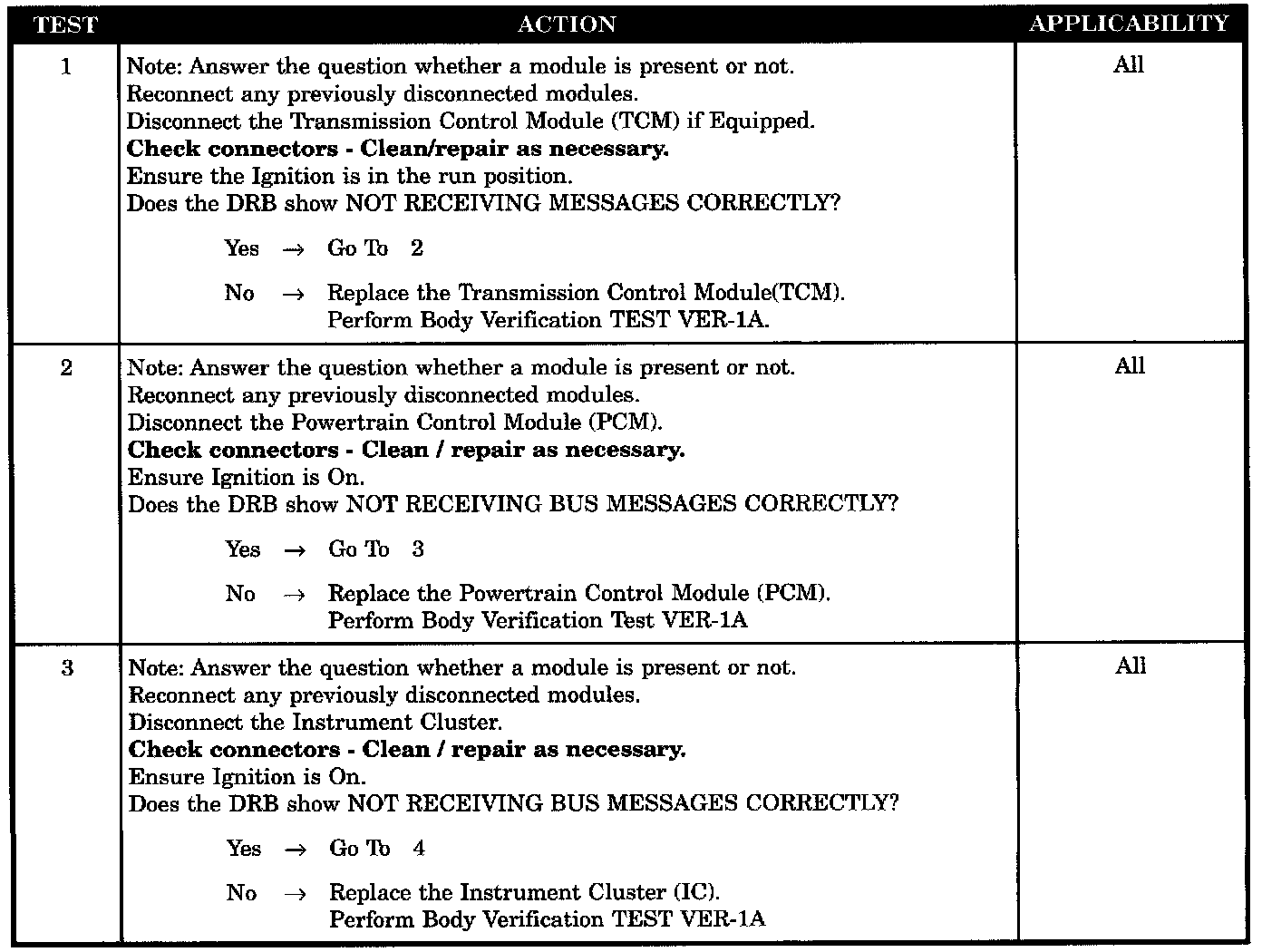

Test 1 - 3:

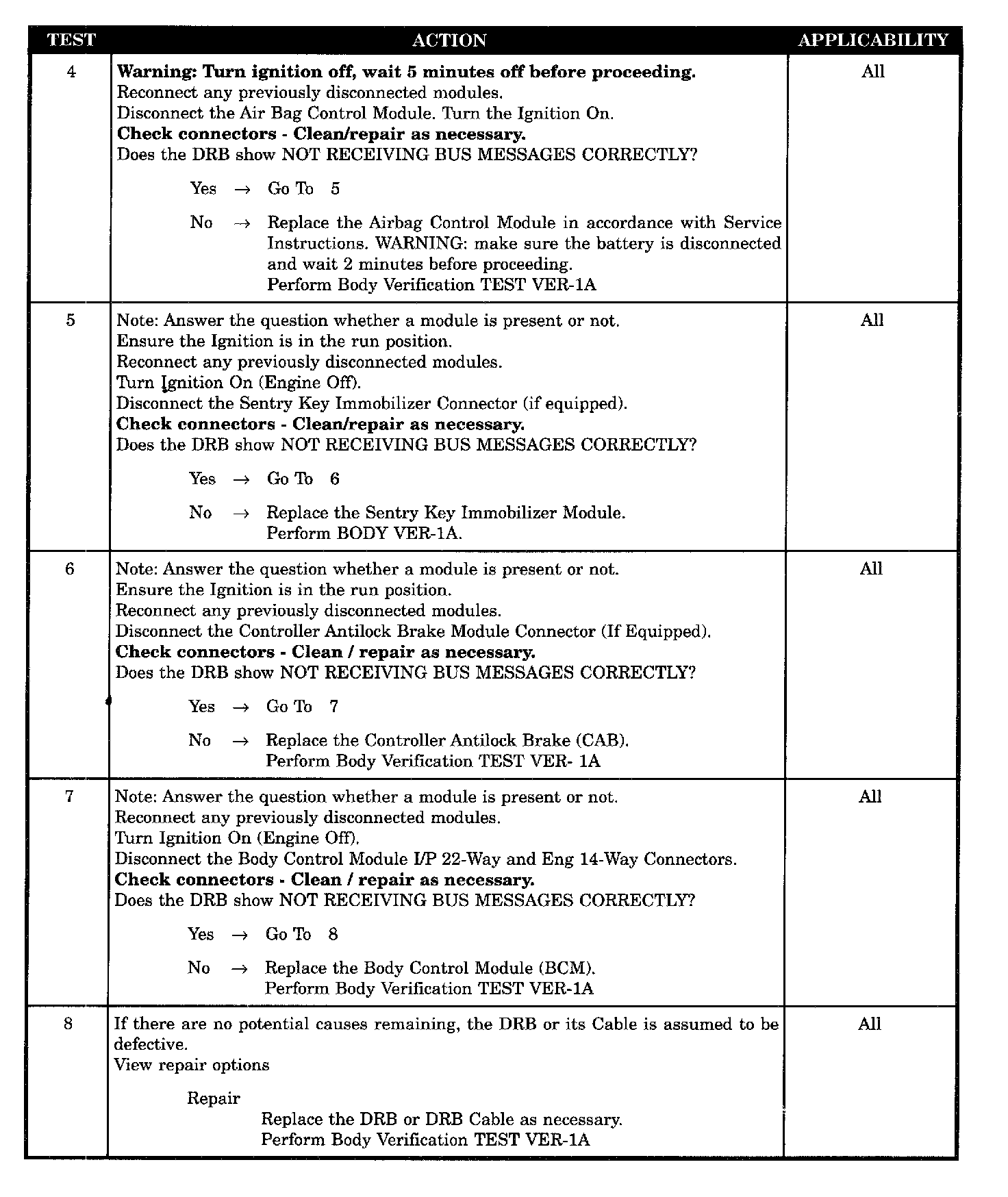

Test 4 - 8:

SYMPTOM
NOT RECEIVING BUS MESSAGES PROPERLY

POSSIBLE CAUSES
- Defective DRB/receiving MSGS incorrectly
- CCD IC not receiving bus messages correctly
- CCD PCM not receiving bus messages correctly
- CCD CAB not receiving bus messages correctly
- CCD BCM not receiving bus messages correctly
- CCD ACM not receiving bus messages correctly
- CCD SKIM not receiving bus messages correctly
- CCD TCM not receiving bus messages correctly
