No Response From Instrument Cluster

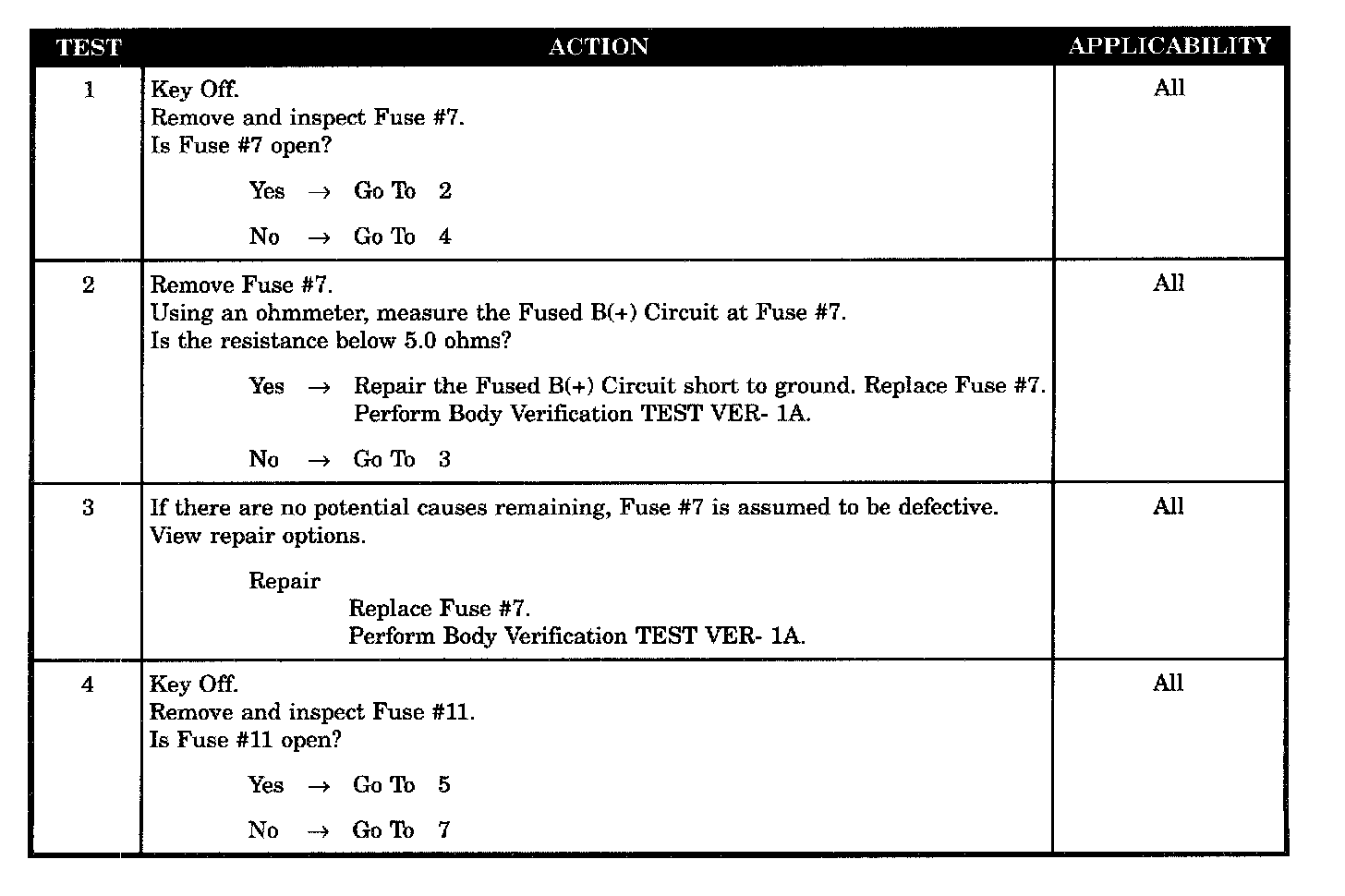

Test 1 - 4:

Test 5 - 9:

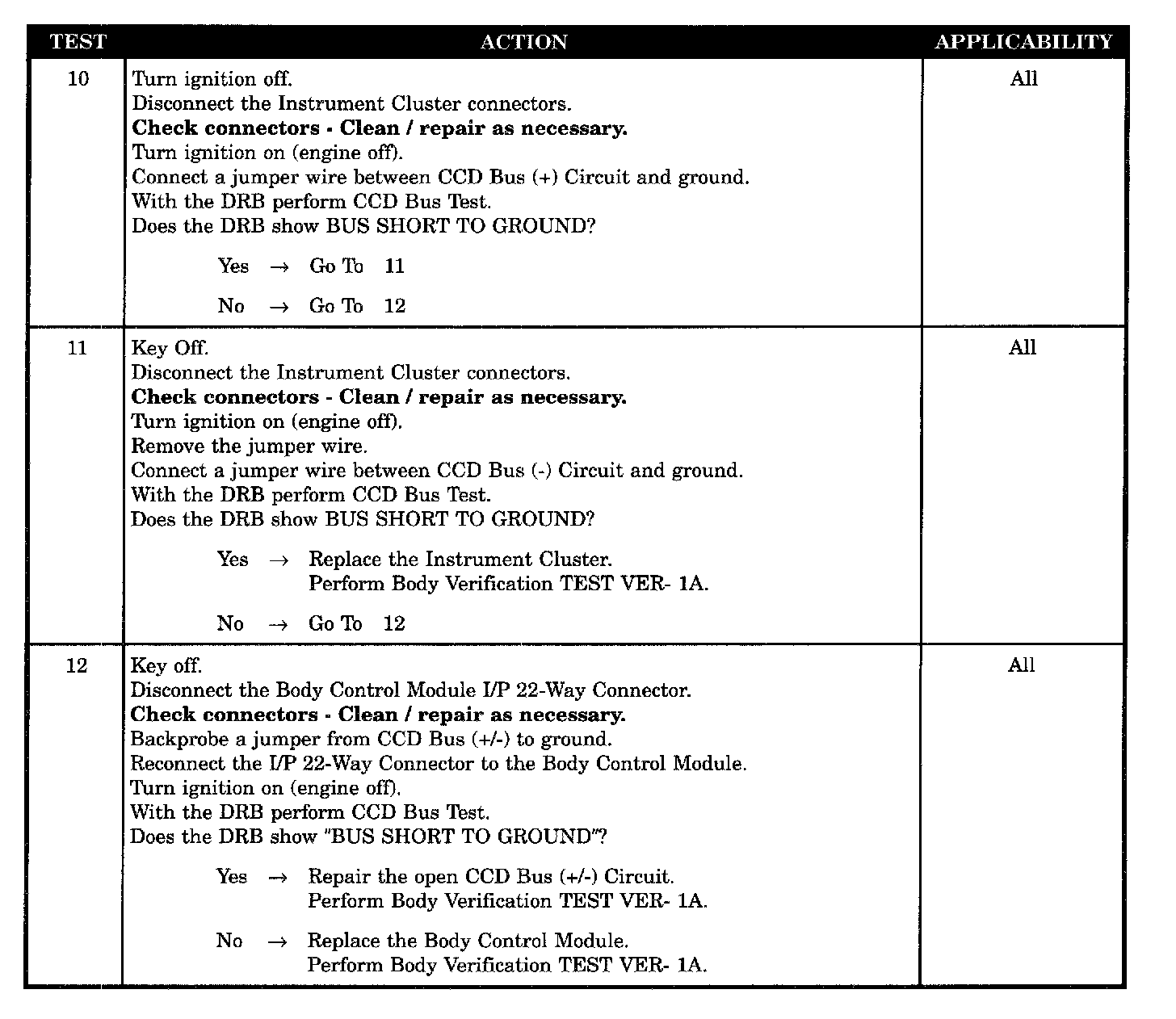

Test 10 - 12:

SYMPTOM
NO RESPONSE INSTRUMENT CLUSTER

POSSIBLE CAUSES
- CCD BUS (+) circuit open
- Fuse #11 defective
- Fuse #7 defective
- Fused B(+) circuit open
- Fused B(+) circuit short to GND
- Fused ignition switch output circuit open
- Fused ignition switch output circuit short to GND
- BCM MIC CCD BUS(-) OPEN
- Instrument cluster CCD BUS defective
- Instrument cluster ground circuit open
- BCM MIC CCD BUS(+) open
- CCD BUS (-) circuit open
