Home >> Chrysler >> 2000 >> Sebring Convertible V6-2.5L VIN H >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Communications - Verbose Codes >> DRB III Displays A Blank Screen

DRB III Displays A Blank Screen

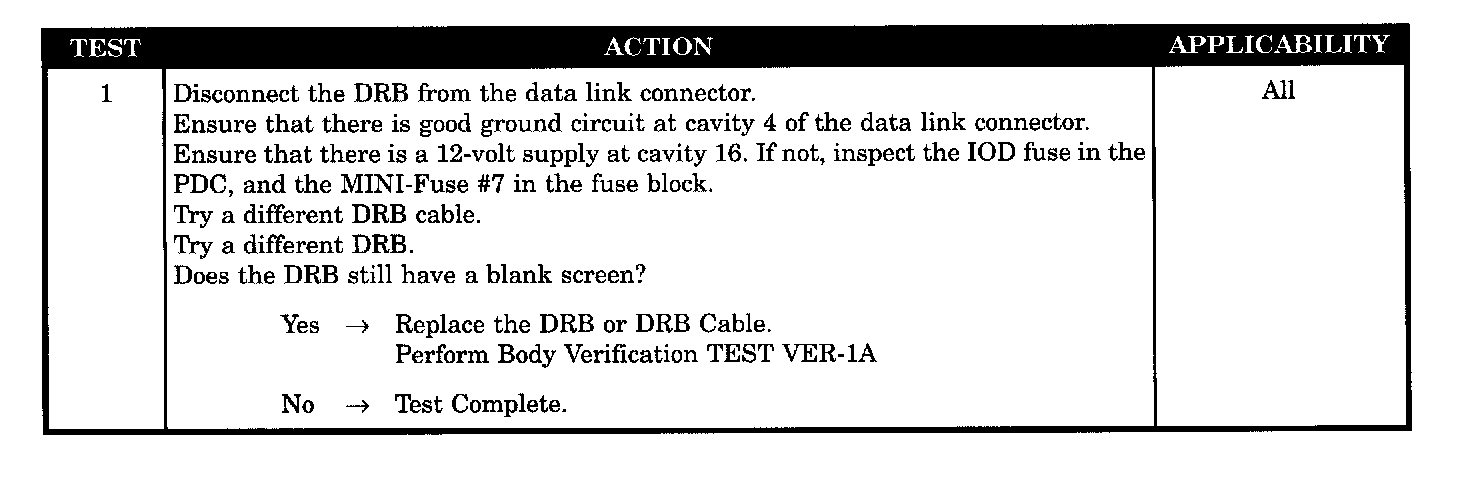

Test 1:




SYMPTOM
DRB BLANK SCREEN

POSSIBLE CAUSES
- DRB blank screen
