CCD Bus Shorted to Ground

Test 1 - 2:

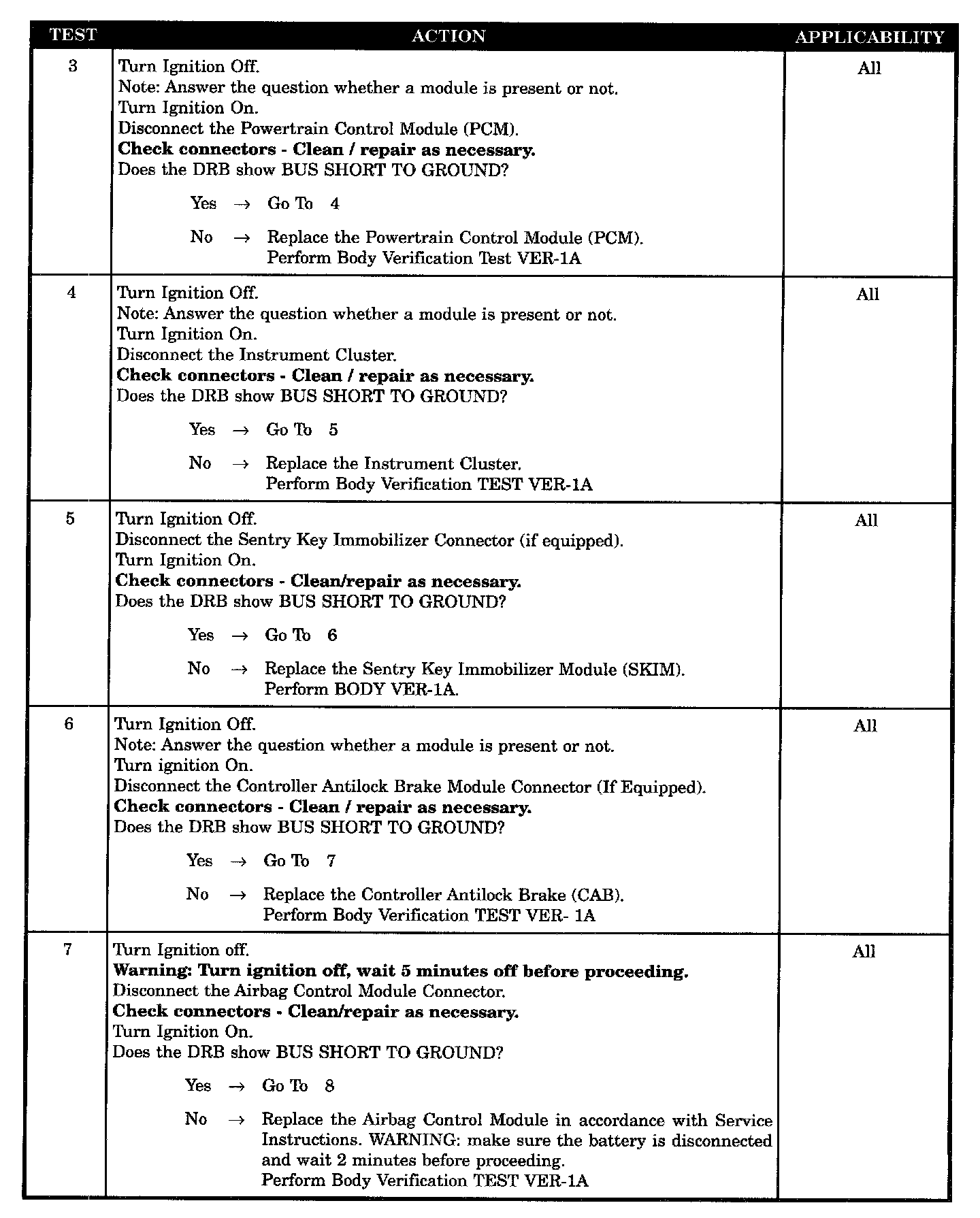

Test 3 - 7:

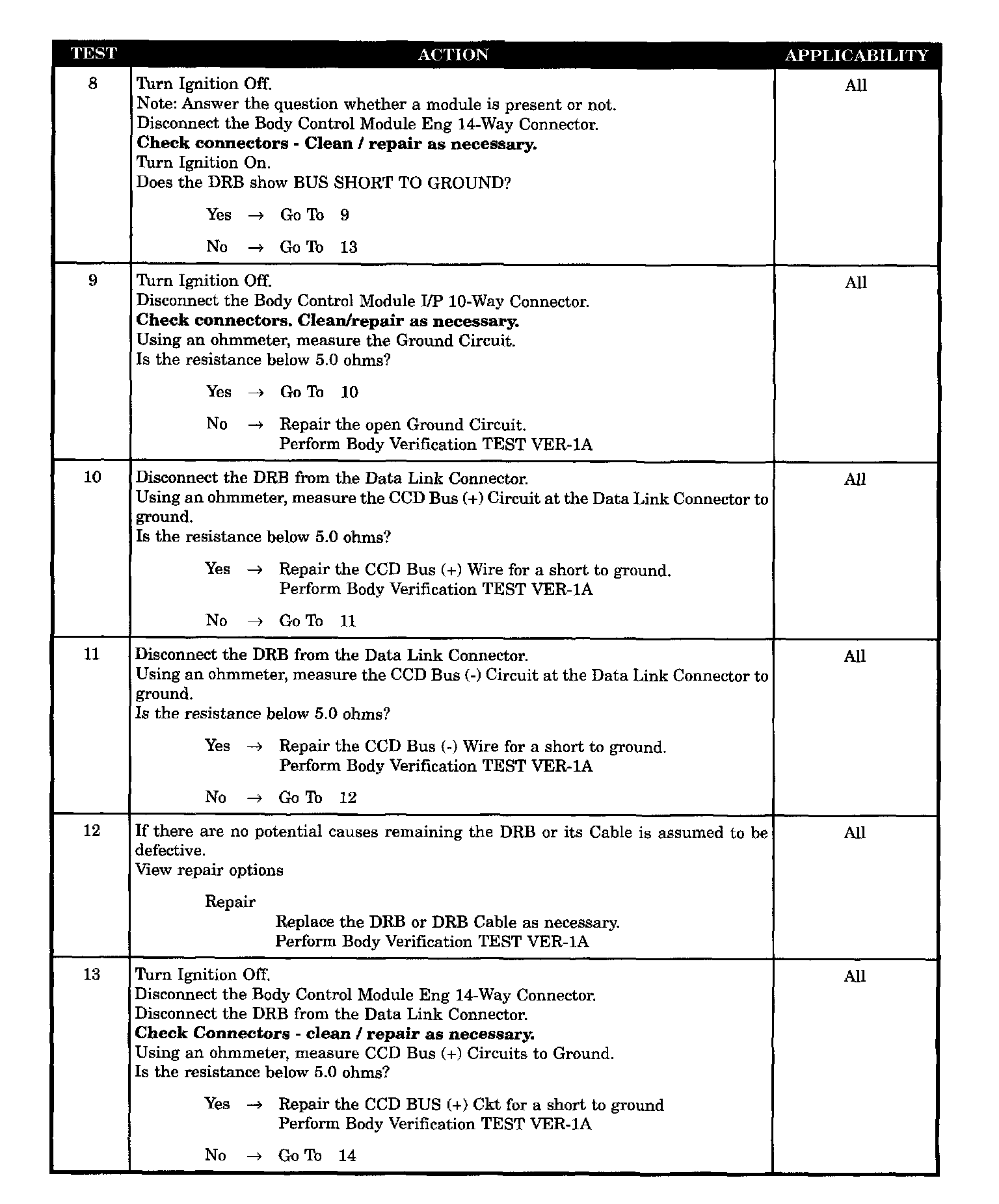

Test 8 - 13:

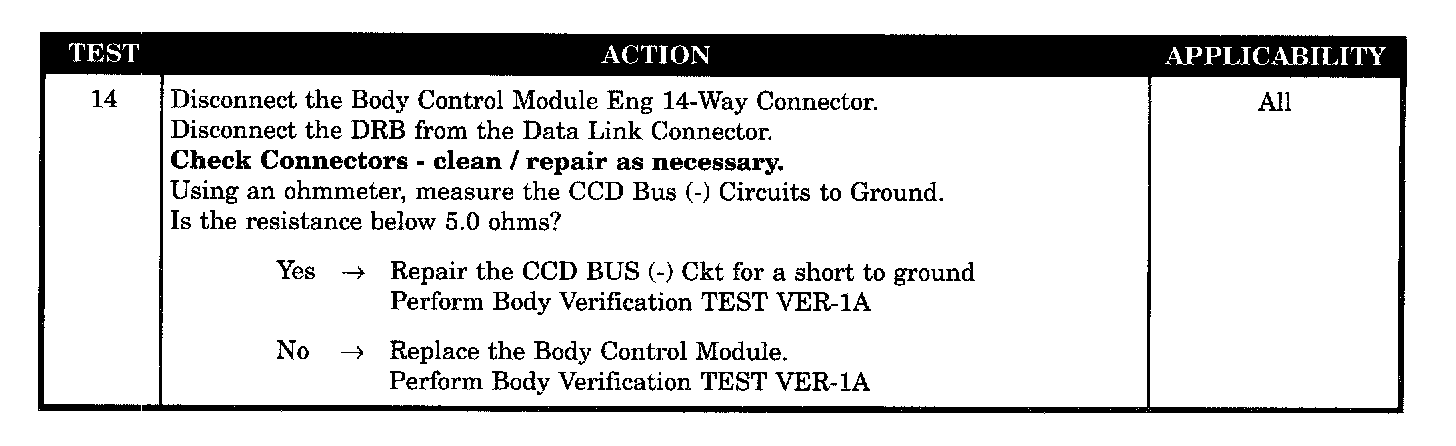

Test 14:

SYMPTOM
CCD SHORT TO GROUND

POSSIBLE CAUSES
- Defective DRB/short to ground
- CCD ground wire open
- Open ground CKT/body control module
- CCD BUS (+) short to ground
- CCD BUS (+) wire-short to ground
- CCD BUS (-) short to ground
- CCD BUS (-) wire- short to ground
- CCD instrument cluster short to ground
- CCD PCM short to ground
- CCD CAB short to ground
- CCD ACM short to ground
- CCD SKIM short to ground
- CCD TCM short to ground
- Defective BCM- BUS (-) short to ground
