Bus (+) and Bus (-) Shorted Together

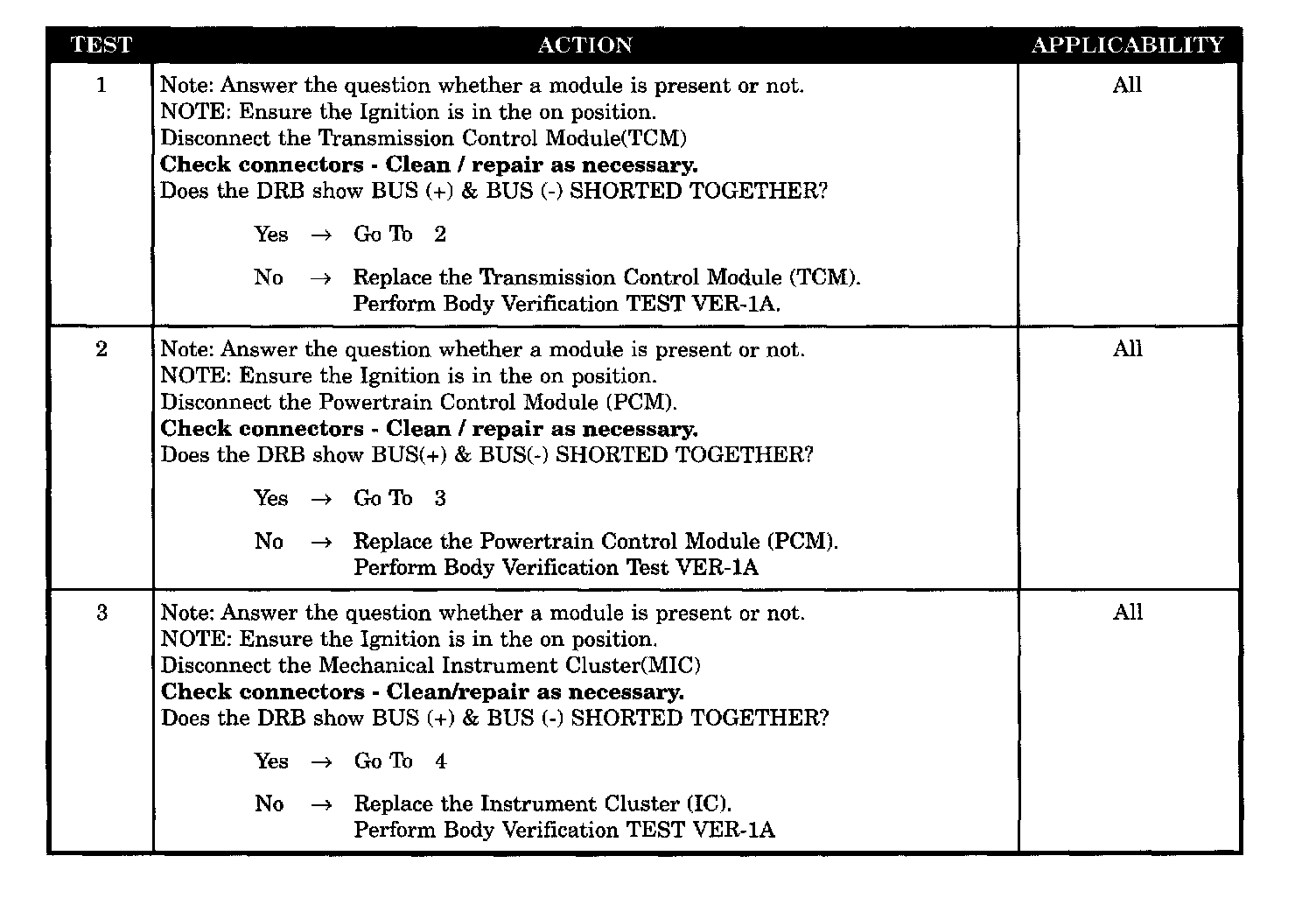

Test 1 - 3:

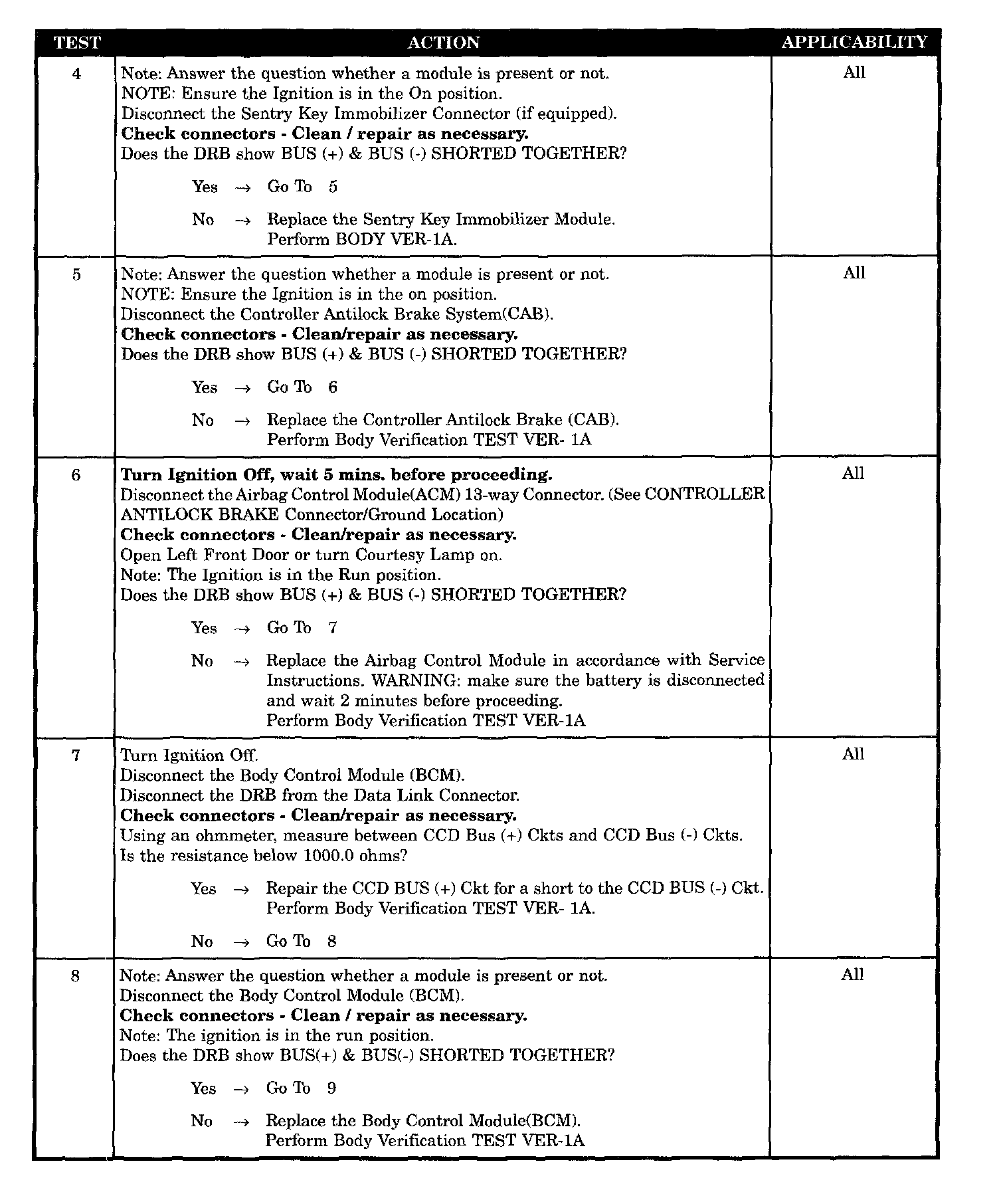

Test 4 - 8:

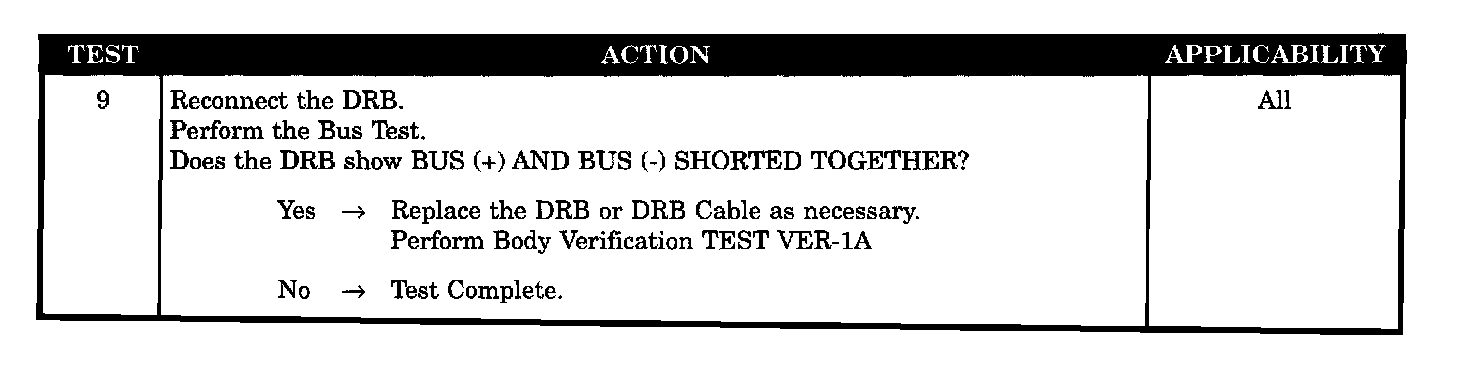

Test 9:

SYMPTOM
BUS (+) AND BUS (-) SHORTED TOGETHER

POSSIBLE CAUSES
- Defective DRB/BUS(+) short to BUS(-)
- CCD BUS circuit BUS (+) short to BUS (-)
- CCD IC BUS(+) short to BUS(-)
- CCD PCM BUS (+) short to BUS (-)
- CCD CAB BUS (+) short to BUS (-)
- CCD BCM BUS(+) short to BUS(-)
- CCD ACM BUS(+) short TO BUS(-)
- CCD SKIM BUS (+) short to BUS (-)
- CCD TCM BUS (+) short TO BUS (-)
