Traction Control Switch

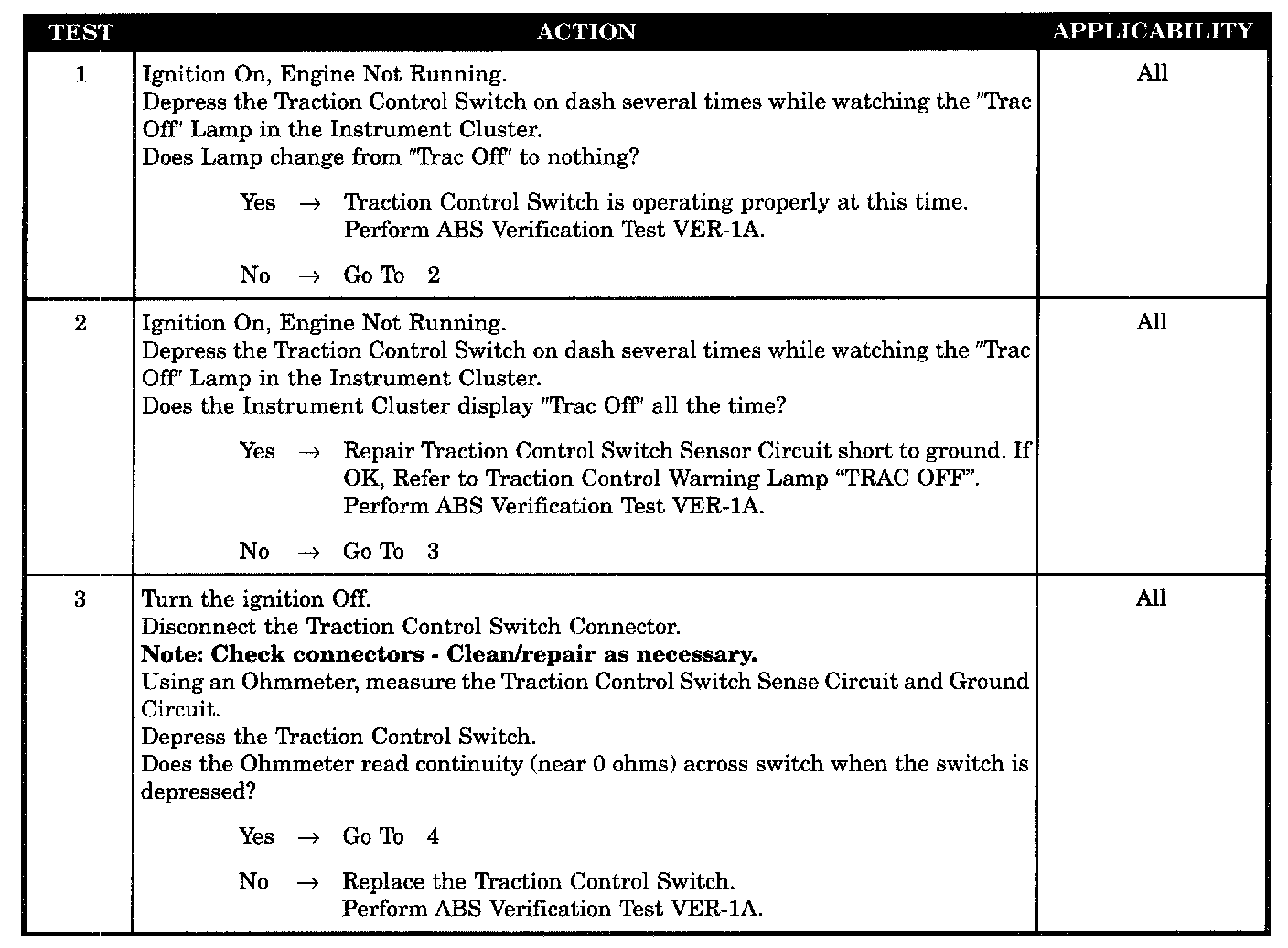

Test 1-3:

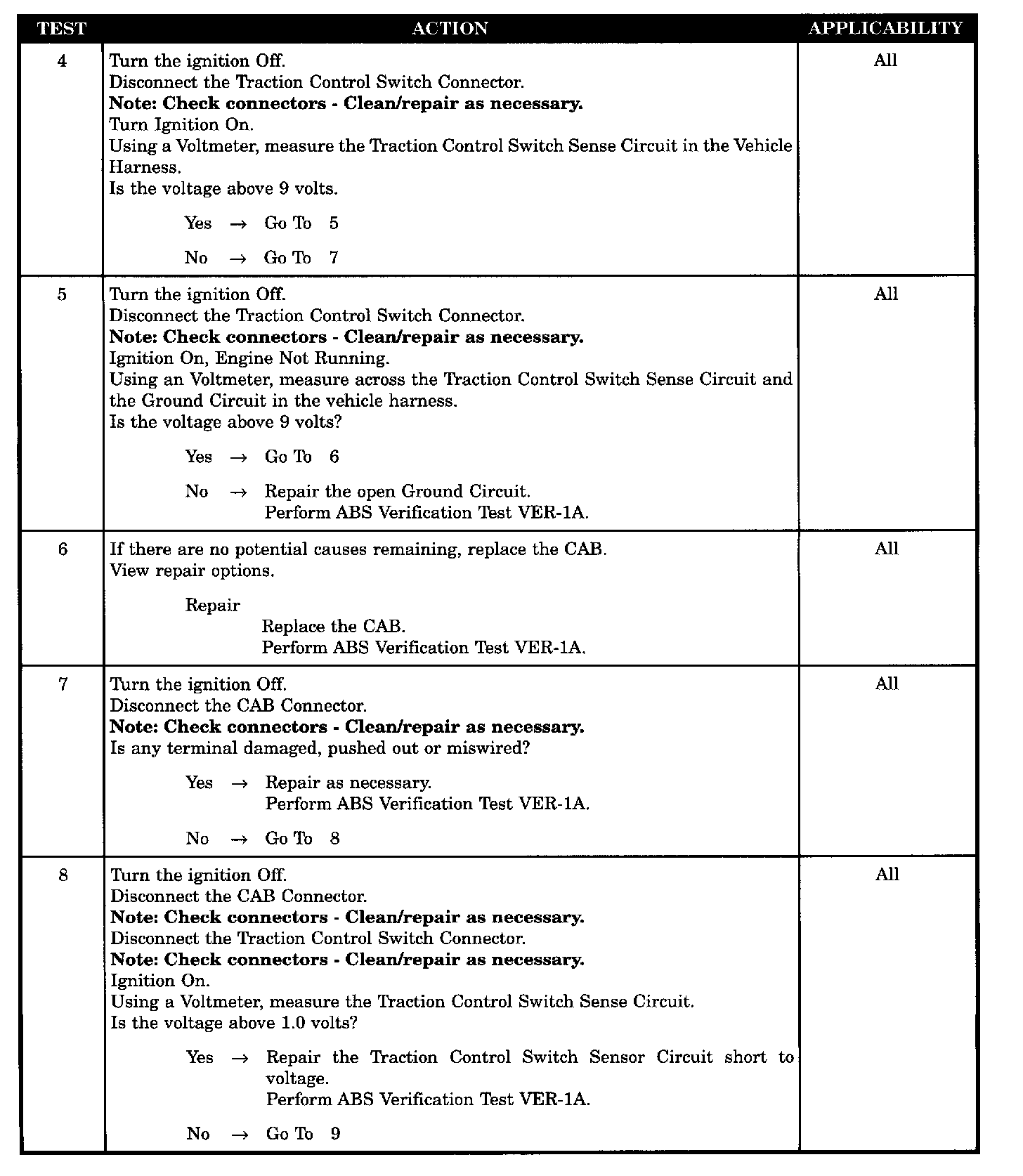

Test 4-8:

Test 9-10:

Symptom:
TRACTION CONTROL SWITCH

POSSIBLE CAUSES
TRACTION CONTROL SWITCH OPERATING PROPERLY
CAB CONNECTOR OBSERVABLE DEF
TRACTION CONTROL SWITCH GROUND CIRCUIT OPEN
TRACTION CONTROL SWITCH DEFECTIVE
TRACTION CONTROL SWITCH SENSOR CIRCUIT OPEN
TRACTION CONTROL SWITCH SENSOR CIRCUIT SHORT TO GND
TRACTION CONTROL SWITCH SENSOR CIRCUIT SHORT TO B+
CAB DEFECTIVE
