Traction Control "Trac Off" Indicator

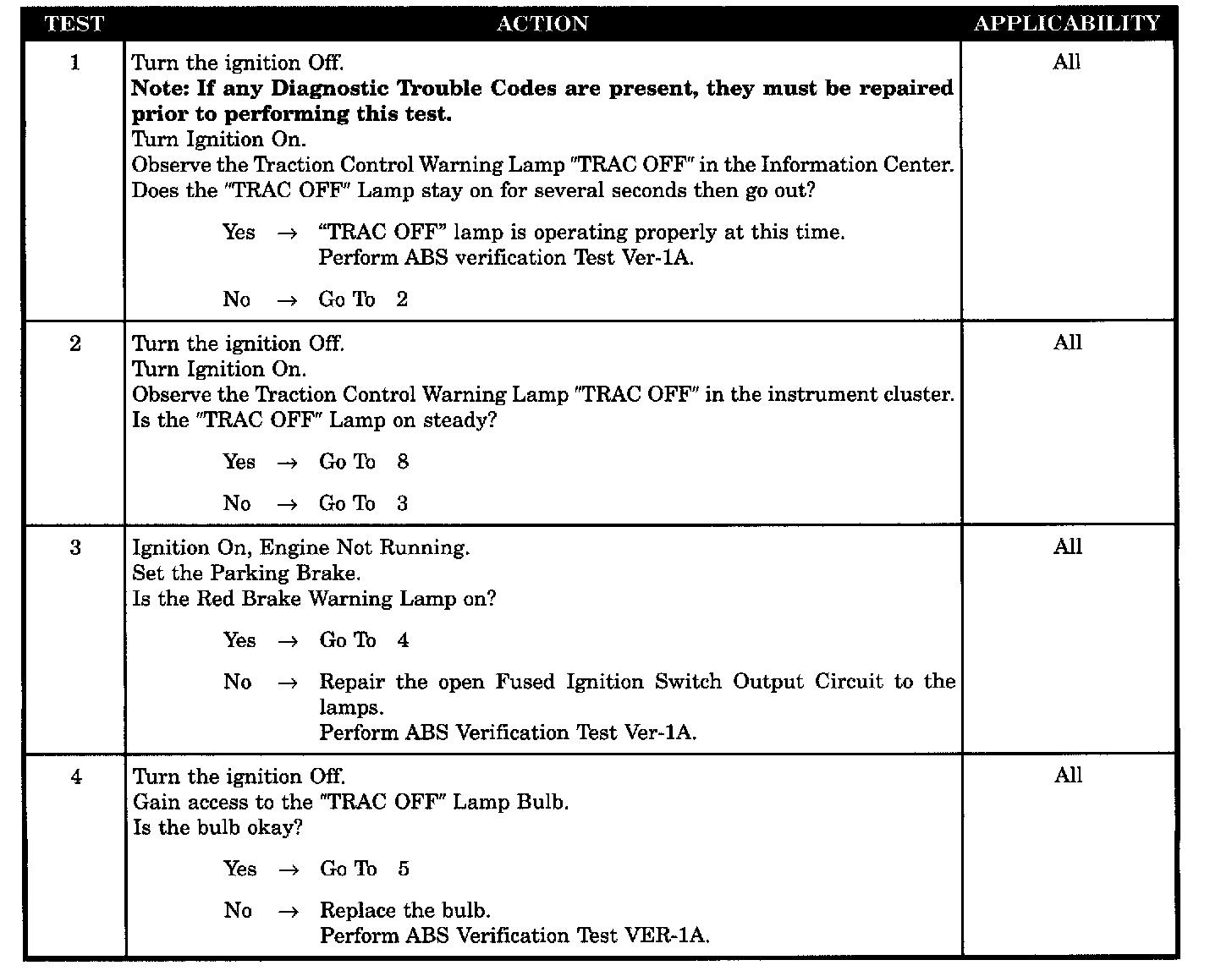

Test 1-4:

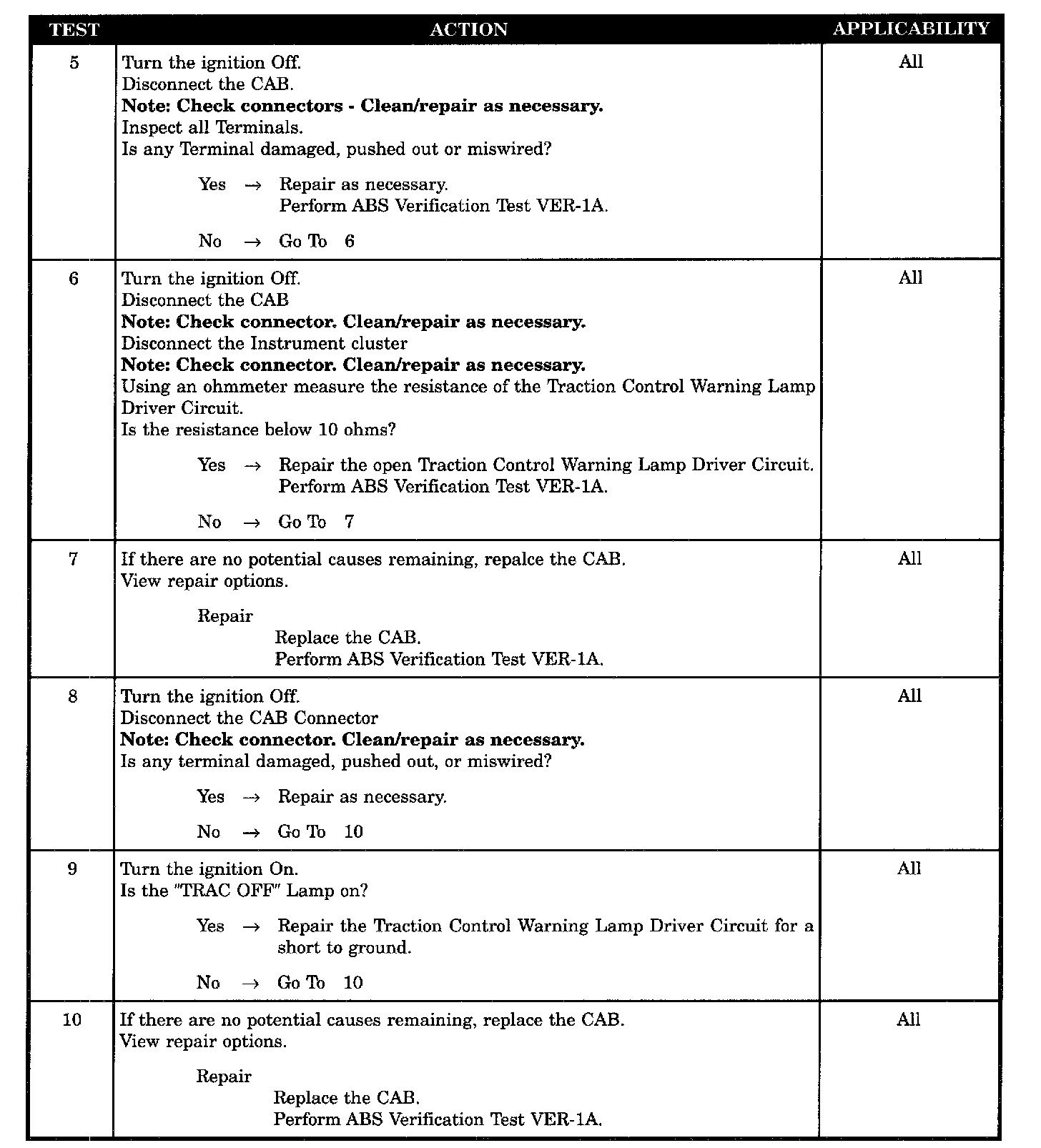

Test 5-10:

ABS Verification Test VER 1:

Symptom:
TRACTION CONTROL WARNING LAMP (TRAC OFF)

POSSIBLE CAUSES
CAB CONNECTOR TERMINALS OBSERVABLE DEFECTIVE
TRAC OFF LAMP BULB DEFECTIVE
TRACTION CONTROL WARNING LAMP DRIVER CIRCUIT OPEN
TRACTION CONTROL WARNING LAMP DRIVER CIRCUIT SHORTED TO GROUND
FUSED IGNITION SWITCH OUTPUT CIRCUIT OPEN
CAB DEFECTIVE
