Right Rear Sensor Circuit Failure

Test 1-2:

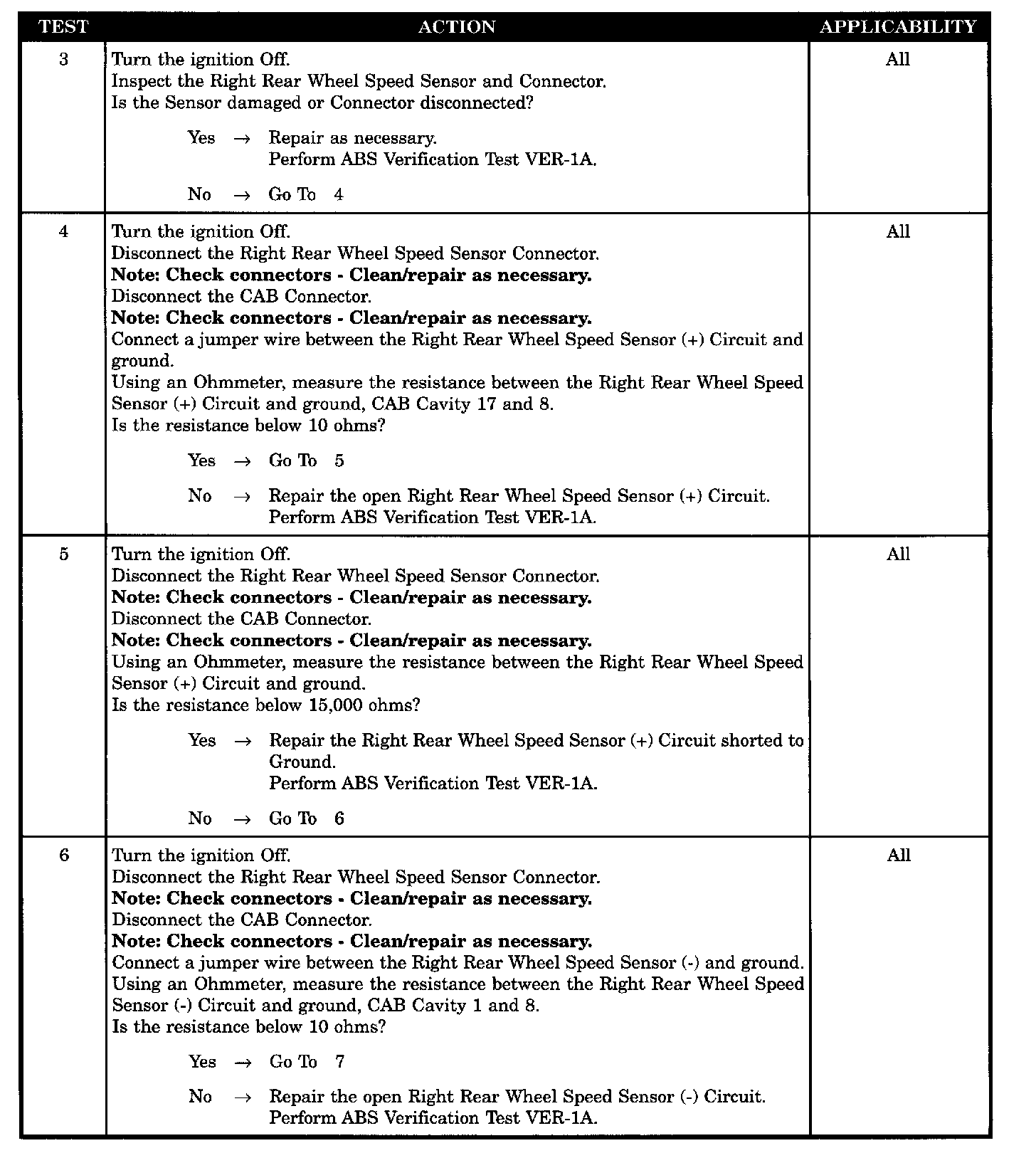

Test 3-6:

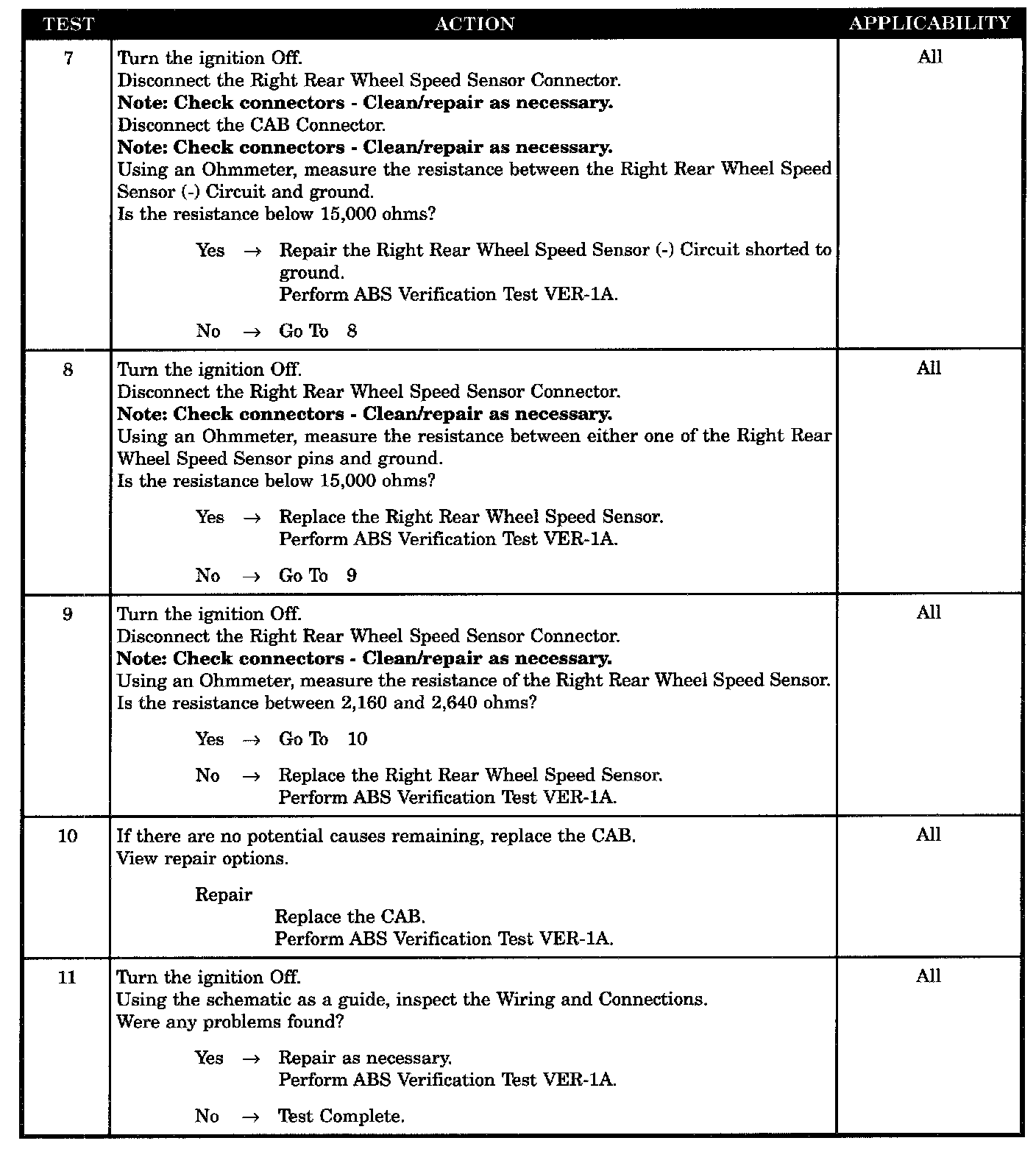

Test 7-11:

Symptom:
RIGHT REAR SENSOR CIRCUIT FAILURE

When Monitored and Set Condition:
RIGHT REAR SENSOR CIRCUIT FAILURE

When Monitored: 1. Ignition on. 2. The CAB monitors the wheel speed circuit continuity at all times.

Set Condition: If the CAB detects an open or shorted wheel speed sensor circuit, the Diagnostic Trouble Code (DTC) will set.

POSSIBLE CAUSES
WIRING AND CONNECTORS OBSERVABLE DEFECT
RIGHT REAR WHEEL SPEED SENSOR CIRCUIT OPEN
RIGHT REAR WHEEL SPEED SENSOR CIRCUIT SHORTED TO GROUND
RIGHT REAR WHEEL SPEED SENSOR CIRCUIT OPEN
RIGHT REAR WHEEL SPEED SENSOR CIRCUIT SHORTED TO GROUND
RIGHT REAR WHEEL SPEED SENSOR CONNECTOR OBSERVABLE DAMAGE
RIGHT REAR WHEEL SPEED SENSOR DAMAGED OR CONNECTOR DISCONNECTED
RIGHT REAR WHEEL SPEED SENSOR DEFECTIVE (SHORT TO GROUND CHECK)
RIGHT REAR WHEEL SPEED SENSOR DEFECTIVE (RESISTANCE CHECK)
CAB DEFECTIVE
