Right Front Sensor Circuit Failure

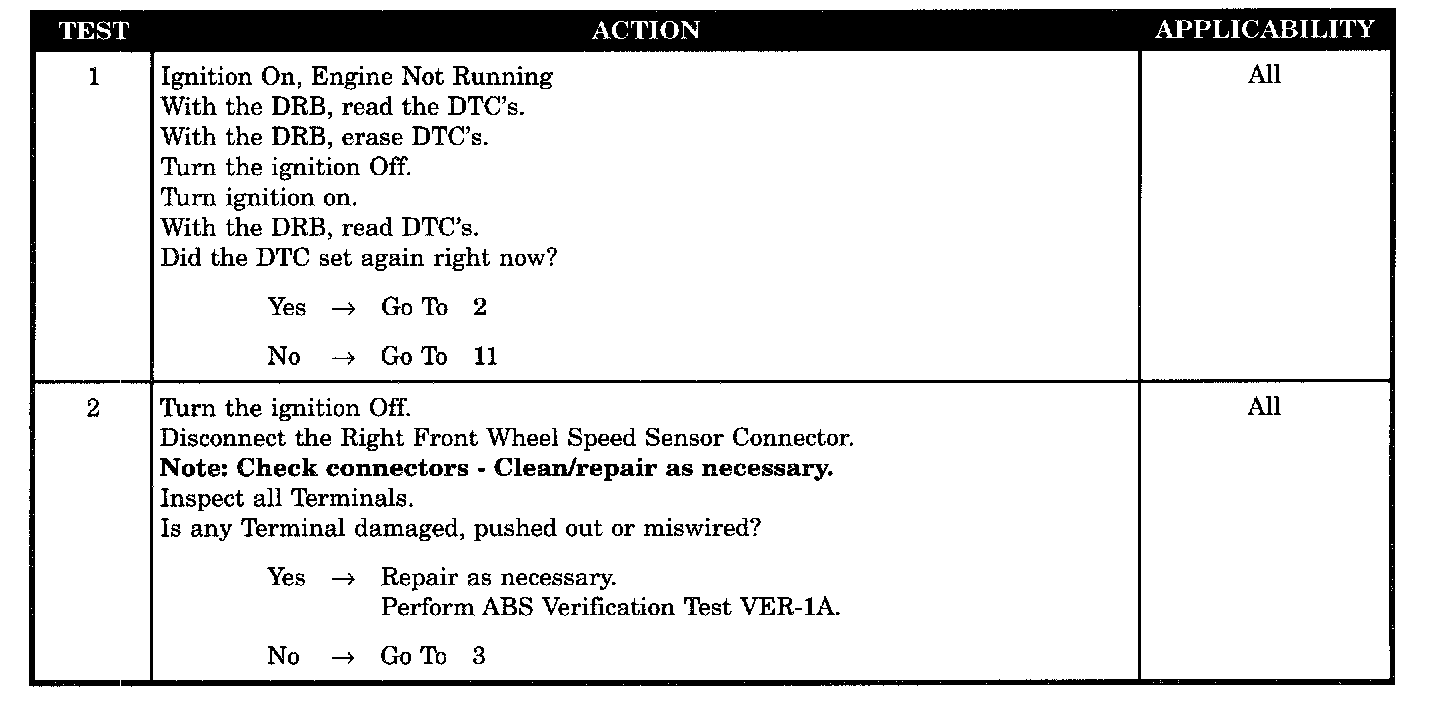

Test 1-2:

Test 3-6:

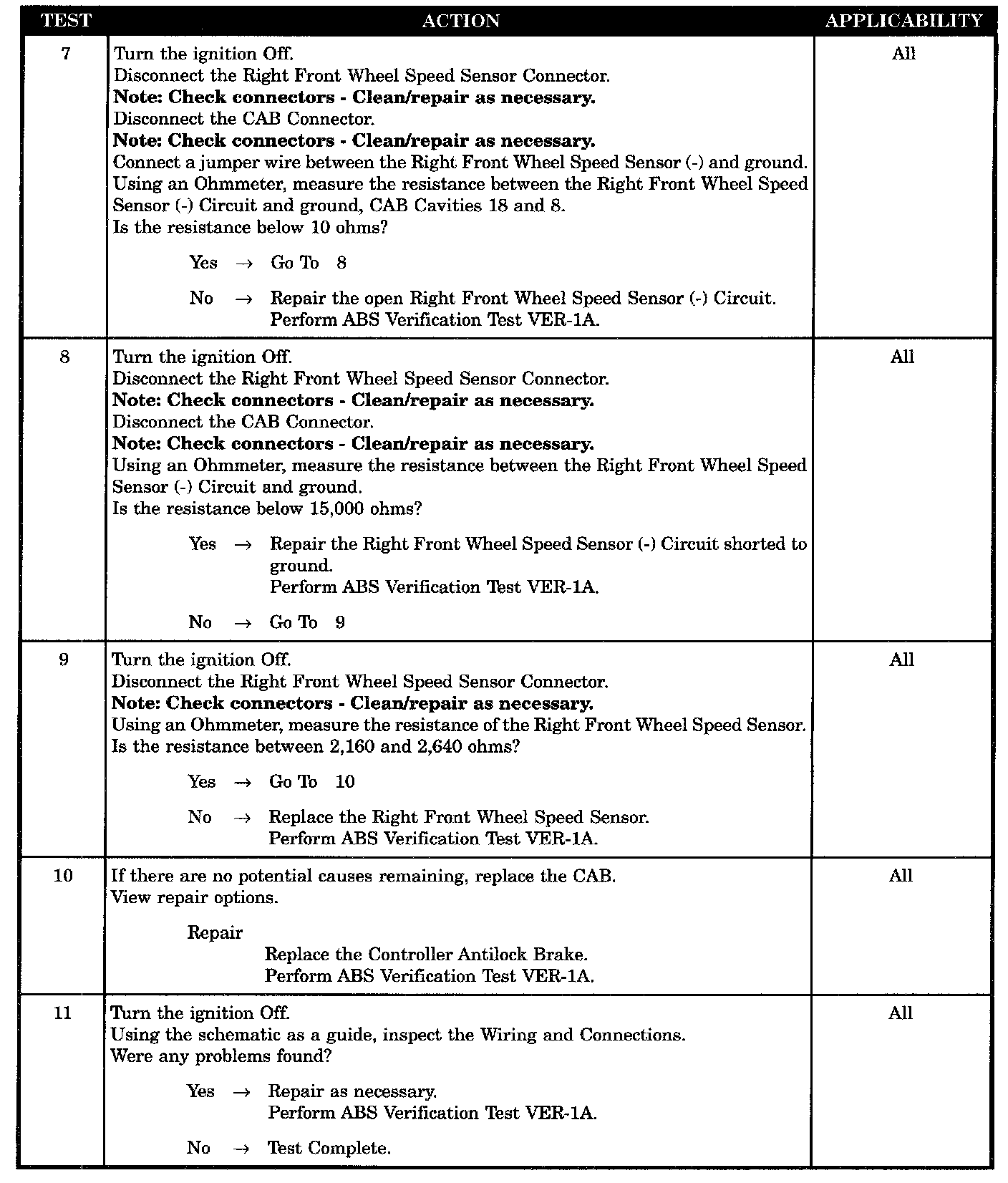

Test 7-11:

Symptom:
RIGHT FRONT SENSOR CIRCUIT FAILURE

When Monitored and Set Condition:
RIGHT FRONT SENSOR CIRCUIT FAILURE

When Monitored: 1. Ignition on. 2. The CAB monitors the wheel speed circuit continuity at all times.

Set Condition: If the CAB detects an open or shorted wheel speed sensor circuit, the Diagnostic Trouble Code (DTC) will set.

POSSIBLE CAUSES
WIRING AND CONNECTORS OBSERVABLE DEFECT
RIGHT FRONT WHEEL SPEED SENSOR CONNECTOR OBSERVABLE DAMAGE
RIGHT FRONT WHEEL SPEED SENSOR DAMAGED OR CONNECTOR DISCONNECTED
RIGHT FRONT WHEEL SPEED SENSOR CIRCUIT OPEN
RIGHT FRONT WHEEL SPEED SENSOR CIRCUIT SHORTED TO GROUND
RIGHT FRONT WHEEL SPEED SENSOR CIRCUIT OPEN
RIGHT FRONT WHEEL SPEED SENSOR CIRCUIT SHORTED TO GROUND
RIGHT FRONT WHEEL SPEED SENSOR DEFECTIVE (SHORT TO GROUND CHECK)
RIGHT FRONT WHEEL SPEED SENSOR DEFECTIVE (RESISTANCE CHECK)
CAB DEFECTIVE
