Brake Lamp Switch

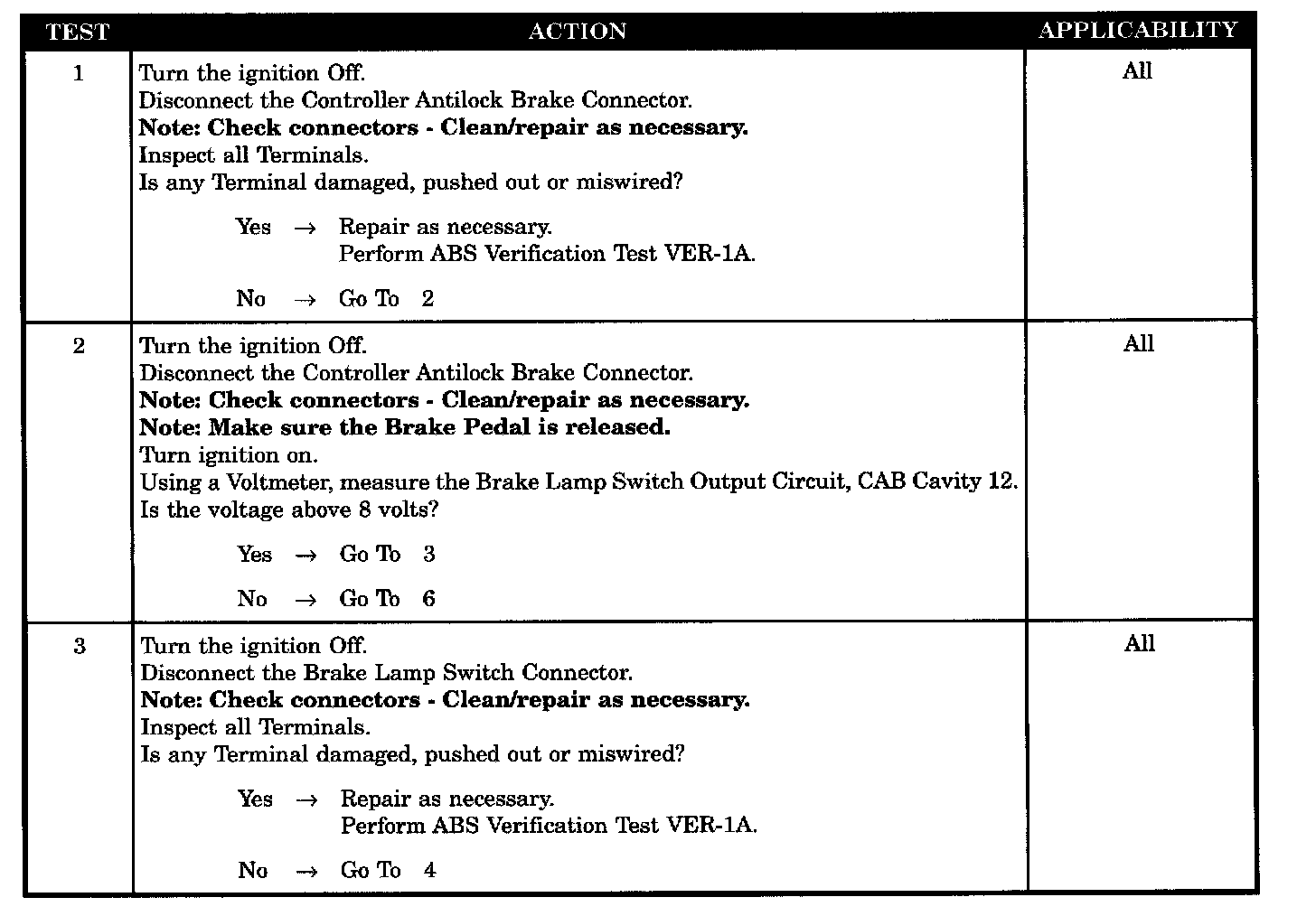

Test 1-3:

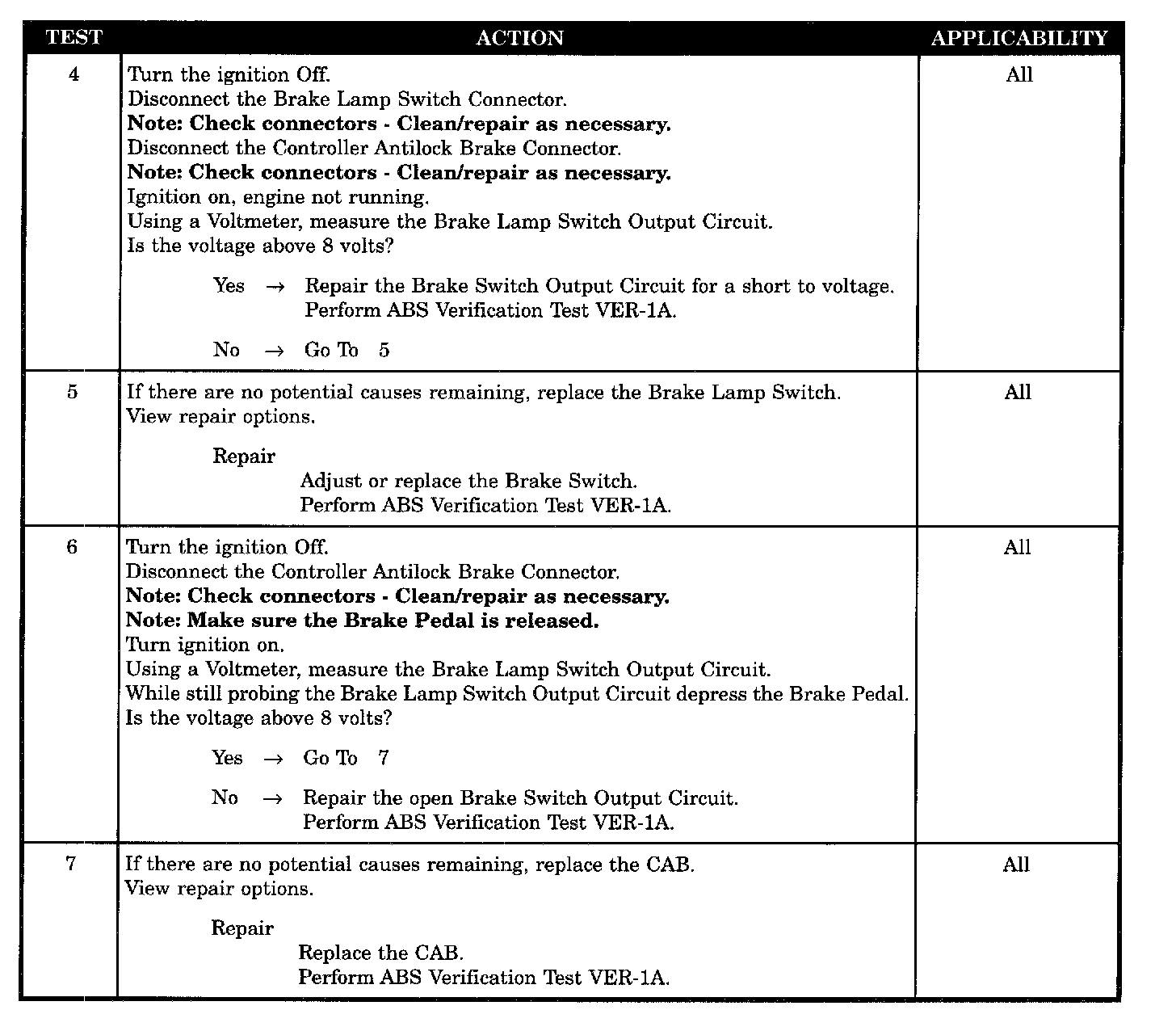

Test 4-7:

Symptom:
BRAKE SWITCH

POSSIBLE CAUSES
BRAKE SWITCH CONN OBSERVABLE DEFECT
BRAKE SWITCH DEFECTIVE
BRAKE SWITCH OUTPUT CIRCUIT OPEN
BRAKE SWITCH OUTPUT CIRCUIT SHORT TO VOLTAGE
CAB CONNECTOR OBSERVABLE DEFECT
CAB DEFECT
