Wiper Motor: Testing and Inspection

WARNING: ON VEHICLES EQUIPPED WITH AIRBAGS, SEE RESTRAINT SYSTEMS FOR STEERING WHEEL OR COLUMN REMOVAL PROCEDURES.

Wiper Motor Test:

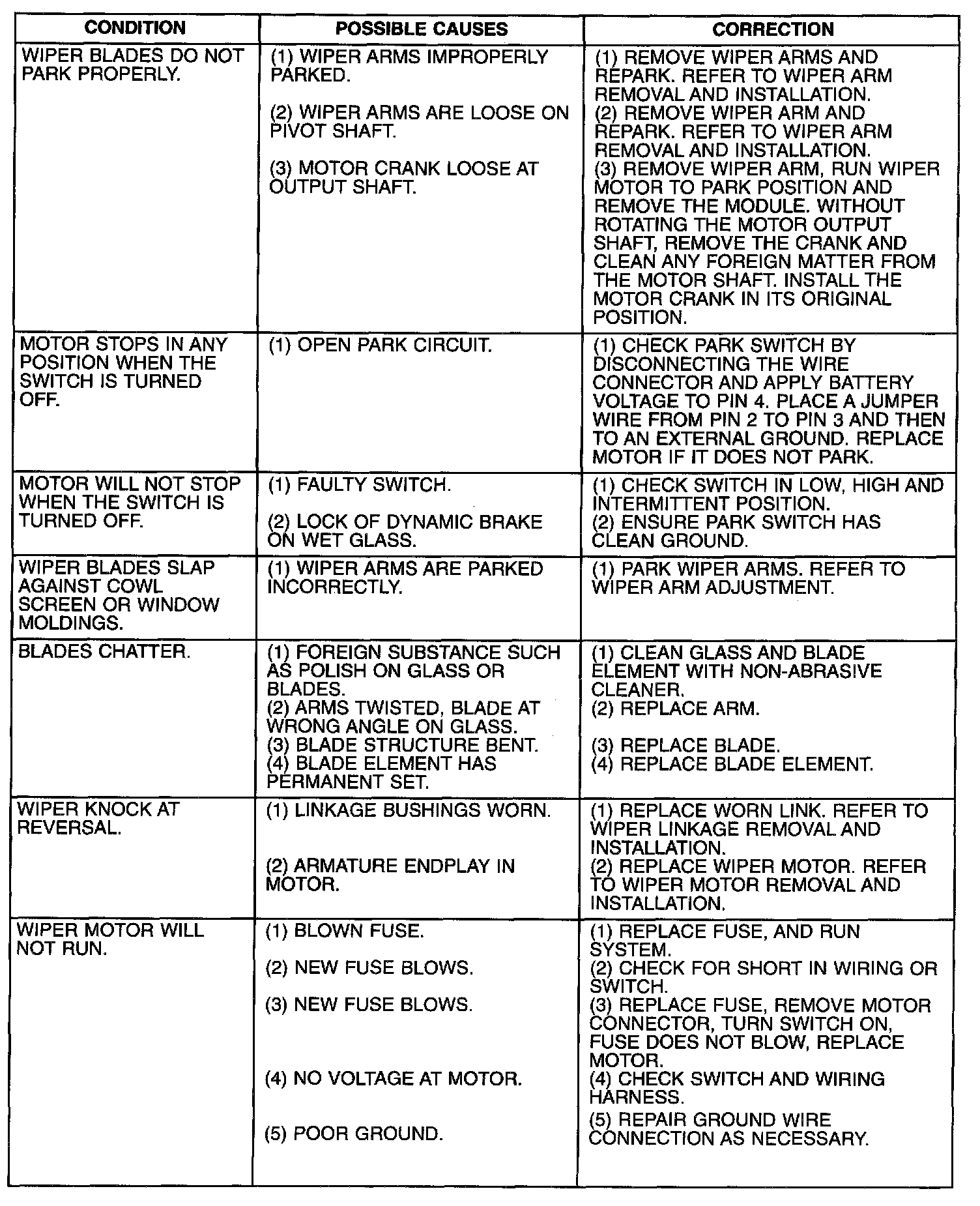

Whenever a wiper motor malfunction occurs, verify that the wire harness is properly connected, then start normal diagnosis and repair procedures. Refer to Wiper Motor Test table.
