Wiper Blade Replacement

REMOVAL
1. Lift wiper arm to the over center position.

Wiper Blade And Element:

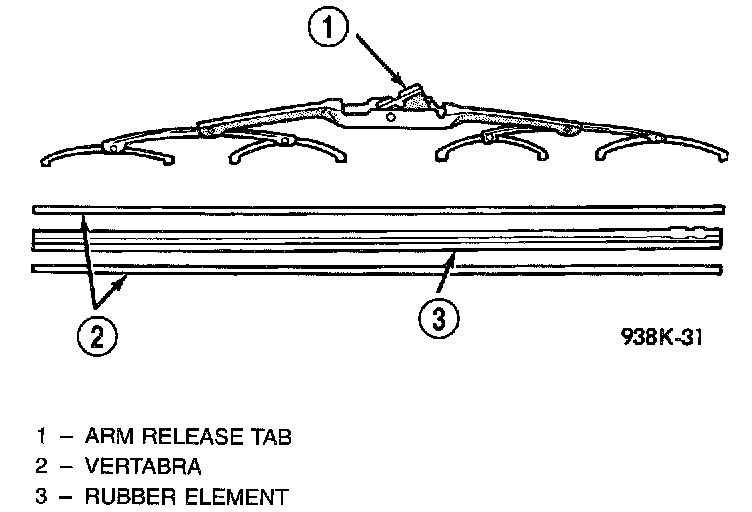

2. Remove blade assembly from arm by pushing release tab under arm tip and slide blade away from arm tip.
3. Gently place wiper arm tip on glass surface.

INSTALLATION
For installation, reverse the above procedures.
