Windshield Washer Reservoir: Service and Repair

REMOVAL
1. Raise vehicle on hoist.

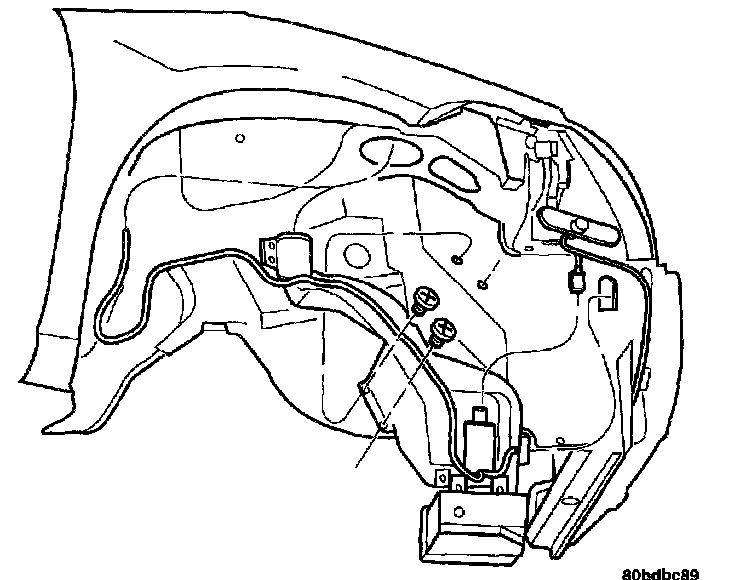

Windshield Washer Reservoir Remove/Install:

2. Disconnect the wire connector from the reservoir pump.
3. Disconnect the washer hose at the pump and drain the reservoir.
4. Disconnect the vacuum connector to the speed control vacuum reservoir.
5. Remove fasteners from reservoir.
6. Remove the reservoir through fender opening.
If replacing reservoir, the windshield washer pump and the speed control vacuum reservoir must be transferred to the new washer reservoir.
7. Remove two fasteners retaining speed control vacuum reservoir.
8. Remove to the windshield washer pump from the reservoir. Refer to Windshield Washer Pump Removal and Installation.

INSTALLATION
For installation, reverse the above procedures. Tighten the reservoir screws to 2.2 to 3.3 Nm (20 to 29 in. lbs.) torque.
