Rear Door Glass Run Weatherstrip
REAR DOOR GLASS RUN WEATHERSTRIPREMOVAL
1. Remove door trim panel, water dam as necessary.
2. Remove door glass.
3. Remove weatherstrip fasteners.
4. Pull weatherstrip from lower front channel above door latch.

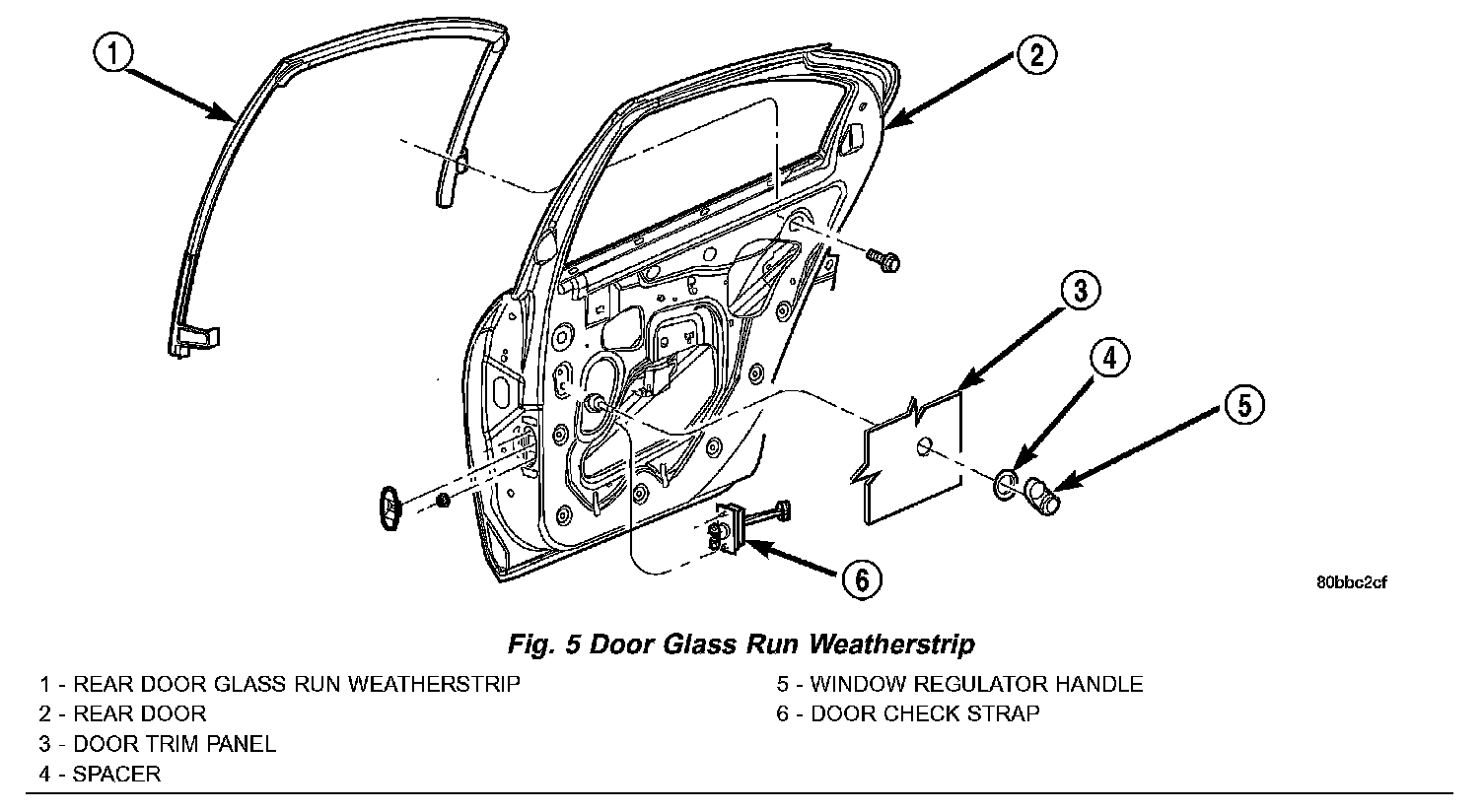

Fig. 5:
5. Pull run weatherstrip from window frame channel (Fig. 5).
INSTALLATION
1. Clean butyl material from door flange area.
2. Place door run weatherstrip in position on window frame channel.
3. Push door run weatherstrip into window frame channel.
4. Push weatherstrip into lower front channel above door latch.
5. Install weatherstrip fasteners.
6. Install door glass.
7. Install pull cup support bracket, water shield, and door trim panel.
