Front Door Window Glass: Service and Repair

DOOR GLASS

REMOVAL

1. Remove door trim panel and water dam.
2. Remove inner door belt weatherstrip.
3. Loosen window inner belt stabilizer.
4. Lower door glass to bottom of door to gain access to attaching bolts.

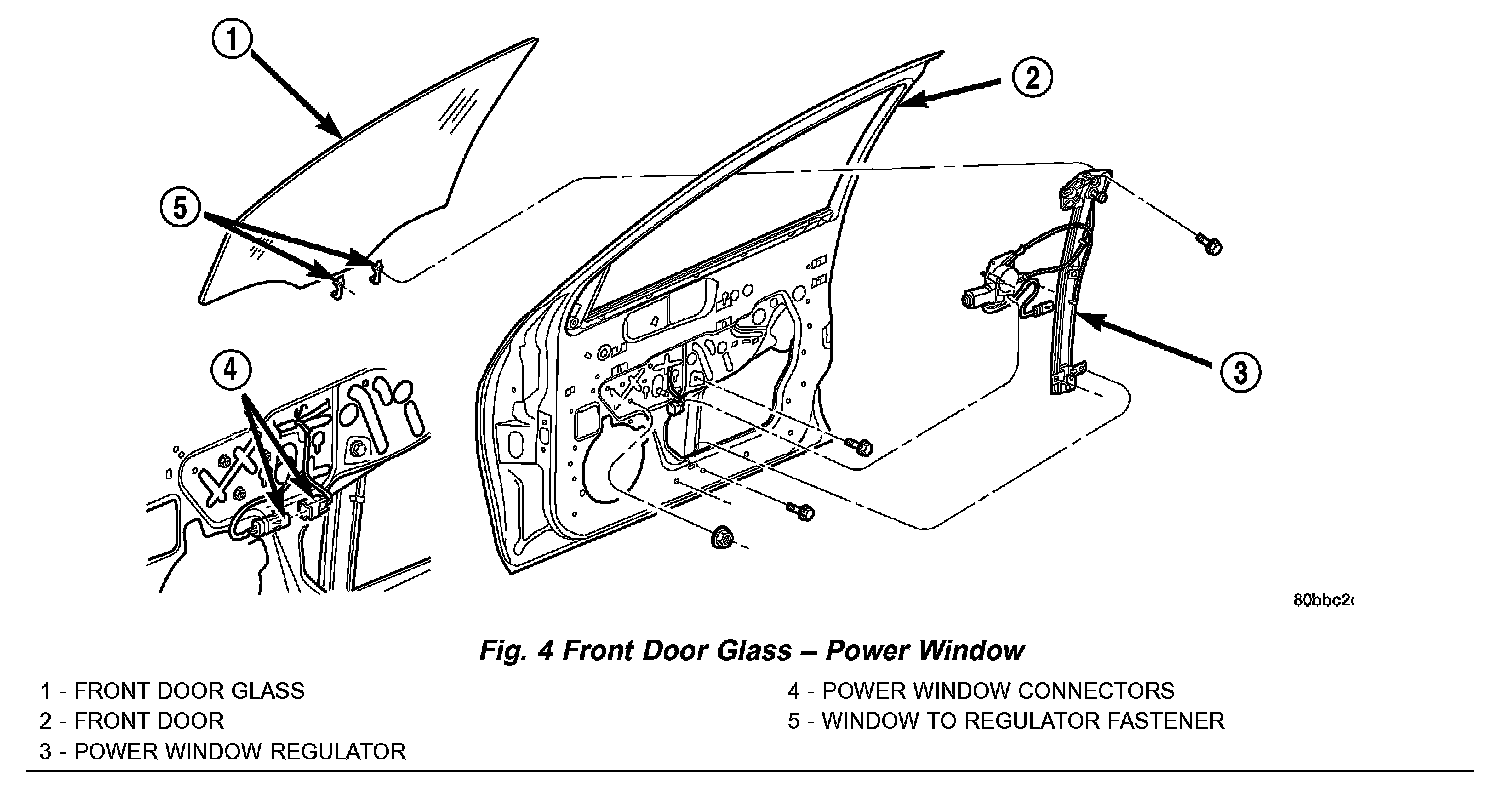

Fig. 4:

Fig. 5:

5. Remove bolts attaching door glass to window regulator lift plates (Fig. 4) and (Fig. 5).
6. Disengage door glass from regulator.
7. Lift door glass upward out of the opening at the top of door.

INSTALLATION

1. Carefully lower door glass through opening in top of door.
2. Position door glass into window regulator lift plates.
3. Install bolts door glass to lift plates and do not tighten.
4. Tighten window inner belt stabilizer.
5. Raise glass to the full up position and then tighten the lift plate bolts.
6. Install inner door belt weatherstrip.
7. Install door trim panel and water dam.
