Flex Plate: Service and Repair

REMOVAL
1. Remove transaxle.

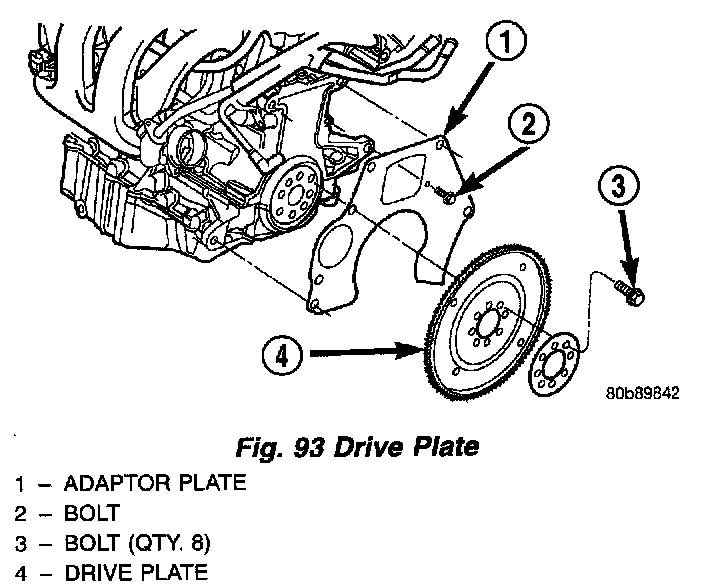

Fig. 93

2. Remove drive plate attaching bolts (Fig. 93).
3. Remove drive plate (Fig. 93).

INSTALLATION
1. Position drive plate on crankshaft (Fig. 93).
2. Apply Mopar Lock & Seal Adhesive to drive plate bolt threads.
3. Install drive plate bolts and tighten to 95 Nm (70 ft. lbs.) (Fig. 93).
4. Install transaxle.
