Shift Interlock: Service and Repair

REMOVAL

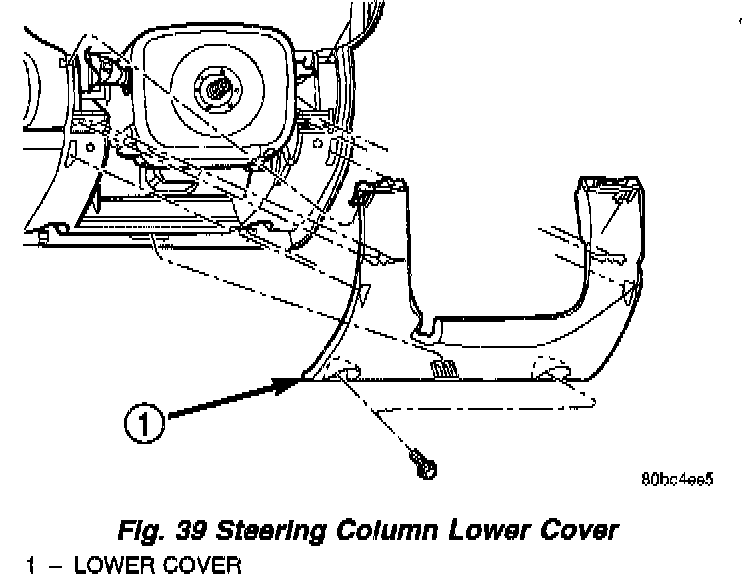

Fig. 39:

1. Remove the steering column lower cover (Fig. 39).

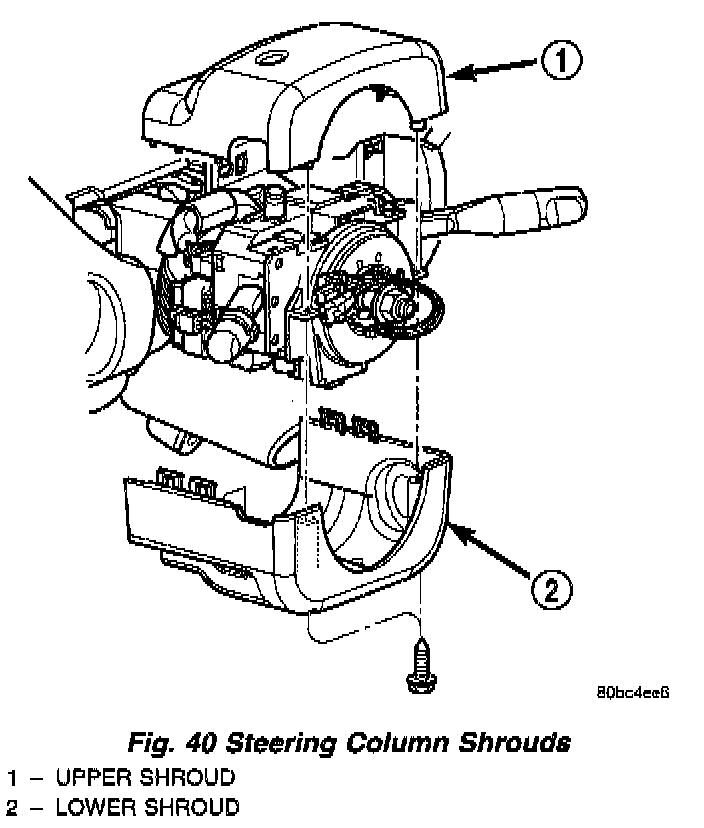

Fig. 40:

2. Remove the steering column upper and lower shrouds (Fig. 40).

Fig. 41:

3. Turn the ignition key to the "OFF" or "ON/ RUN" position (Fig. 41).

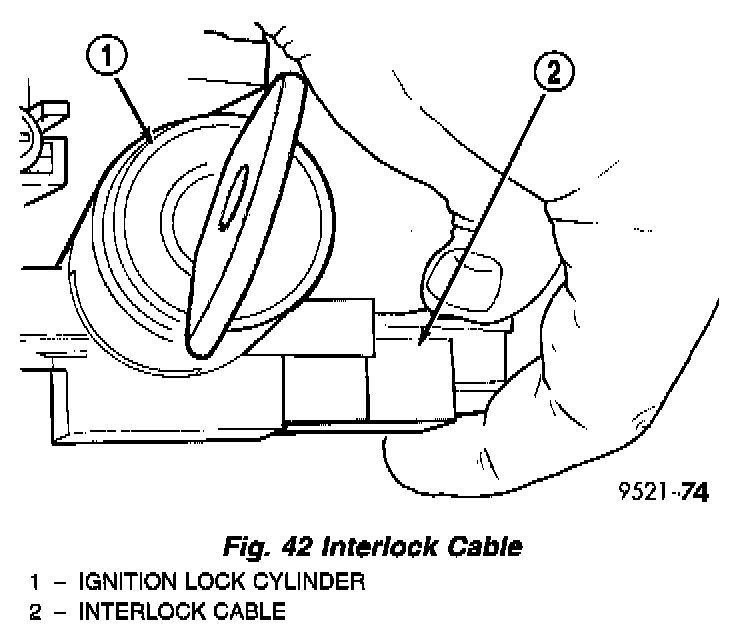

Fig. 42:

4. Grasp the interlock cable and connector firmly. Remove the interlock cable (Fig. 42).

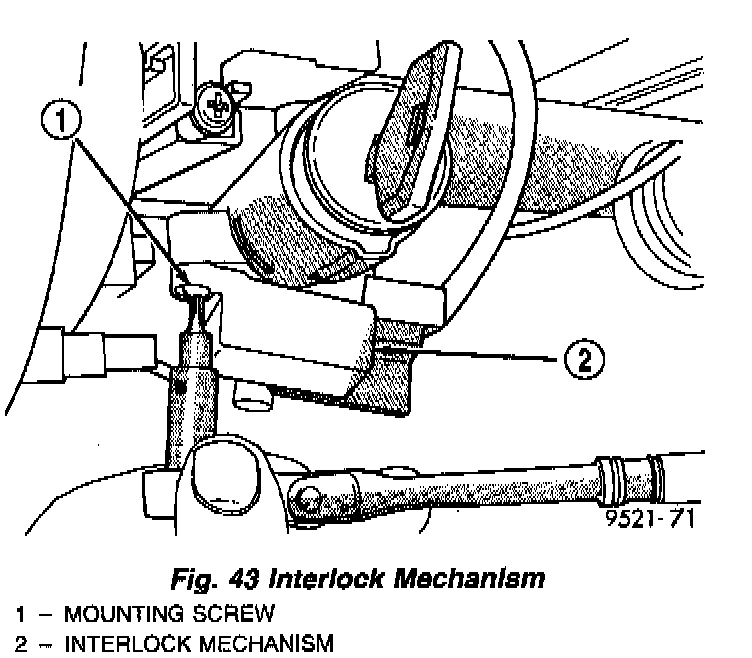

Fig. 43:

5. Remove the two interlock mechanism-to-steering column attaching screws (Fig. 43). Remove the interlock housing.

INSTALLATION
1. Position the interlock housing at steering column. Install the two interlock mechanism-to-steering column attaching screws. Torque screws to 3 Nm (21 inch lbs.).
2. Snap the interlock cable into the housing.
3. Install steering column upper and lower shrouds (Fig. 40).
4. Install steering column lower cover (Fig. 39).
