Rear Clutch

DISASSEMBLY

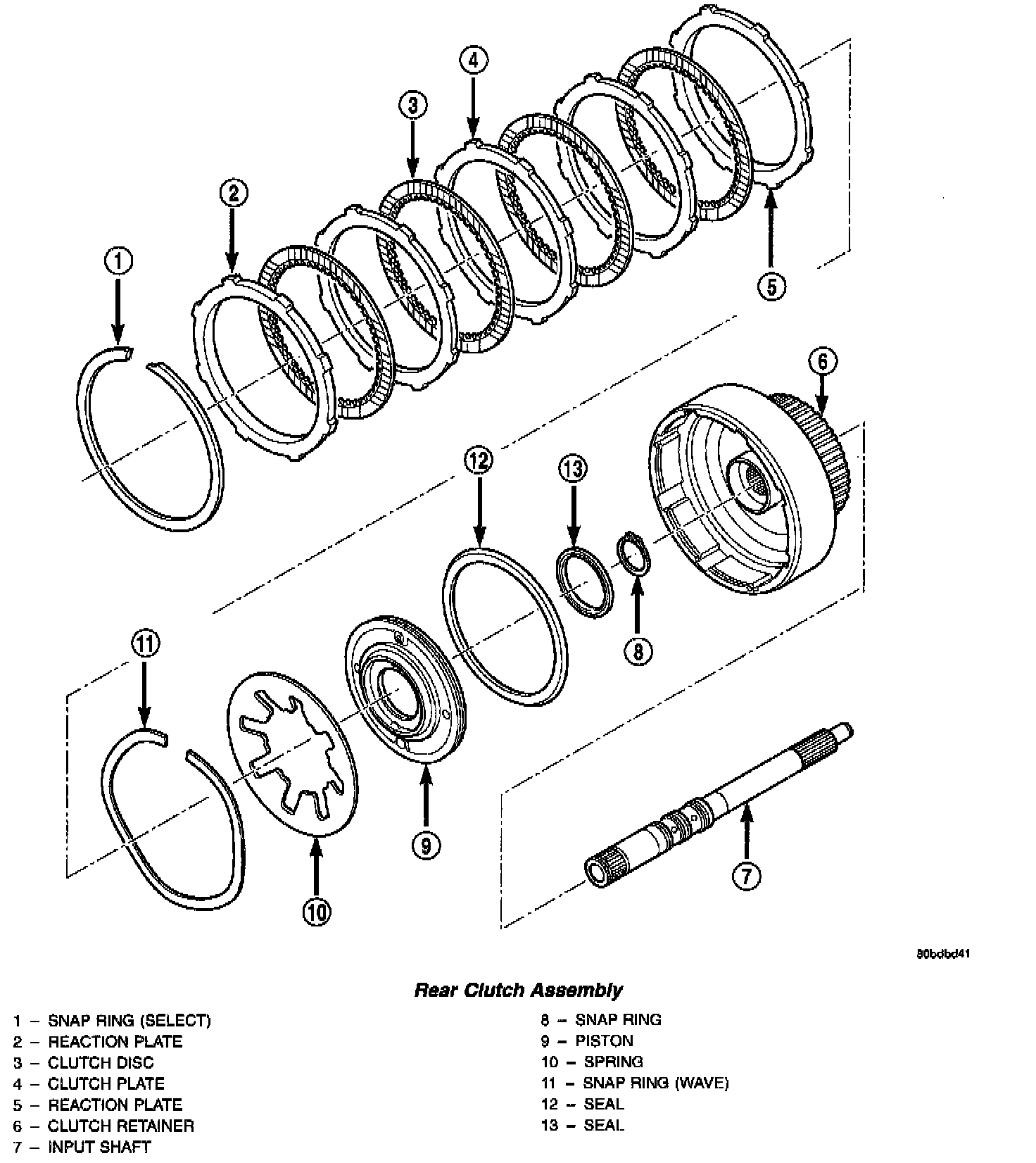

Rear Clutch Assembly:

Fig. 112:

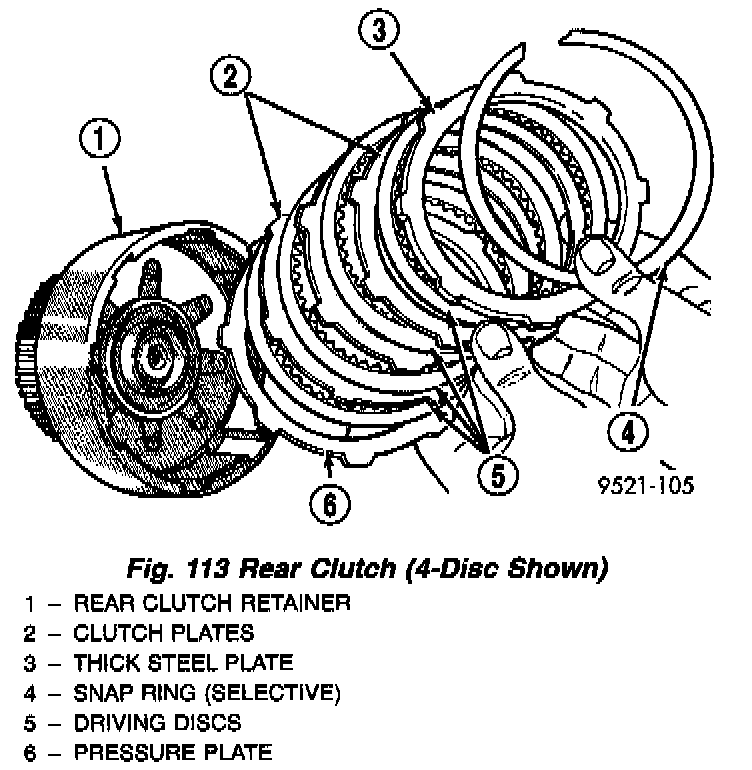

Fig. 113:

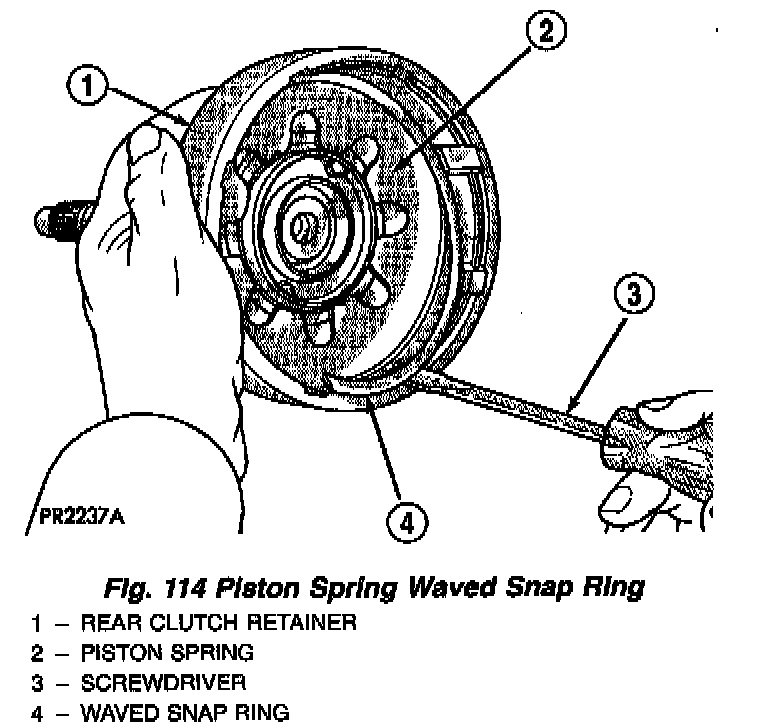

Fig. 114:

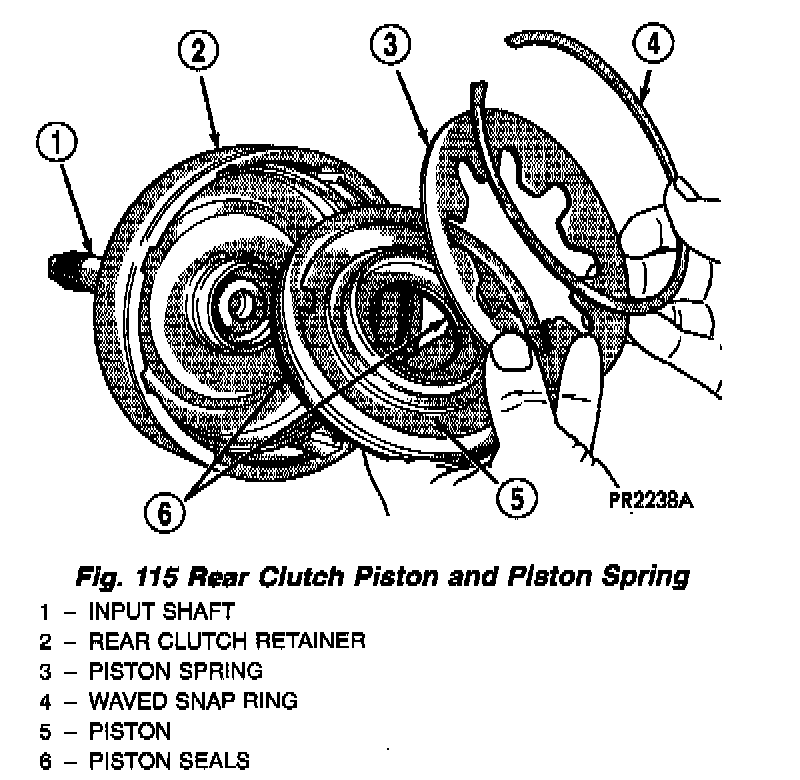

Fig. 115:

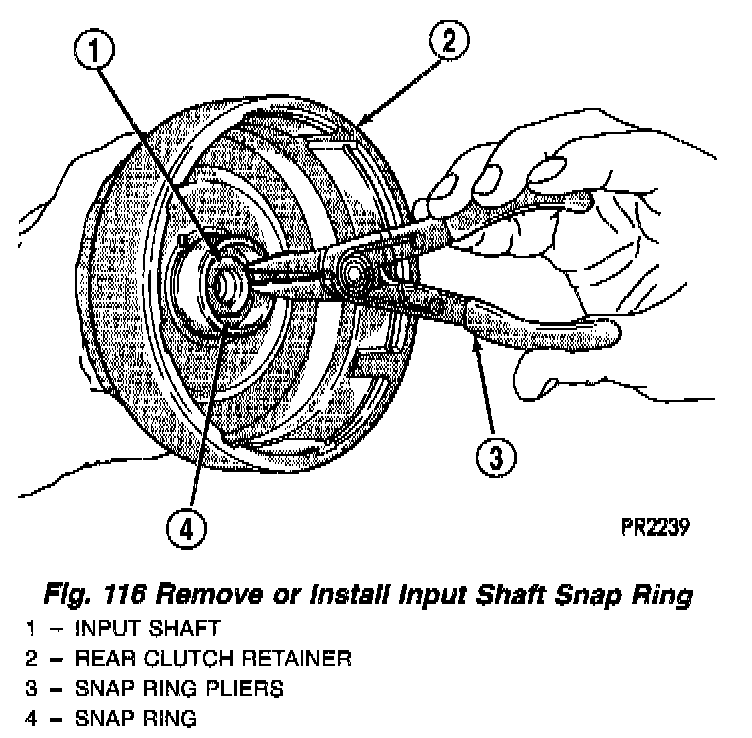

Fig. 116:

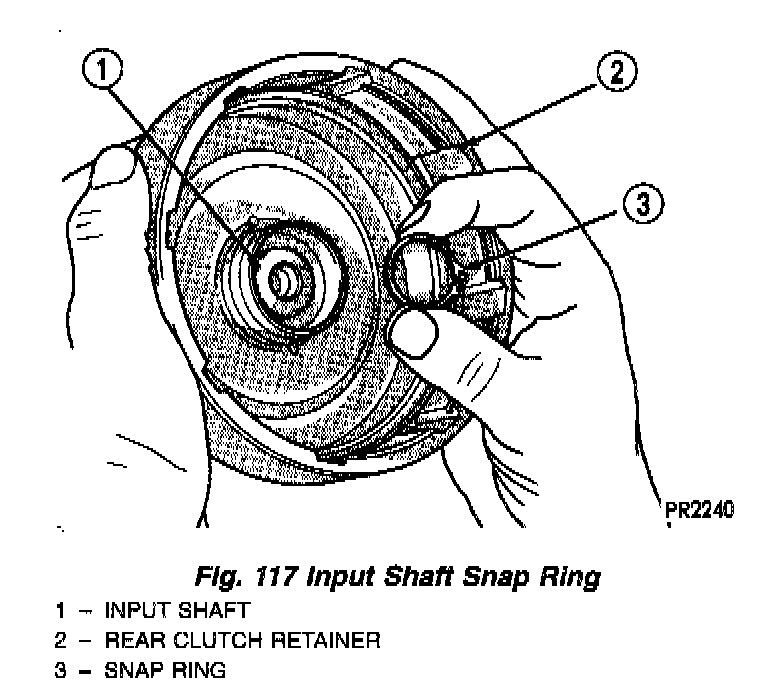

Fig. 117:

Press out input shaft, if required.

ASSEMBLY
To reassemble, reverse the above procedure.

MEASURING PLATE CLEARANCE

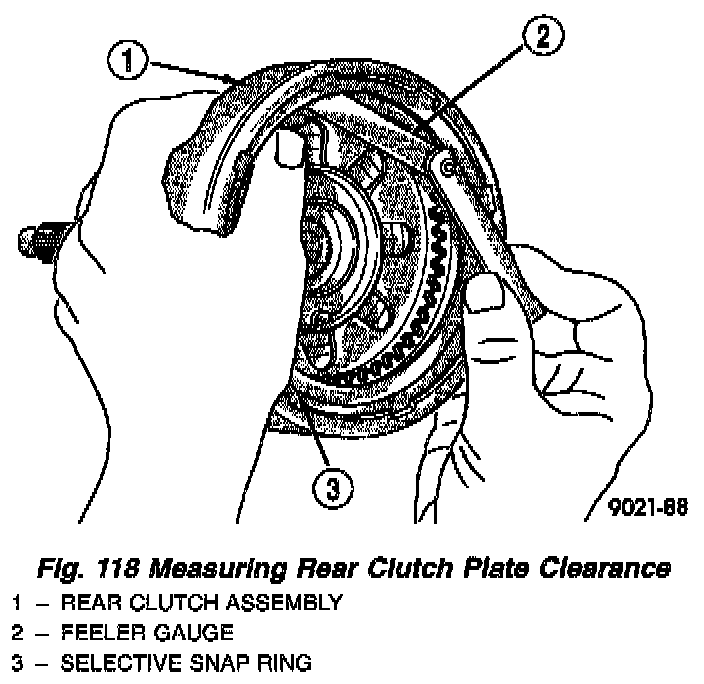

Fig. 118:
