Vehicle Lead Diagnosis and Correction

Use the following chart to diagnose a vehicle that has a complaint of a drift or lead condition. The use of this chart will help to determine if the lead condition is the result of a bad tire or is caused by the wheel alignment.

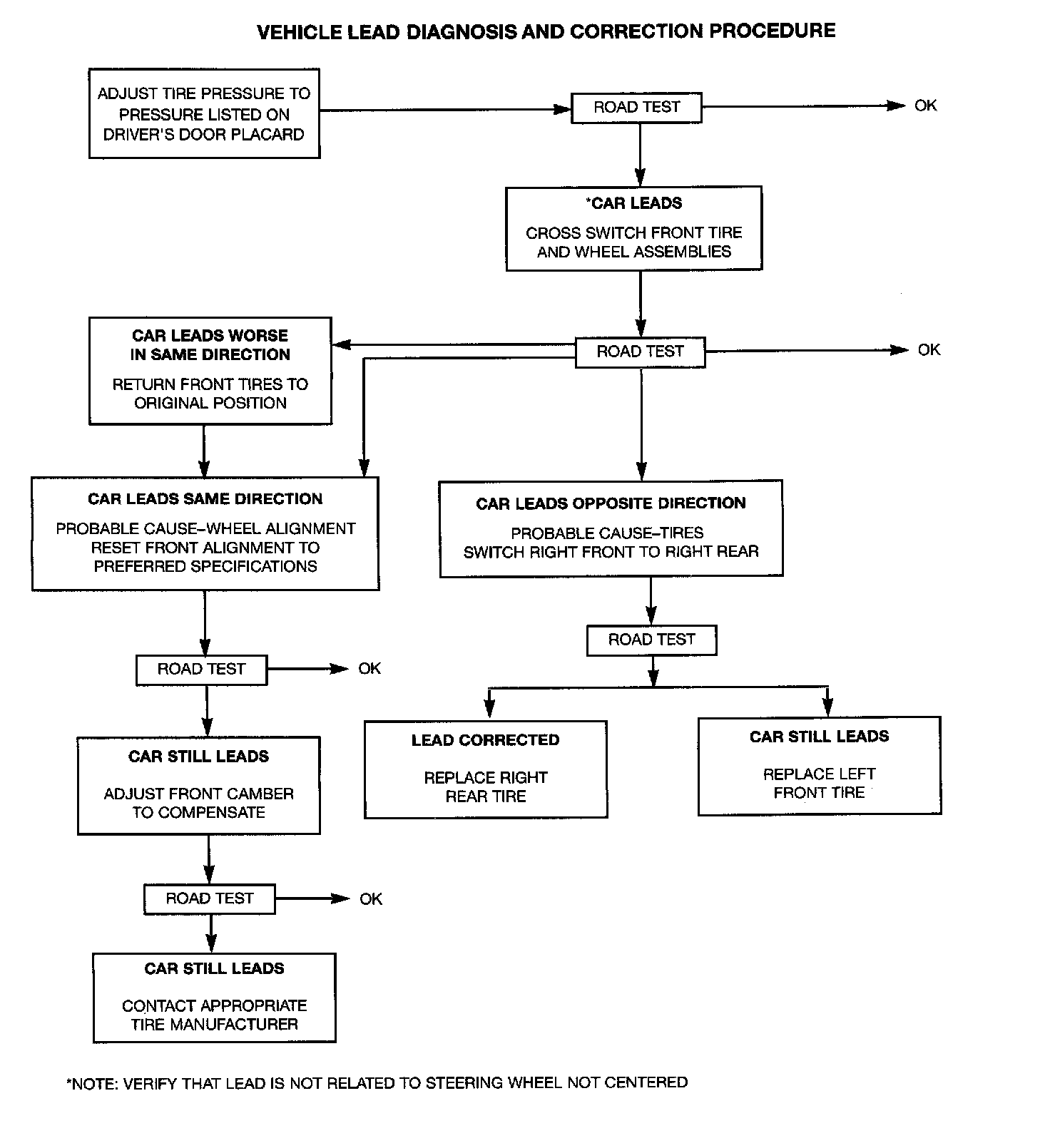

VEHICLE LEAD DIAGNOSIS AND CORRECTION CHART
