Air Bag: Locations

WARNING: NEVER DISASSEMBLE THE DRIVER OR PASSENGER AIRBAG MODULES, THERE ARE NO SERVICEABLE PARTS WITH IN THE MODULES.

Driver/Passenger Airbag Modules:

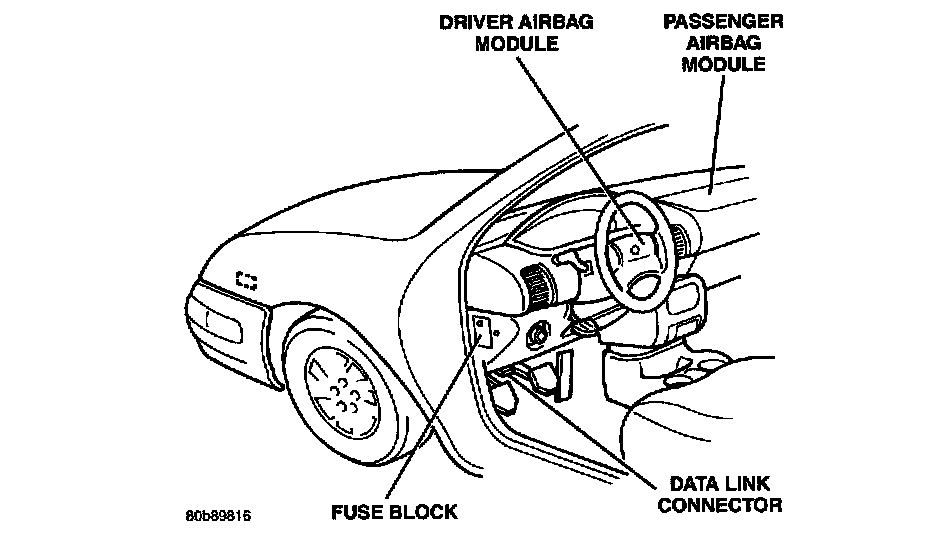

The Driver Airbag Module located on the steering wheel is the most visible part of the system. The airbag module contains a housing to which the cushion, inflator and cover are attached to.

The driver side inflator assembly is mounted from the back of the module housing. When supplied with the proper electrical signal the inflator assembly will produce a gas and discharge it directly into the cushion, A protective cover is fitted to the front of the Driver Airbag Module and forms a decorative cover in the center of the steering wheel. The Driver Airbag Module is mounted directly to the steering wheel.

The Passenger Airbag Module is located beneath the decorative cover of the instrument panel, facing the passenger seat.

The passenger inflator assembly is within the module housing. The module is mounted to the instrument panel retainer and support structure. When supplied with the proper electrical signal the inflator will produce a gas and discharge it directly into the cushion. A protective cover is fitted over the airbag module and forms a decorative cover.
