Air Cleaner Housing: Service and Repair

REMOVAL
1. Remove 5 screws from air cleaner element box lid.
2. Remove lid from air cleaner box.

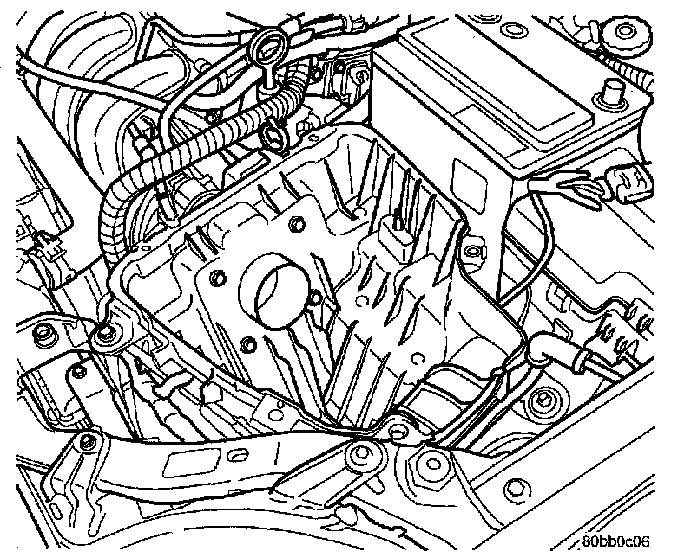

Air Cleaner Box:

3. Pull air cleaner up and out of air cleaner box.
4. Move air duct out of the way.
5. Remove the bolt and nut from the air cleaner box.
6. Remove wiring harness from the clips on the air cleaner box.
7. Remove the wiring clip from the front of the air cleaner box.
8. Remove the 4 bolts from the air cleaner box to throttle body.
9. Pull air cleaner box up and off of stud and battery tray and remove from vehicle.

INSTALLATION
1. Install air cleaner box. Make sure that it is on the battery tray tab in the back and on the stud on the side.
2. Install the bolts to the throttle body and tighten.
3. Install the nut and bolt for air cleaner box and tighten.
4. Install the wiring clip in the front of the air cleaner box.
5. Install the wiring harness into the clips on the side of the air cleaner box.

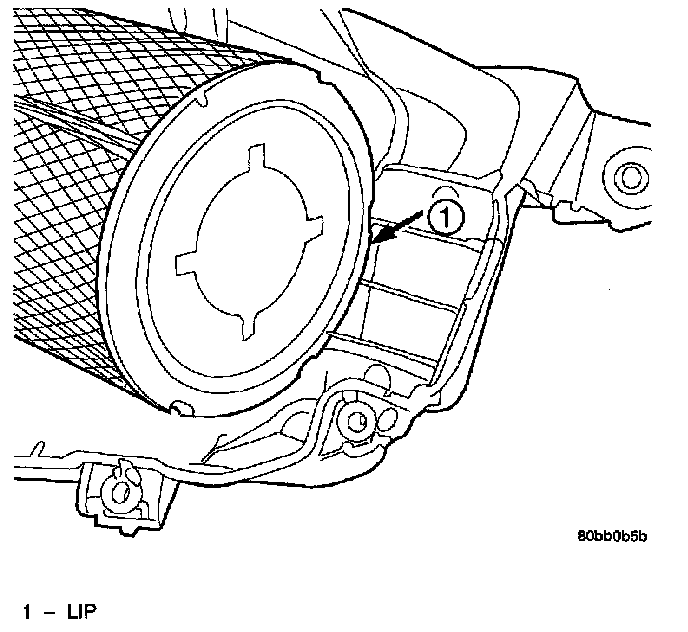

Air Cleaner Box Lip:

6. Install air cleaner element on to throttle body and push towards the throttle body and past lip in air cleaner box bottom.
7. Install air duct.
8. Install lid and tighten screws.
