Camshaft Position Sensor: Locations

Camshaft Position Sensor:

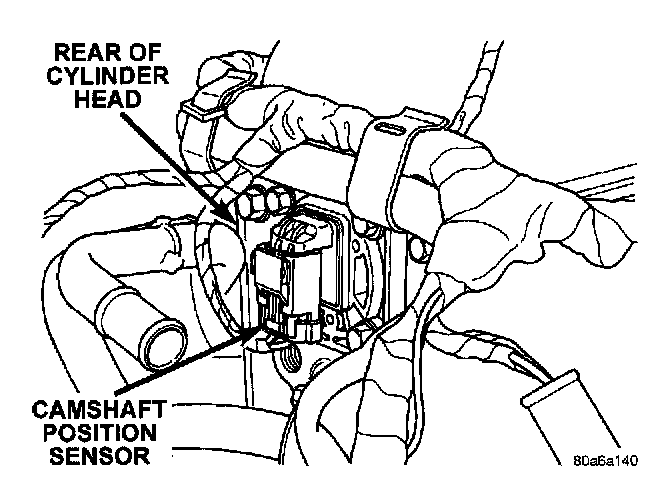

Camshaft Position Sensor (SOHC):




The Camshaft Position Sensor is mounted to the rear of the cylinder head.
