Fuel Injector Connector Replacement

REMOVAL

Fuel Injectors:

Remove/Install Injector Connector:

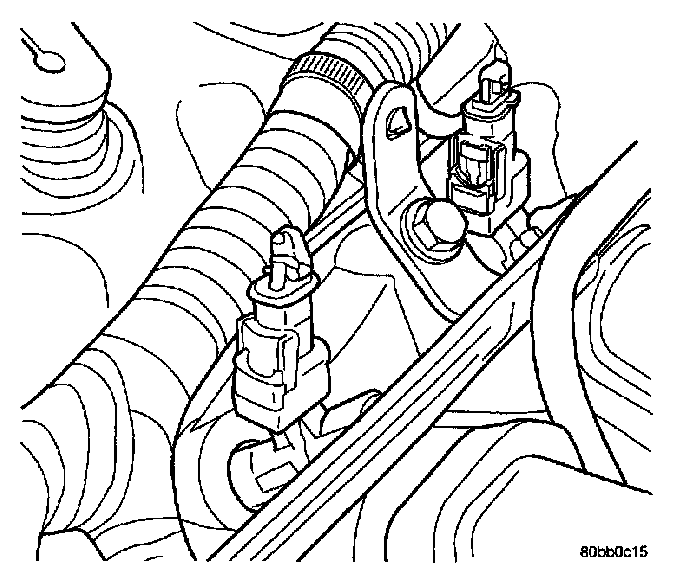

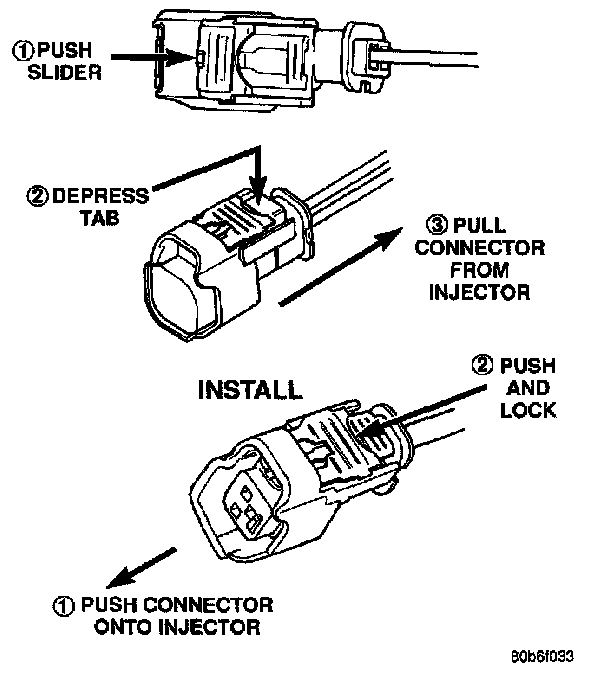

1. Disconnect electrical connectors at the fuel injectors. Pull the red colored slider away from injector (1). While pulling the slider, depress tab (2) and remove connector (3) from injector. The factory fuel injection wiring harness is numerically tagged (INJ 1, INJ 2, etc.) for injector position identification. If harness is not tagged, make note of wiring location before removal.

INSTALLATION
1. Connect electrical connectors at all fuel injectors. Push connector onto injector (1) and then push and lock red colored slider (2). Verify connector is locked to injector by lightly tugging on connector.
