Evaporative Emission Control Canister: Service and Repair

REMOVAL
1. Disconnect the negative battery cable.
2. Raise vehicle and support.

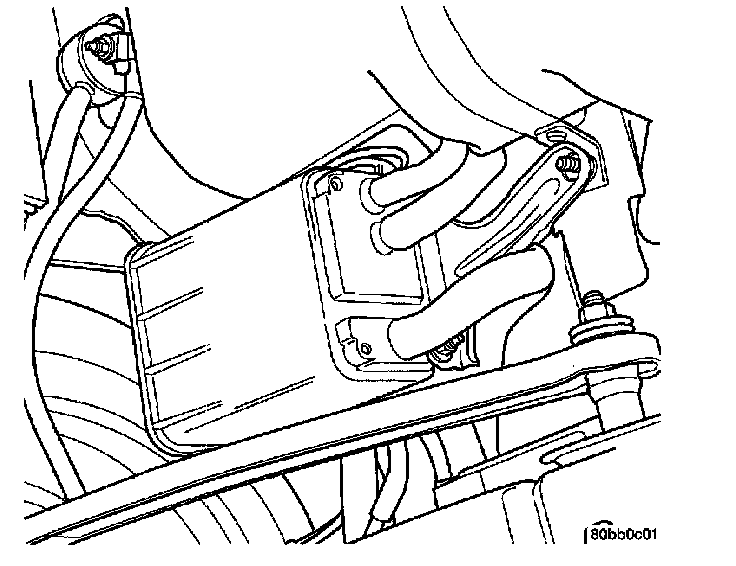

EVAP Canister:

3. Disconnect the hoses from the EVAP canister.

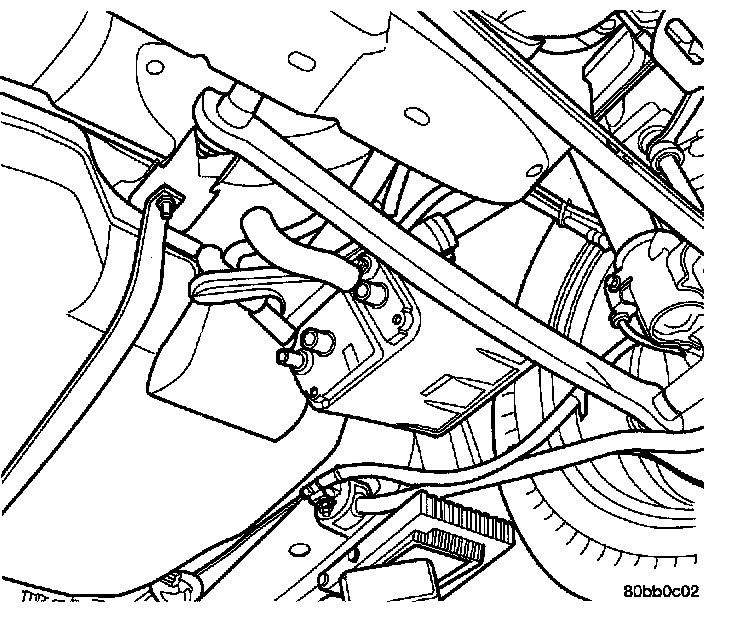

EVAP Bracket And Bracket:

4. Remove 1 nuts from the bracket of the EVAP canister.
5. Remove EVAP canister from bracket.

INSTALLATION
1. Install EVAP canister to Bracket.
2. Install 2 nuts to EVAP canister and bracket and tighten nuts to 6.7 Nm (60 in. lbs.).
3. Connect hoses.
4. Install EVAP canister and bracket to vehicle and tighten nut 22.4 Nm (250 in. lbs.).
5. Lower vehicle.
6. Connect negative battery cable.
