No Response From PCM With A No Start Condition

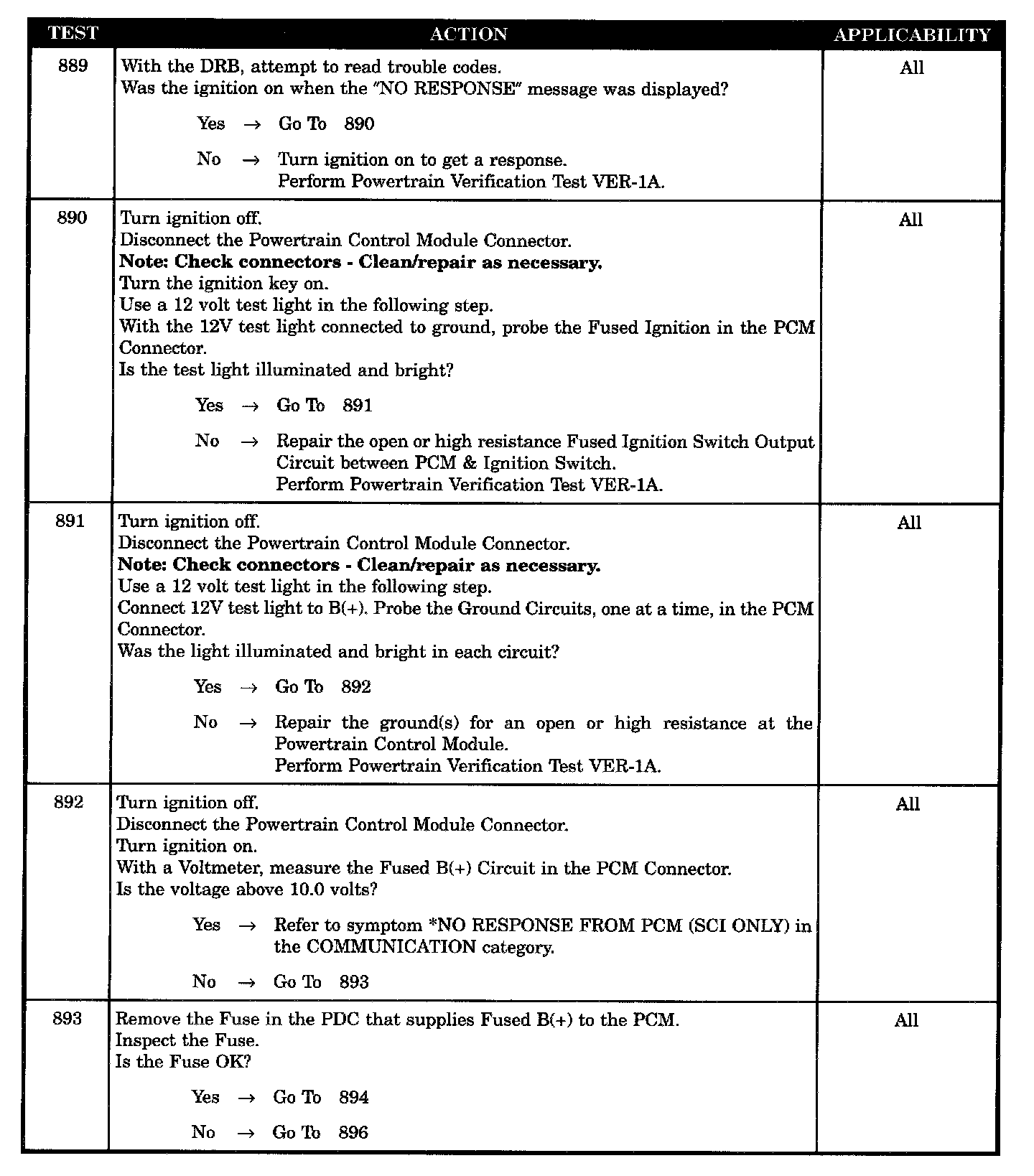

Tests 889 - 893:

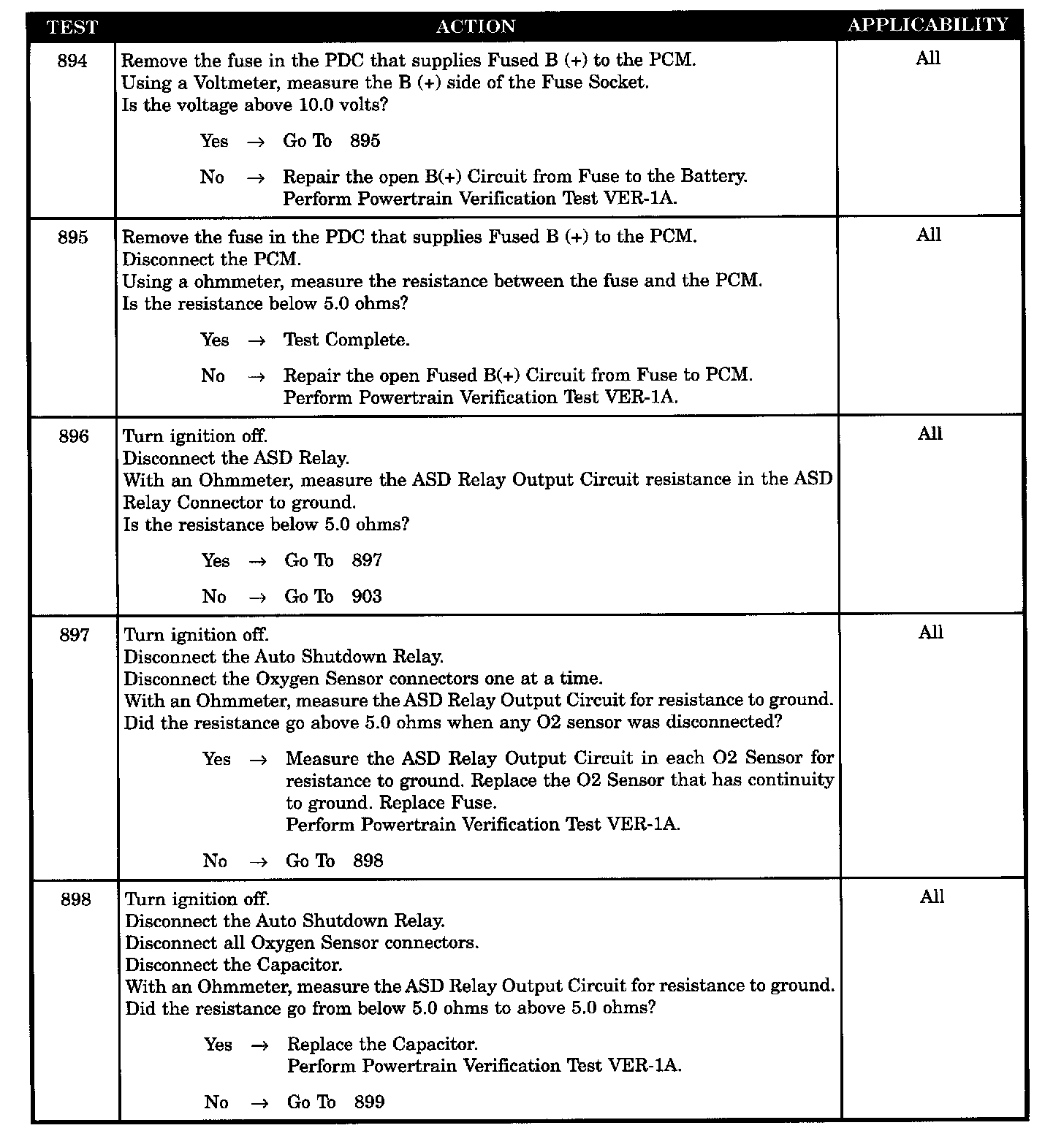

Tests 894 - 898:

Tests 899 - 903:

SYMPTOM
NO RESPONSE FROM PCM WITH A NO START CONDITION

POSSIBLE CAUSES
- Fused ignition switch output circuit open
- PCM ground circuit(s) open
- "NO RESPONSE" displayed from DRB
- ASD relay output circuit shorted to ground
- Capacitor defective
- Fuel injector(s) defective
- Generator shorted to ground
- Ignition coil defective
- O2 sensor(s) defective
- Fused B(+) circuit open between fuse/battery
- Fused B(+) circuit open between fuse/PCM
- Fused B(+) circuit shorted to ground
