Checking the MAP Sensor Operation
Checking the MAP Sensor Operation

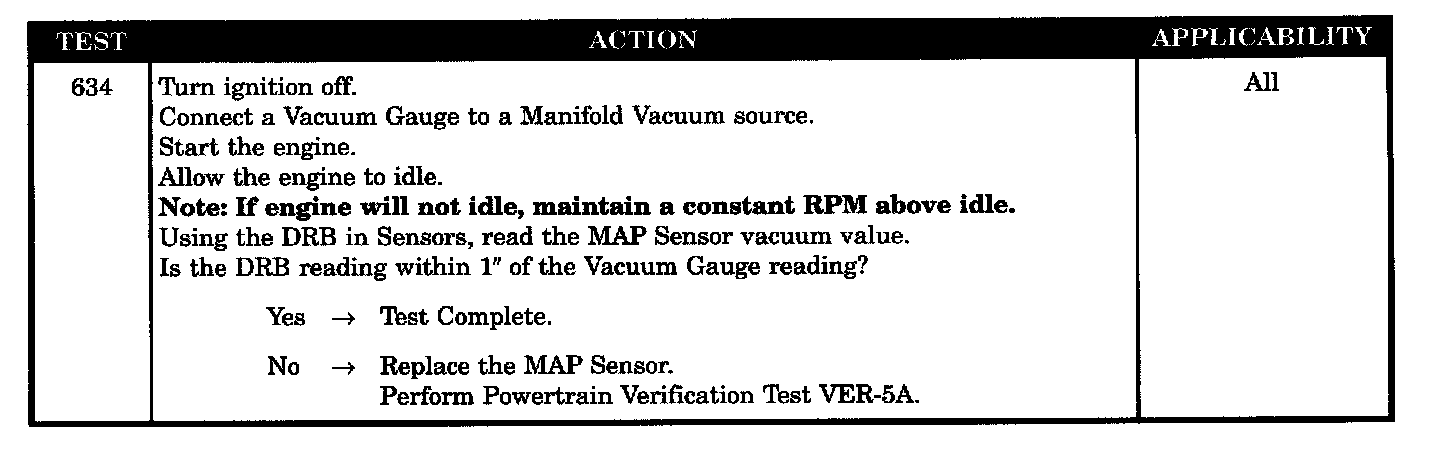

Test 634:
SYMPTOM
CHECKING
MAP SENSOR
OPERATION WITH NO DTC'S
POSSIBLE CAUSES
-
MAP sensor
defective (out of calibration)
