Checking the Engine Coolant Temperature Sensor Operation
Checking the Engine Coolant Temperature Sensor Operation

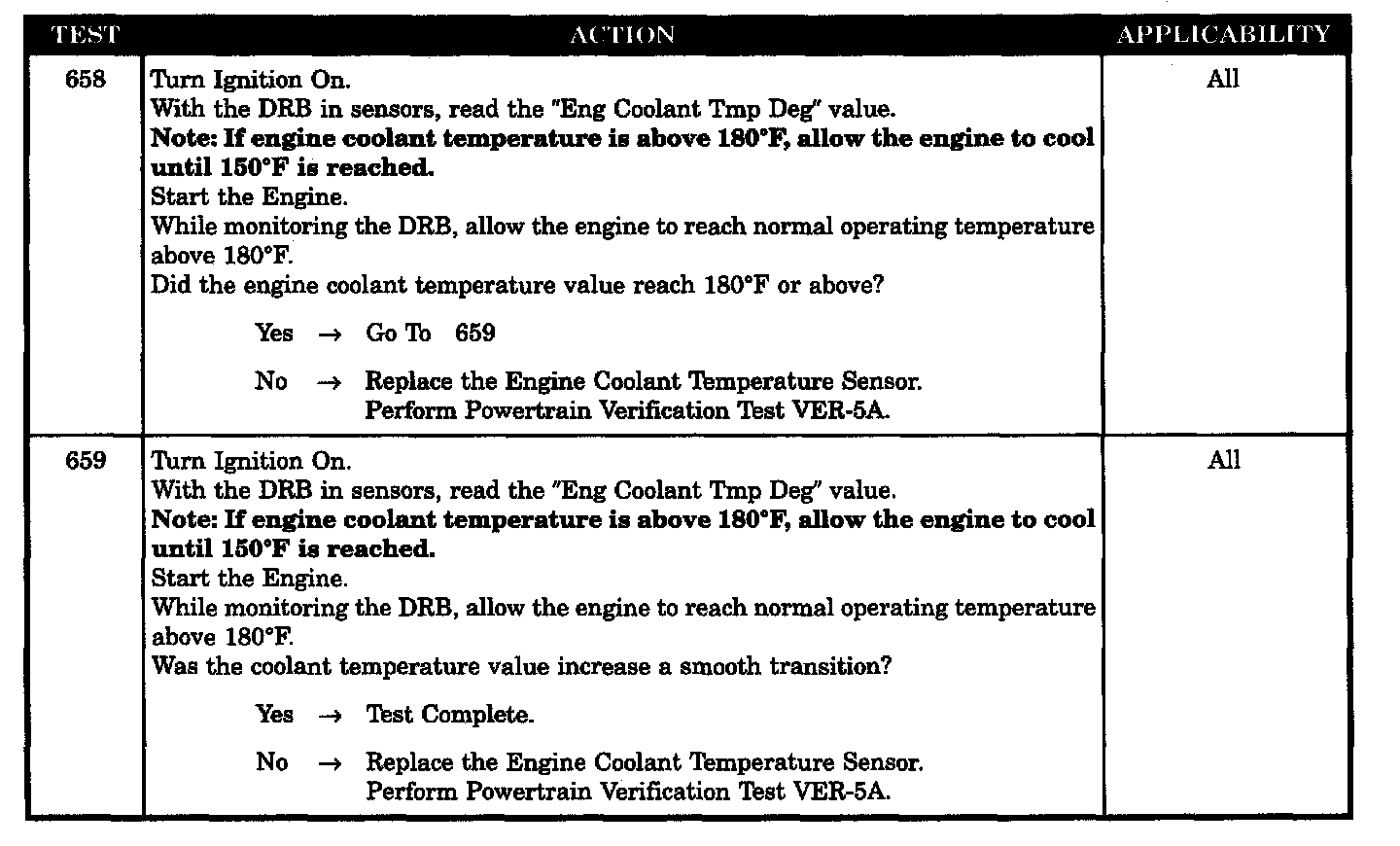

Tests 658 - 659:
SYMPTOM
CHECKING THE
ENGINE COOLANT TEMPERATURE SENSOR
POSSIBLE CAUSES
-
ECT sensor
defective (out of calibration)
