31TH Automatic Transaxle

REMOVAL

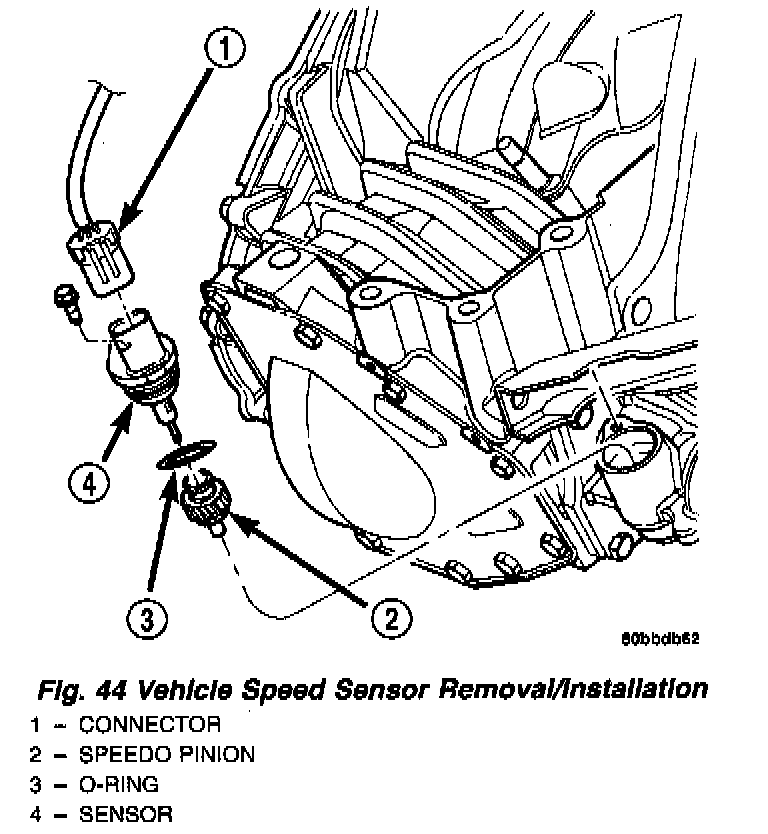

Fig. 44:

1. Remove harness connector from sensor. Be sure weather seal stays on harness connector.
2. Remove bolt securing the sensor in the extension housing.
3. Carefully pull sensor and pinion gear assembly out of extension housing.
4. Remove pinion gear from sensor.
5. Inspect pinion gear for damage (missing teeth, etc.) and replace as necessary.

NOTE: When removing vehicle speed sensor for any reason, a new O-ring MUST be used.

INSTALLATION
1. Install pinion gear to vehicle speed sensor as shown.
2. Install sensor to extension housing using a NEW O-ring.
3. Tighten bolt to 7 Nm (60 inch lbs.).
4. Connect harness connector.
