A/C Suction Hose/Line Replacement

WARNING: THE REFRIGERANT MUST BE RECOVERED BEFORE SERVICING ANY PART OF THE REFRIGERANT SYSTEMS.

REMOVAL
1. Using a R-134a refrigerant recovery machine, remove the refrigerant from A/C system.

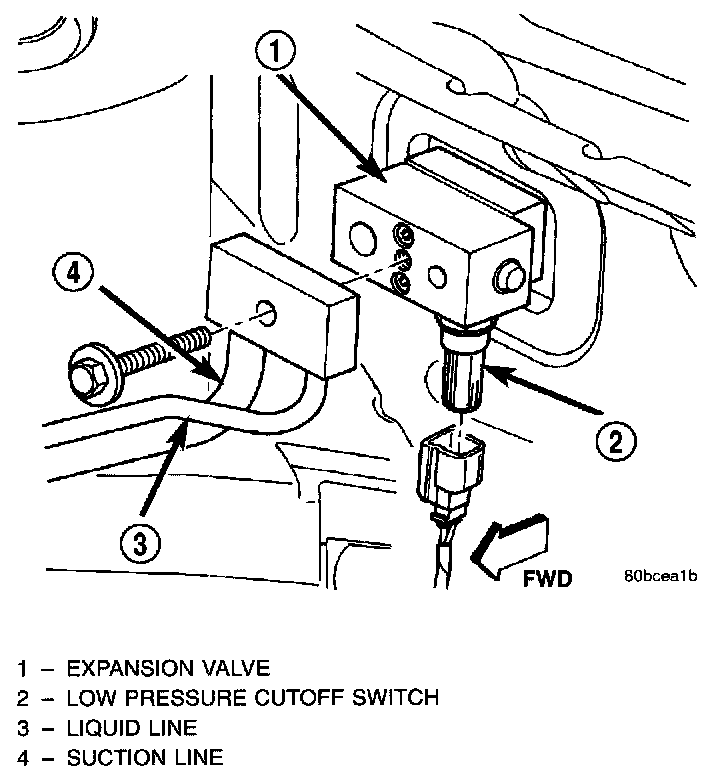

Expansion Valve Center Bolt:

2. Remove retaining bolt at expansion valve.
3. Remove line at expansion valve.

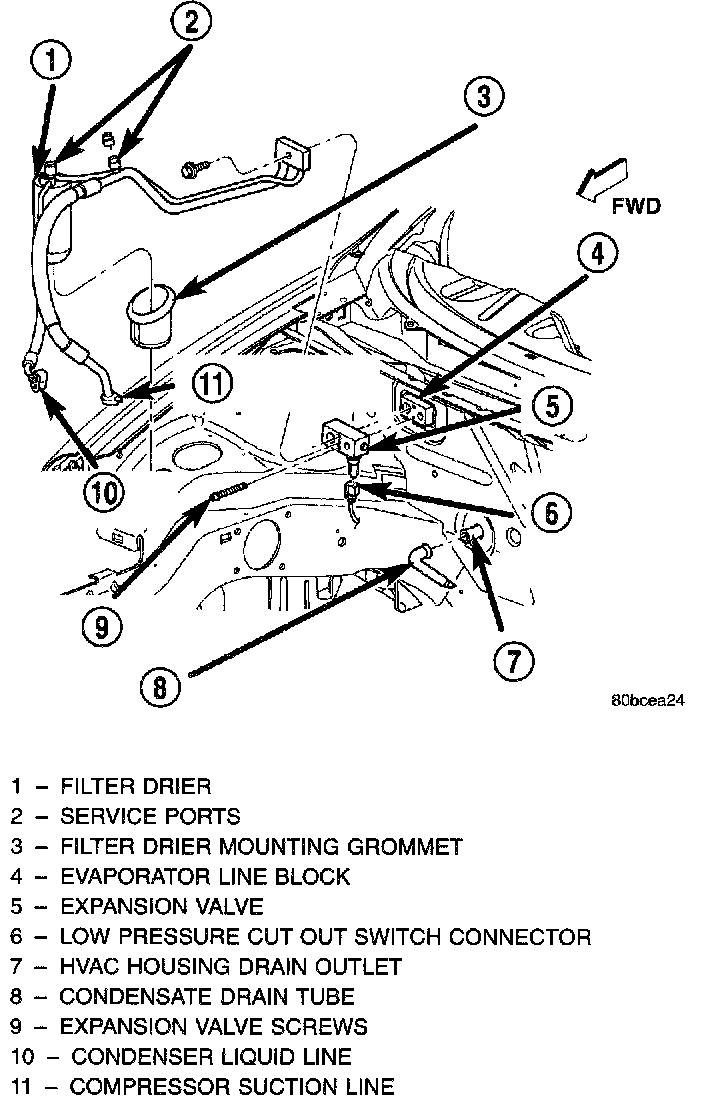

A/C Compressor Suction Line:

4. Remove line at compressor.

INSTALLATION
For installation, reverse the above procedures.
